Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB800/900
Document: 800+900MHz A032 mobile sign...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
Gain: |
70dB |
Output Power: |
20dBm |
Color: |
Gold Black White Customized |
Weight: |
4kg |
Packing Size: |
52x21x16cm |
Products Type: |
Signal Amplifier 4G, Repeater Mobile Signal Booster |
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
Gain: |
70dB |
Output Power: |
20dBm |
Color: |
Gold Black White Customized |
Weight: |
4kg |
Packing Size: |
52x21x16cm |
Products Type: |
Signal Amplifier 4G, Repeater Mobile Signal Booster |

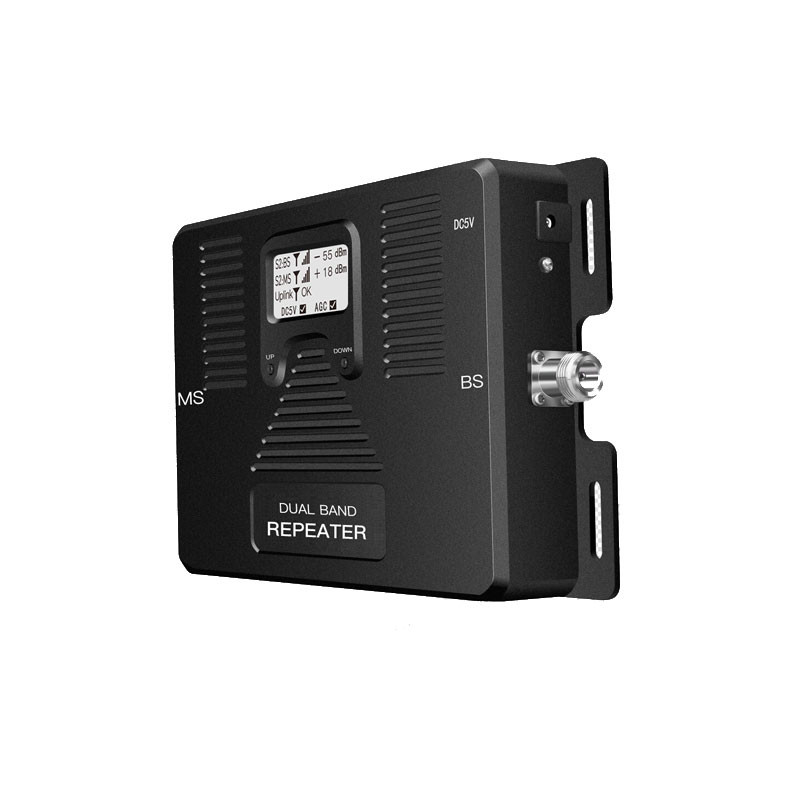

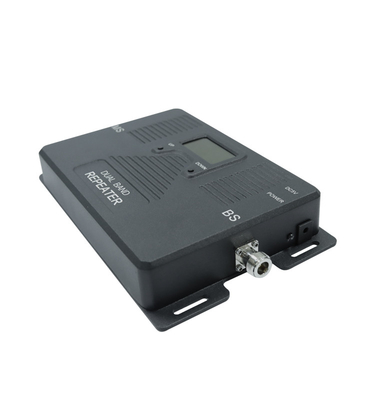

2G 4G 800MHz 900MHz Dual Band Signal Booster Full Intelligent Display
2G 4G 800 900MHz Cellular Dual Band Signal Booster Mobile Repeater Amplifier
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz, 890-915MHz |
|
Downlink |
791-821MHz, 935-960MHz |
|
|
Frequency Bandwidth |
30MHz&25MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+900MHz A032 mobile signal repeater.pdf
Product Description
Accessories
a. One dual band signal booster;
b. One indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
Technique supporting:
1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.
2. If cannot call out,please adjust the direction of outdoor antenna.
3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, ISO, ROHS and CCC certification,etc.
Q2: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q3: How long is warranty period?
A: The warranty is 12 months. And we offer 7*24 technical support
Q4: What's your device lifespan?
A: Normally our device can be used 5-10 years.
Q5: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q6: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
Q7: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
