Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-DB2100/2600
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+240---260+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
2100MHz Range: |
1920-1980MHz/2110-2170MHz |
2600MHz Range: |
2500-2570MHz/2620-2690MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
RF Connect Type: |
N/Female Connector |
Size: |
48x46x18cm，5kg |
Products Type: |
Signal Amplifier, Repetidor De Seal Celular 3g Y 4g |
2100MHz Range: |
1920-1980MHz/2110-2170MHz |
2600MHz Range: |
2500-2570MHz/2620-2690MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
RF Connect Type: |
N/Female Connector |
Size: |
48x46x18cm，5kg |
Products Type: |
Signal Amplifier, Repetidor De Seal Celular 3g Y 4g |

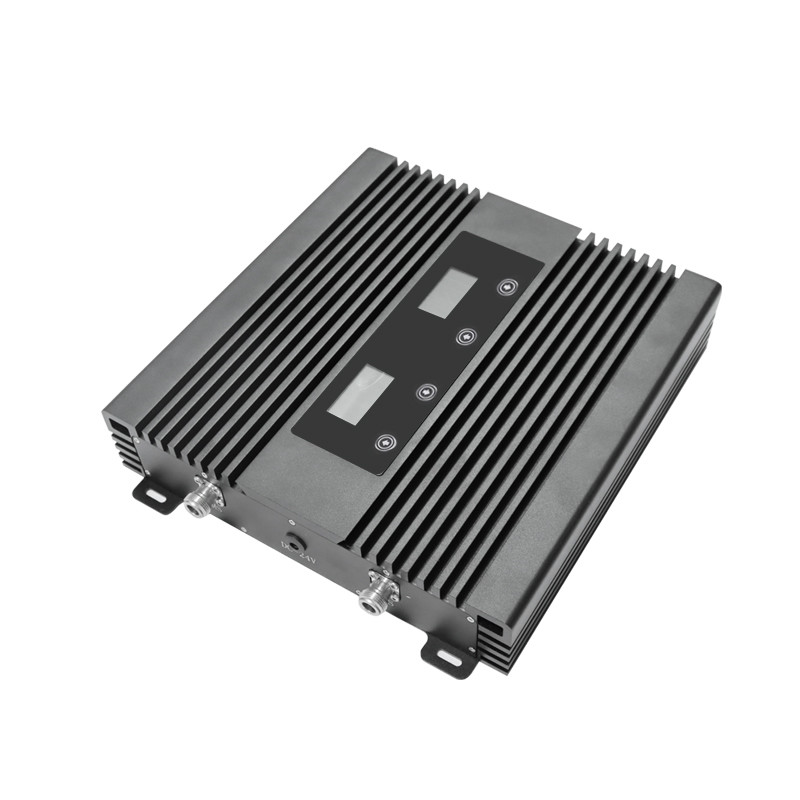

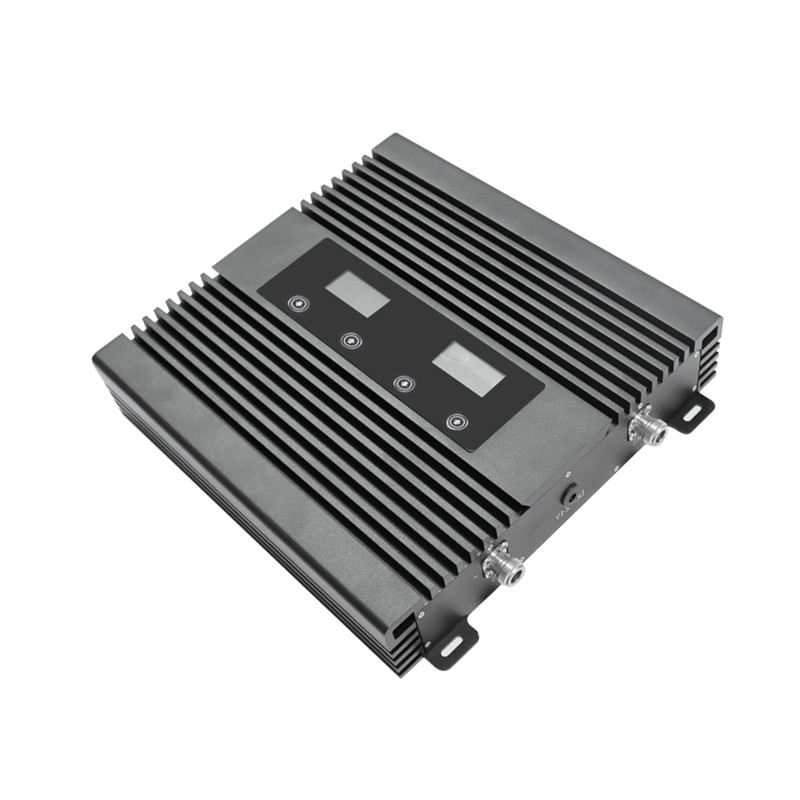

2100MHz 2600MHz Dual Band Mobile Signal Repeater Cell Phone Booster
Dual Band Mobile Signal Repeater 2100/2600MHz Cell Phone Booster Ampilifier 3G 4G 5G
A cell phone booster is a device that gathers the signal from the air, usually through an outdoor unit (such as an antenna), and “conveys” this signal to an indoor unit that is supposed to boost the signal. This conveying is done through a wired connection between the outdoor antenna and the indoor unit. The indoor cell phone booster, in turn, is provided with external power through a power outlet and has a complex circuitry that allows it to amplify the weak signal that has been received by the outdoor antenna. The indoor unit then sends the electrical signal to the indoor antenna that is directly connected to the unit, and the antenna converts the electrical signal to waves of the same frequency as were received by the outdoor unit. This, the frequency range of the waves does not change, and the cell phones do not notice any difference, except for a dramatic increase in the signal power that they are receiving.
Thus, as we can see, cell phone signal boosters are devices that literally boost the cell phone signal that you are receiving. This is done through some complex circuitry that works through the use of external power and boosts the signal to usable levels.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz,2500-2570MHz |
|
Downlink |
1805-1880MHz, 2620-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
65MHz&70MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Production Capacity |
10000/Per Month |
|
Further detail pls click here for downloading the products specification:
2100+2600 A012 Signal Repeater.pdf
Product Description
Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for both two wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Downtown areas of the cities, congested with many high-rise buildings are usually the weak or blind areas.
Do not open the booster; touch the module of booster, even not to open the cover of module to touch the electronic component, the components will be damaged due to electrostatic.
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
We are manufacturer, and have our own factory.
FAQ:
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
