Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB900/2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Gain: |
70dB |
Output Power: |
20dBm |
Color: |
Gold,Black,White And Customized |
Products Type: |
Signal Amplifier, Call Phone Signal Booster |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Gain: |
70dB |
Output Power: |
20dBm |
Color: |
Gold,Black,White And Customized |
Products Type: |
Signal Amplifier, Call Phone Signal Booster |

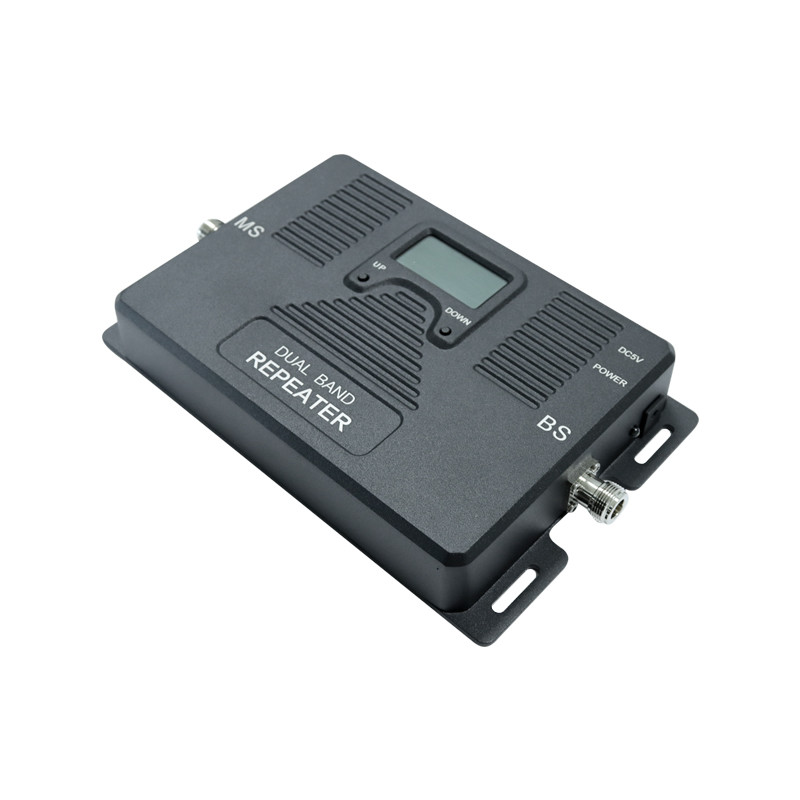

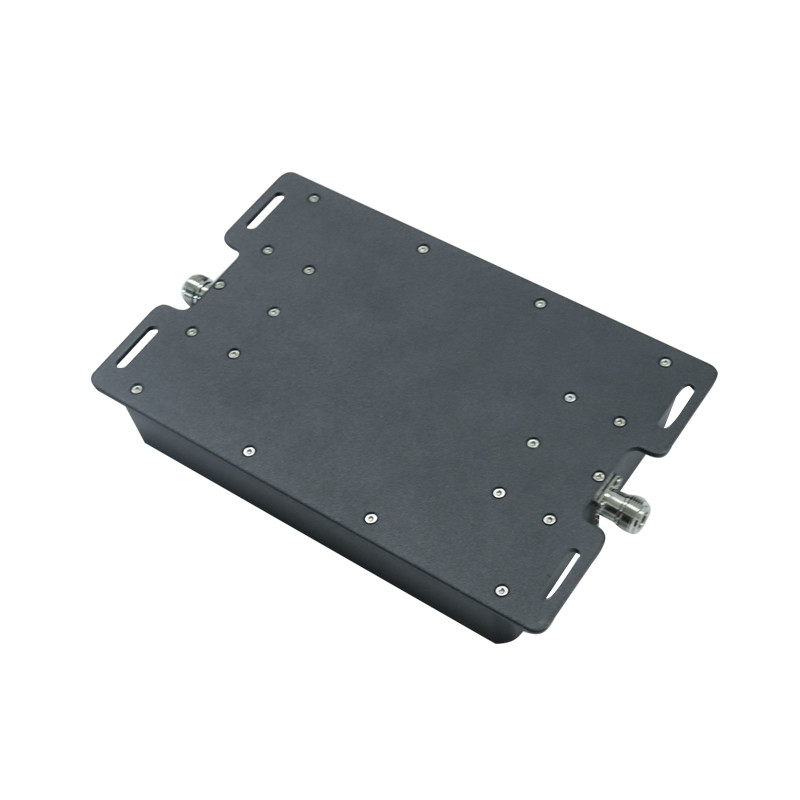

70dB Dual Band Signal Booster 900MHz 2100MHz Cellular Pico Repeater
Dual Band Signal Booster 2G 3G 4G 900 2100MHz Cellular Repeater Amplifier
General
The 900/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1920-1980MHz |
|
Downlink |
935-960MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+2100MHz A032 mobile signal repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Network support : GSM 2G + WCDMA 3/4G
Gain : 70dB
Power Supply : AC110V～220V; DC+5V/2A
Connector Type : N-female connector
Accessories
a. One dual band signal booster;
b. One indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
Our service:
1. We have long business relationship shipping agent, we can provide you best price, best service based on your destination.
2. We provide best after service, if there is any doublt after you get products, we try our best to service for you.
3. We provide warranty is 3 years.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
