Dual Band Signal Booster
>
2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster

2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster

Brand Name: ATNJ
Model Number: JS-DB850/2100
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
824-849MHz / 869-894MHz
2100MHz Frequency Range:
1920-1980MHz / 2110-2170MHz
Color:
Gold, Black, White And Customized
Gain:
70dBi
Power:
17-20dBm
Products Type:
3G Signal Repeater, Cell Phone Signal Scrambler
Supply Ability:
1000+unit+per day.
High Light:

850MHz Dual Band Range Extender

,

70dB Dual Band Range Extender

,

70dB 2100MHz Signal Booster

Product Description

2G 3G 4G 70dB Gain Dual Band Range Extender 850MHz 2100MHz Booster



Dual Band Signal Booster 2G 3G 4G 850 2100MHz 70dB Gain Repeater Amplifier



General


The 850/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1920-1980MHz

Downlink

869-894MHz, 2110-2170MHz

Frequency Bandwidth

25MHz&60MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+2100MHz A032 mobile signal repeater.pdf



Selling Point



Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with the weak or bad signal and to amplify these low signals in order to provide you with the communication suitable for you.



1) The outside antenna receives the signal from the nearest mobile base station.

2) The outside antenna sends the received signal through the coax cable to the installed Repeater.

3) The repeater accepts the low signal and improves it.

4) The improved signal goes to the inside antenna through the connection coax cable.

5) The inside antenna send the improved good signal to your mobile phone.







Product Description



With ALC AGC Function

Can control gain automatically. Avoid base station interference



Network support : CDMA 2/3G + WCDMA 3/4G


Gain : 70dB
Power Supply : AC110V~220V; DC+5V/2A
Connector Type : N - female connector





How does it work?



1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.

2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.





2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 02G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 12G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 22G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 32G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 4

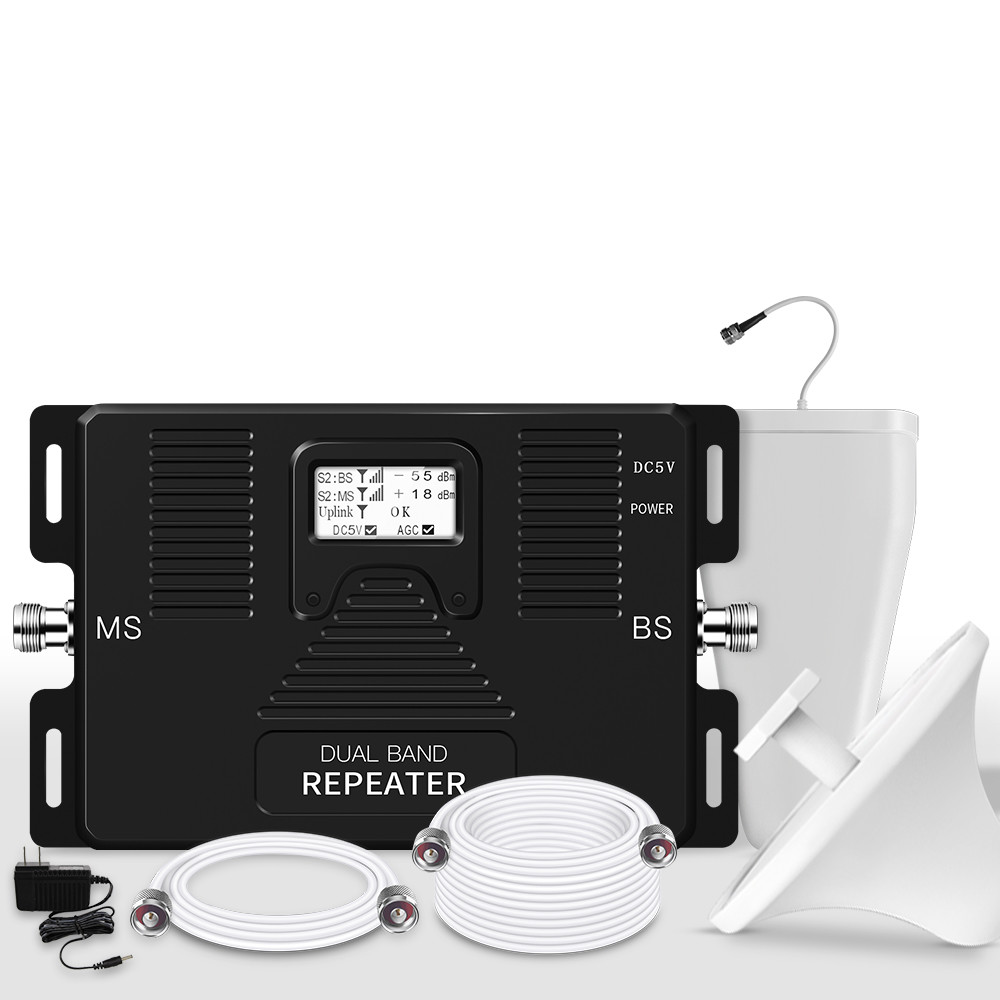

Accessories



a. One dual band signal booster;



b. One indoor antenna;



c. One outdoor antenna;



d. 20meter cable and 5meter cable;



e. User manual;



f. Power adapter.





2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 5

2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 6

2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 7



Technique supporting:



1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.



2. If cannot call out,please adjust the direction of outdoor antenna.



3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.





2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 8





It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.





2G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 92G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 102G 3G 4G 70dB Dual Band Range Extender 850MHz 2100MHz Booster 11





FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. Does the signal booster work have radiation or not ?

Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


5. Can this mobile signal repeater create a signal where there is no cell signal before?

The mobile signal repeater cannot produce a signal, only amplify a weak one.
