Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
832-862MHz，791-821MHz |
Color: |
Black ,White Customized |
Interface:: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Products Name: |
Cellular Amplifier |
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
832-862MHz，791-821MHz |
Color: |
Black ,White Customized |
Interface:: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Products Name: |
Cellular Amplifier |
800MHz LTE 4G Cell Phone Signal Booster CE ROHS CCC Certificates
800MHz LTE Mobile Signal Booster Amplifier Cellular Signal Repeater 4G
Model No :AS-800
Can control gain automatically. Avoid base station interference
(Band 20) 800MHz -- Uplink frequency: 832-862MHz/Downlink frequency :791-821MHz
Network support : 4G, Network
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz |
|
Downlink |
791-821MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Origin |
Shenzhen,CN |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
LTE 800MHz B07 Signal Repeater.pdf

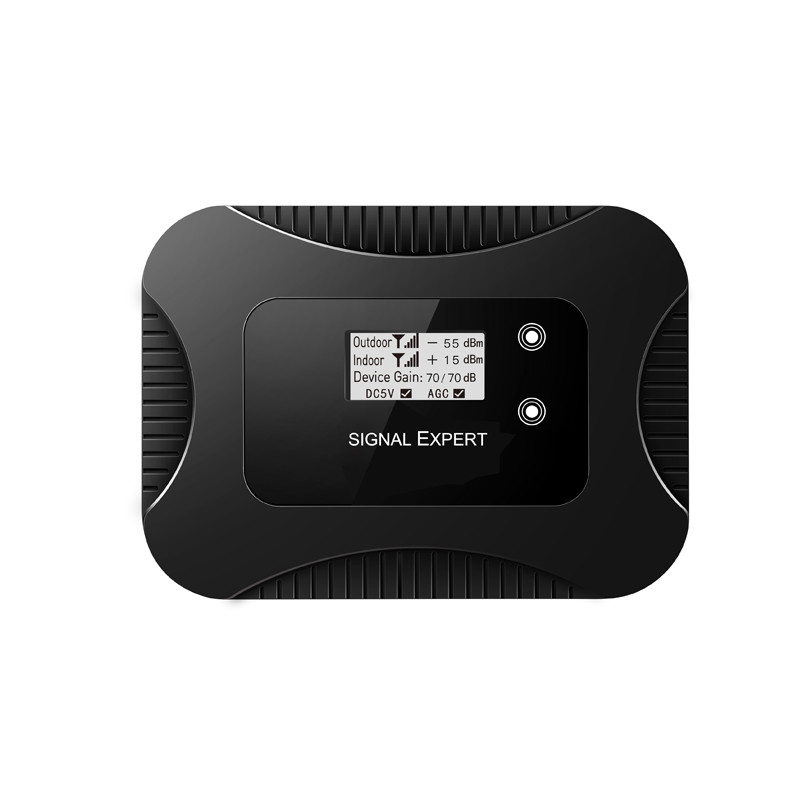

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.

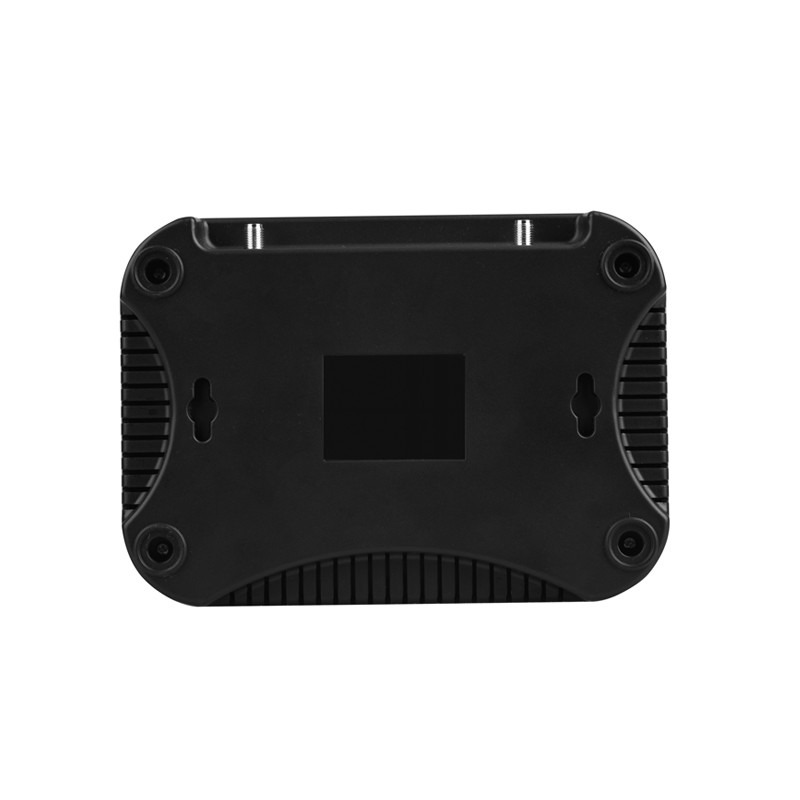

Product Images
FAQ
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
