| Brand Name: | ATNJ |
| Model Number: | AS-AWS |
| MOQ: | 5Pcs |
| Price: | USD+40---49+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

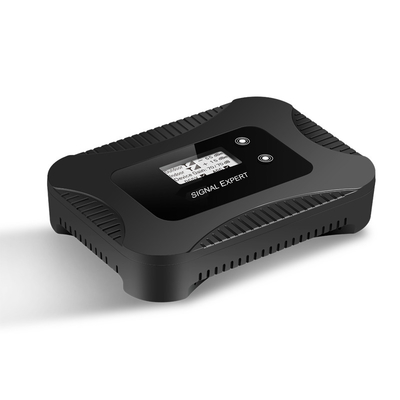

AWS 1700MHz 2100MHz 4G Signal Repeater with CE ROHS Certificates
Model No :AS-AWS 1700/2100
Can control gain automatically. Avoid base station interference
(Band 4) 1700/2100MHz -- Uplink frequency: 1710-1755MHz/Downlink frequency :2110-2155MHz
Network support : 3G/4G, Calling
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.

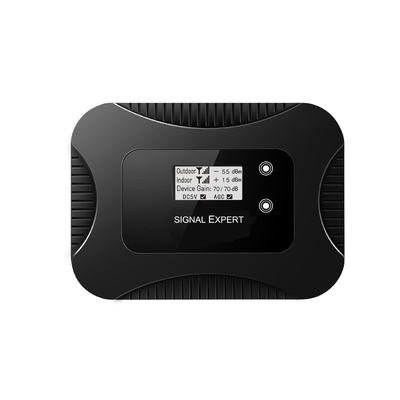

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1755MHz |
|
Downlink |
2110-2155MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Trademark |
ATNJ |
|
Further detail pls click here for downloading the products specification:
AWS 1700MHz B07 Signal Repeater.pdf
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
5. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
6. Please feel free to contact us if any other questions.
|
