Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-G3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Booster Gain: |
70dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz，935-960MHz |
Connector Type: |
SMA/F Connector |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
25MHz |
Support Network: |
2G 3G, Voice |
Warranty: |
3 Years |
Booster Gain: |
70dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz，935-960MHz |
Connector Type: |
SMA/F Connector |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
25MHz |
Support Network: |
2G 3G, Voice |
Warranty: |
3 Years |
2G 3G Voice 900MHz GSM Signal Repeater Amplifier IP40 Protection
Signal Booster Repeater 900MHz GSM Cell Phone Amplifier
Product Detail:
1, Intelligent to guide the installation with LCD.
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling.
4, Automatic alarm when installation mistake and provide the according solution.
5, Automatic adjust the system gain to avoid the repeater self-excitation.
6, initiative reminding when the device was damaged.
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-G3 |
|||
|
Frenquecy Range |
UplinK:890~915MHz Downlink:935~960MHz |
|||
|
Working System |
GSM 900MHz |
|||
|
Gain |
70dB |
|||
|
Device Output Power |
17-20dBm |
|||
|
Bandwidth |
Wide Band |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC:90~265V; 50/60Hz DC:9V 3A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA Female |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP40 |
|||
|
LCD Intelligent Guide |
Done |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
GSM 900MHz B07 Signal Repeater.pdf

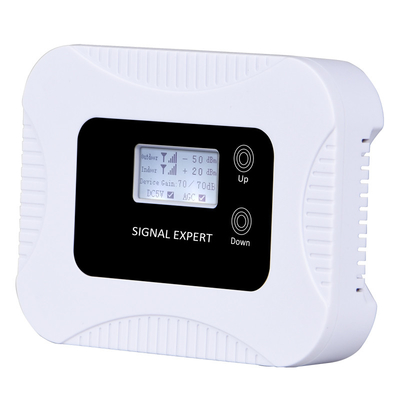

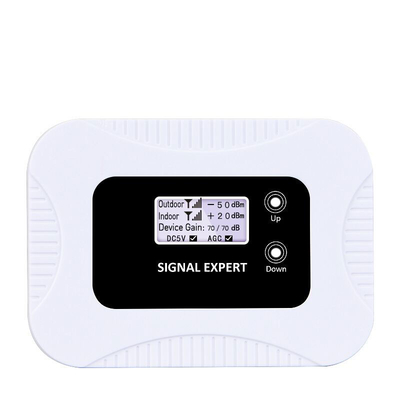

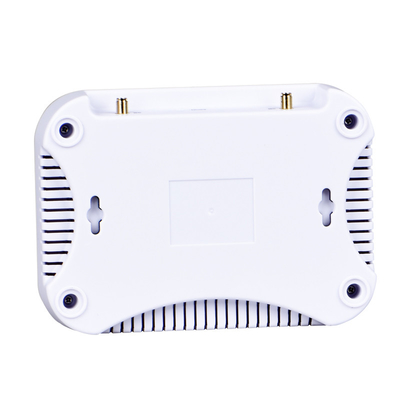

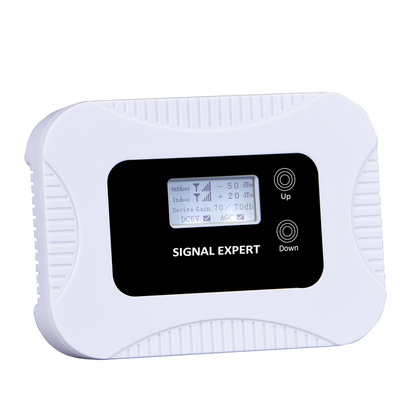

Product Pictures
