Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB850/1900/P
Document: 850+1900MHz C03 Mobile Sign...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1900MHz Frequency Range: |
1850-1910MHz / 1930-1990MHz |
Gain: |
70dB |
Output Power: |
20±3dBm |
Color: |
Black And Gold ,Customized |
Products Type: |
Mobile Network Booster, Brouilleur De Signal |
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1900MHz Frequency Range: |
1850-1910MHz / 1930-1990MHz |
Gain: |
70dB |
Output Power: |
20±3dBm |
Color: |
Black And Gold ,Customized |
Products Type: |
Mobile Network Booster, Brouilleur De Signal |
CDMA850 PCS1900 Mobile Phone Network Booster Dual Band 70dB Gain
Dual Band Repeater 2G 3G 4G CDMA850 PCS1900 70dB Gain Signal Booster Amplifier For Home
With the help of this mobile phone repeater for home you´ll improve the quality of GSM calls. Some providers also use these frequencies for 3G and 4G mobile Internet, so, in this case, the signal repeater will improve 2G/3G&4G network as well.
Among other distinctive and helpful features of signal repeater, 2G/3G & 4G there are:

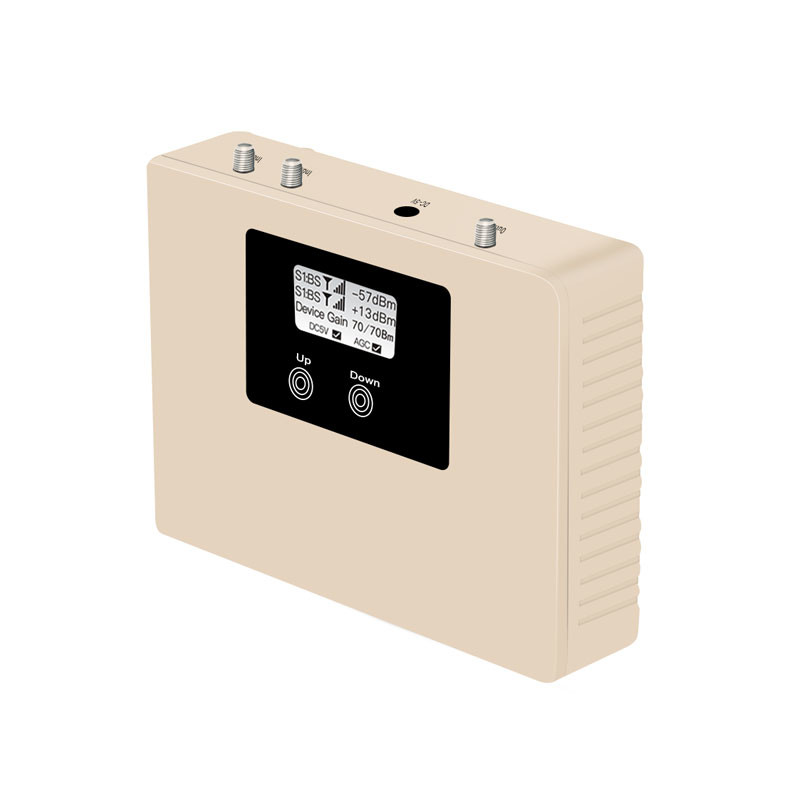

LCD screen showing outdoor signal and output value. The system will guide you through installation process and show you error tips with solutions.
Automatic adjustment of gain and signal basing on the individual signal reception conditions.
Sleep mode helping to save energy when you do not use mobile 2G/3G/ 4G Internet.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1850-1910MHz |
|
Downlink |
869-894MHz, 1930-1990MHz |
|
|
Frequency Bandwidth |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1900MHz C03 Mobile Signal Repeater.pdf
Product Description
2G 3G 4G Signal Booster (B5 850MHz + B2 1900MHz)
Gain : 70db
Max power : 20dbm
ALC functon
The ALC function can prevent excessive signal output and cause interference.
Installation Approaches
1. Fix up outdoor antenna reception on housetop and point to signal tower;

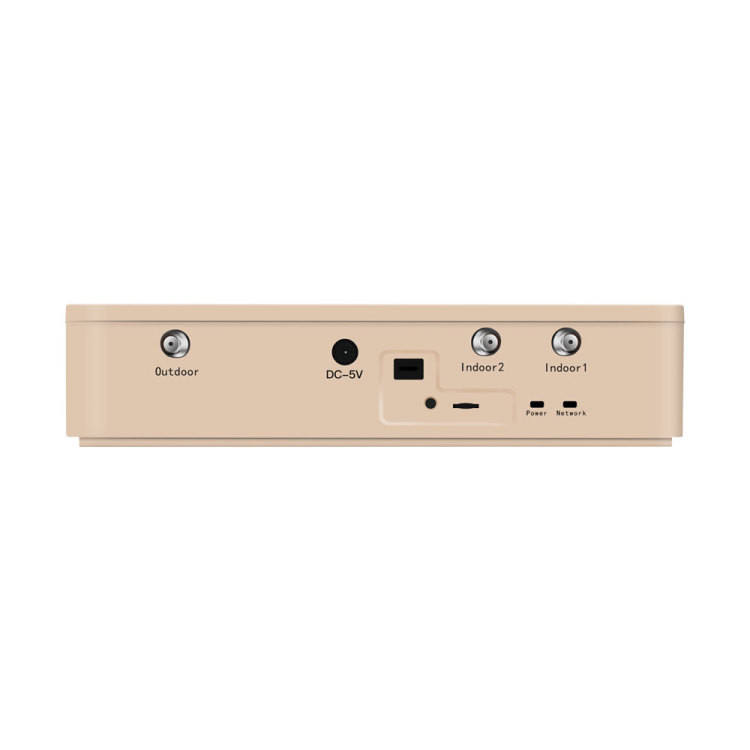

2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.

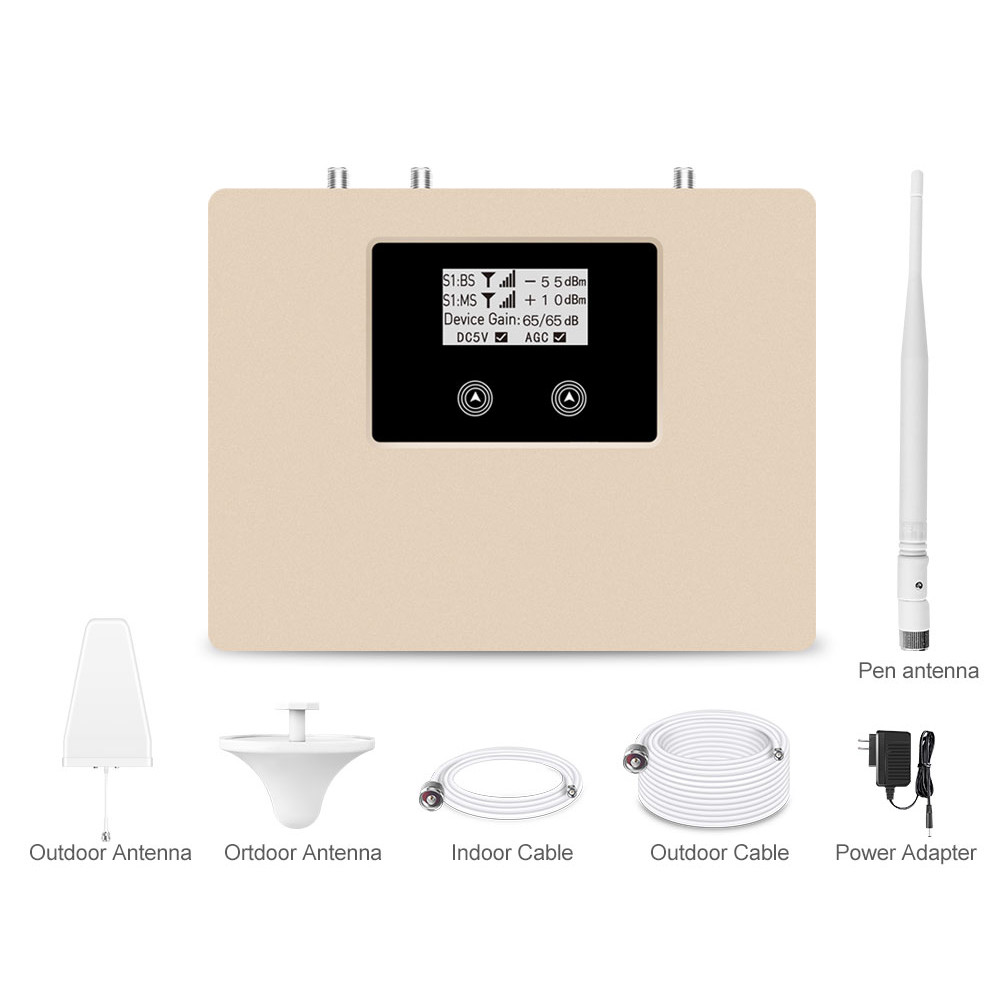

Packaging Including:
1. Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Omni antenna
5. Indoor Ceiling antenna
5. 5 meters cable
6. 20 meters cable
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
Q1: After installed booster signal not be very good, indoor signal coverage very small.
A:
1. Adjust outdoor antenna's location and direction.
2. Check whether cable connected well.
3. Put more higher receiving antenna's position, which can received more good signal.
4. Change another bigger power booster.
5. Change another high gain receiving antenna.
Q2: Cellphone signal full bar,but communication quality bad.
A: Too closer distance of indoor and outdoor antenna, need more separation far distance away between antennas.
Q3. Work good for long time, suddenly signal bad
A:
1. Check outdoor cable connectors whether flooding water.
2. Check power lights whether working normal.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
