| Brand Name: | ATNJ |
| Model Number: | JS-DB800/EGSM900/P |
| MOQ: | 5Pcs |
| Price: | USD+75---90+kit |
| Packaging Details: | Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

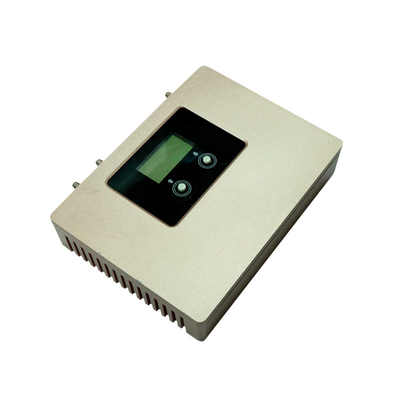

LTE800 EGSM900 Mobile Phone Signal Repeater Customized Gold Color
70dB Gain Dual Band Repeater LTE800 EGSM900 Signal Booster 2G 4G Cellular Amplifier
Selling Point
Signal booster can be used for both phone calls and LTE network at the same time. There is no limit to the number of mobile devices that can benefit from the improved internet.
Not only improves mobile signals, but also reduces excessive radiation from mobile devices in areas with weak GSM/4G signal.
It has been confirmed that every signal booster is 100% safe for users, mobile devices and the environment. The absolute safety of the devices is confirmed by the international safety certificates CE and RoHS.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz, 880-915MHz |
|
Downlink |
791-821MHz, 925-960MHz |
|
|
Frequency Bandwidth |
30MHz&35MHz |
|
|
Gain |
70dB±3 |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm±3 |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+E900MHz C03 Mobile Signal Repeater.pdf
Product Description
ALC functon
The ALC function can prevent excessive signal output and cause interference.
Gain : 70db
Max power : 20dbm
Technique supporting:
1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.
2. If cannot call out,please adjust the direction of outdoor antenna.
3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.
Packaging Including:
1. Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Omni antenna
5. Indoor Ceiling antenna
6. 5 meters cable
7. 20 meters cable
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
|
