Product Details:
|
| 800MHz Frequency Range: | 832-862MHz / 791-821MHz | 1800MHz Frequency Range: | 1710-1785MHz / 1805-1880MHz |
|---|---|---|---|
| Color: | Black Or Gold Or Customized | AGC Intelligent Function: | Done,31dB @ 1dB/ Step |
| ALC MGC Intelligent Function: | Done | Products Type: | Best 4g Signal Booster Application, Atnj Powerful Dcs 1800mhz Cellular Signal |
| High Light: | 20dBm Dual Band Repeater,DCS LTE Dual Band Repeater,20dBm Cellular Network Booster |
||
Output Power 20dBm Dual Band Repeater DCS LTE Cellular Network Booster
Dual Band Repeater 800 / 1800MHz DCS LTE 2G / 4G Cellular Network Mobile Booster Amplifier
General
The 800/1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz, 1710-1785MHz |
|
Downlink |
791-821MHz, 1805-1880MHz |
|
|
Frequency Bandwidth |
30MHz&75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|

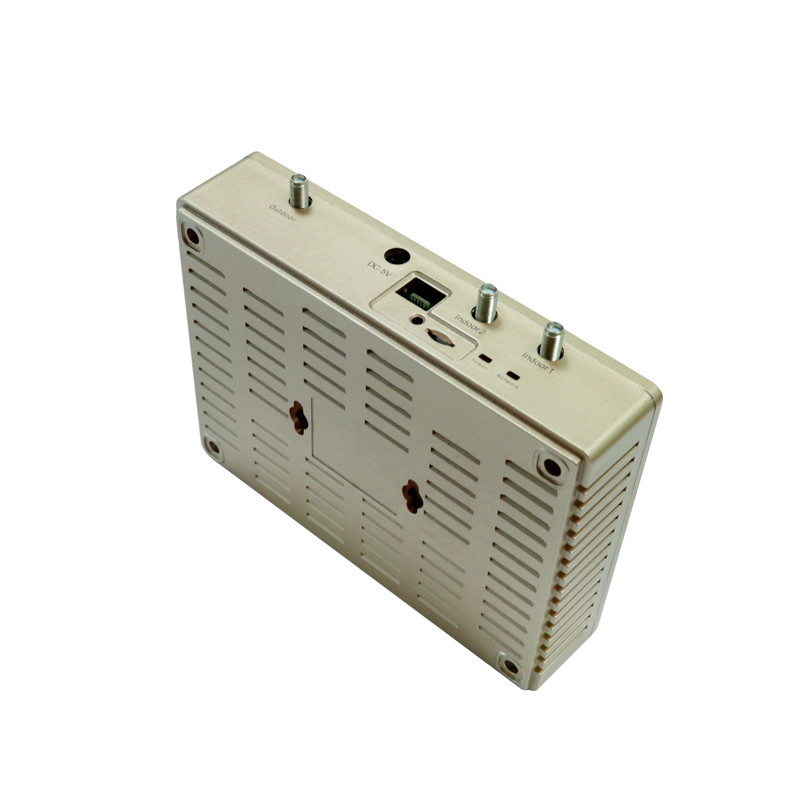

RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+1800MHz C03 Mobile Signal Repeater.pdf
Selling Point
The advantages of this DCS LTE amplifier include:
LCD Display.
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep mode.
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic adjustment of operation.
The DCS LTE amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.

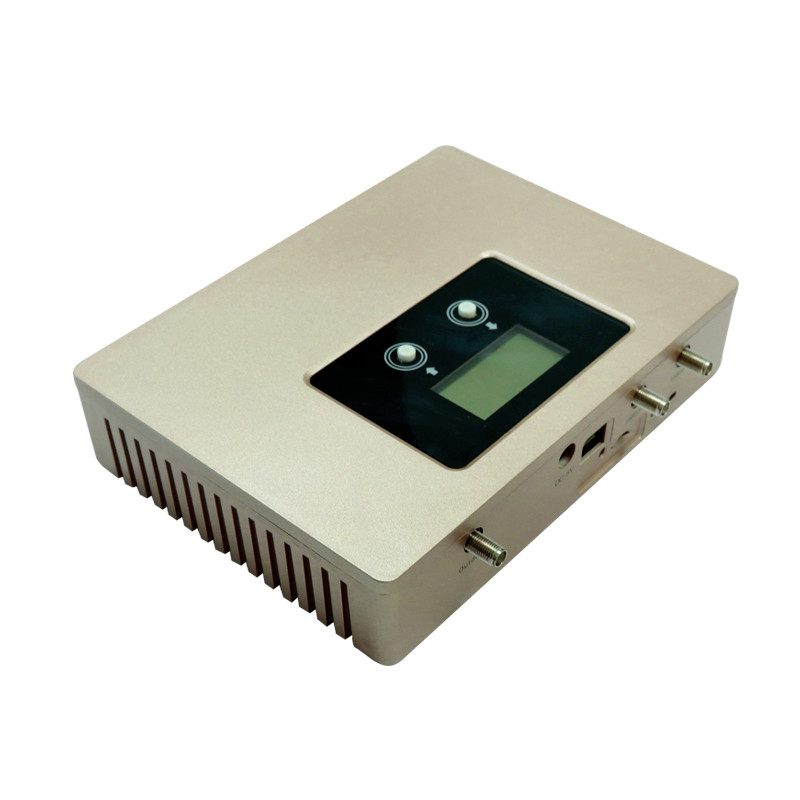

Compact size and high-tech design.
The signal amplifier has a small size, light weight, advanced design and intelligent LCD display. It fits perfectly into any interior.
The DCS + LTE amplifier is absolutely safe to use. International CE and RoHS certifications confirm its high quality, safety and reliability.
Product Description
ALC functon
The ALC function can prevent excessive signal output and cause interference.
The installation process itself is quite simple, requires no special technical knowledge and usually takes about 15-20 minutes.
Packaging Including:
1. LTE 800mhz DCS 1800 Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Omni antenna
5. Indoor Ceiling antenna
6. 5 meters cable
7. 20 meters cable
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
2. Can I install a signal repeater myself?
Absolutely. There is no technical expertise required to install your mobile signal repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your repeater.
3. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
4. The cable supplied from outdoor antenna to the signal booster is 15m in your recommended kit. Can a longer cable be used without affecting performance?
The cable length is optional. We can supply cable length per your requirement. But unfortunately, longer cable do effect on the performance, for bigger gain loss during signal transmission.
5. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
