Product Details:
|
| 850MHz Frequency Range: | 824-849MHz / 869-894MHz | 1700MHz Frequency Range: | 1710-1755MHz / 2110-2155MHz |
|---|---|---|---|
| Gain: | 70dB | Output Power: | 17±3dBm |
| Color: | Black And Gold Or Customized | Products Type: | 3g Signal Booster, Mobile Network Booster 2g 3g 4g Lte 5g |
| High Light: | 1700MHz Cell Phone Signal Repeater,850MHz Signal Booster,CDMA 850MHz Cell Phone Signal Repeater |
||
CDMA 850MHz AWS 1700MHz Cell Phone Signal Repeater Amplifier With LCD
CDMA AWS 2G 3G 4G Cellular Phone Signal Booster Amplifier 850 / 1700MHz Dual Band Repeater
2G 3G 4G signal booster (B5 850MHz + B4 AWS)
Gain : 70db
Max power : 20dbm
Connector Type : SMA - female connector
Technical Specifications
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 824-849MHz, 1710-1755MHz |
| Downlink | 869-894MHz, 2110-2155MHz | |
| Frequency Bandwidth | 25MHz&45MHz | |
| Gain | 70dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 20±3dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | SMA(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Dimensions | 165*130*40 (mm) | |
| Weight | ≤0.8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Further detail pls click here for downloading the products specification:
850+1700MHz C03 Mobile Signal Repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Installation Approaches
1. Fix up outdoor antenna reception on housetop and point to signal tower;

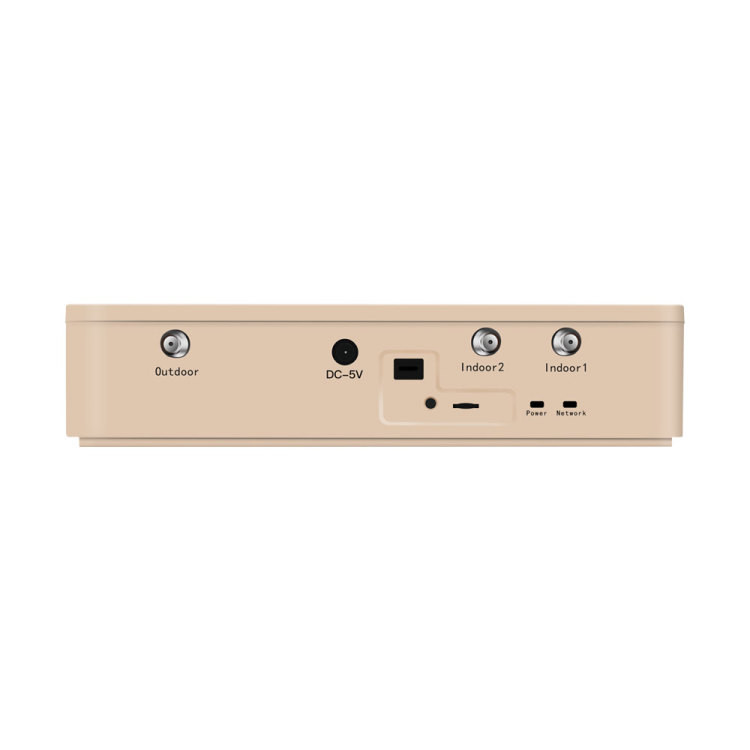

2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.
Technique supporting:
1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.
2. If cannot call out,please adjust the direction of outdoor antenna.
3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.

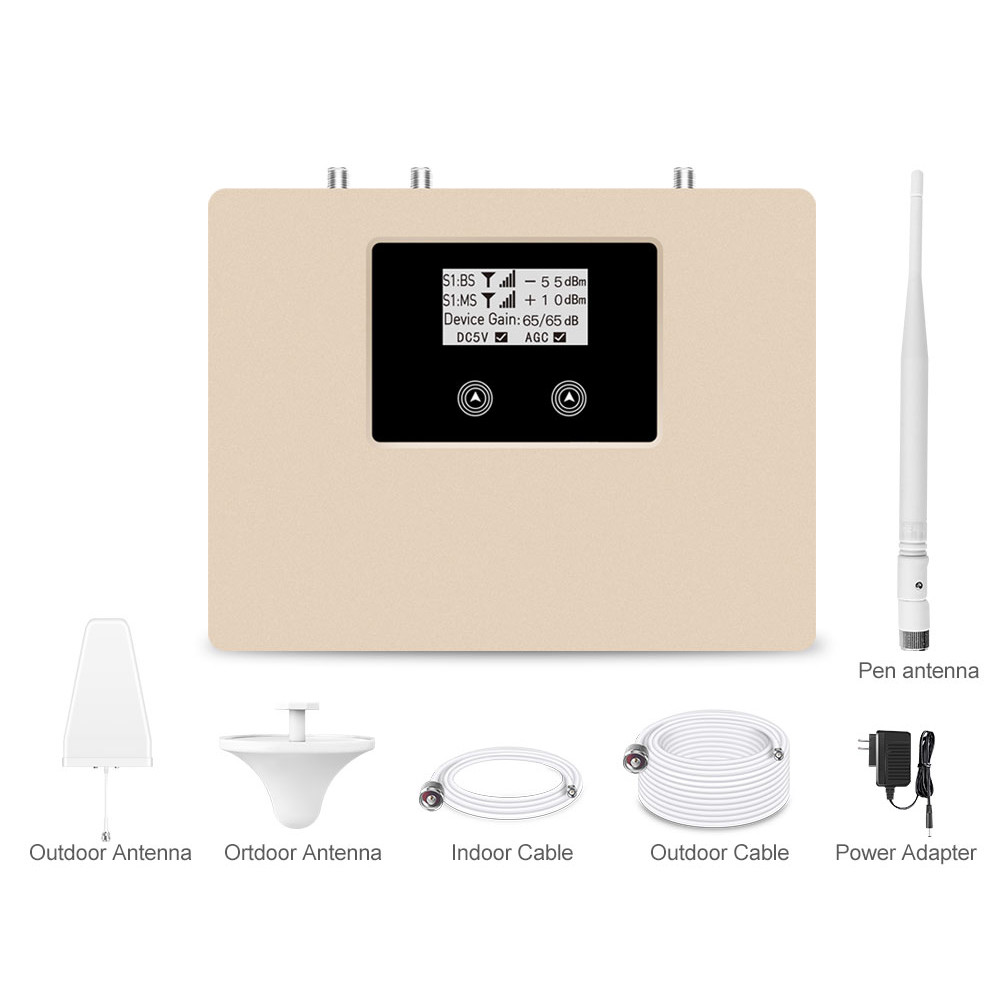

Accessories
a. Dual band signal booster;
b. Indoor omni antenna;
c. Indoor Ceiling antenna;
d. Outdoor log-periodic antenna;
e. Outdoor 20meter cable
f. Indoor 5meter cable;
g. Power adapter.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
