Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-007-W3
Document: WCDMA 2100MHz B07 Signal Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
1920-1980MHz，2110-2170MHz |
Color: |
Black ,White Customized |
Interface:: |
SMA/F |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Products Type: |
Signal Booster, Bts Gsm Booster |
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
1920-1980MHz，2110-2170MHz |
Color: |
Black ,White Customized |
Interface:: |
SMA/F |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Products Type: |
Signal Booster, Bts Gsm Booster |
70dB Gain 4G Range Extender 2100MHz Mobile Network Signal Booster
Mobile Signal Booster Repeater Amplifier 2100MHz Mobile Network
Model No AS-007-W3

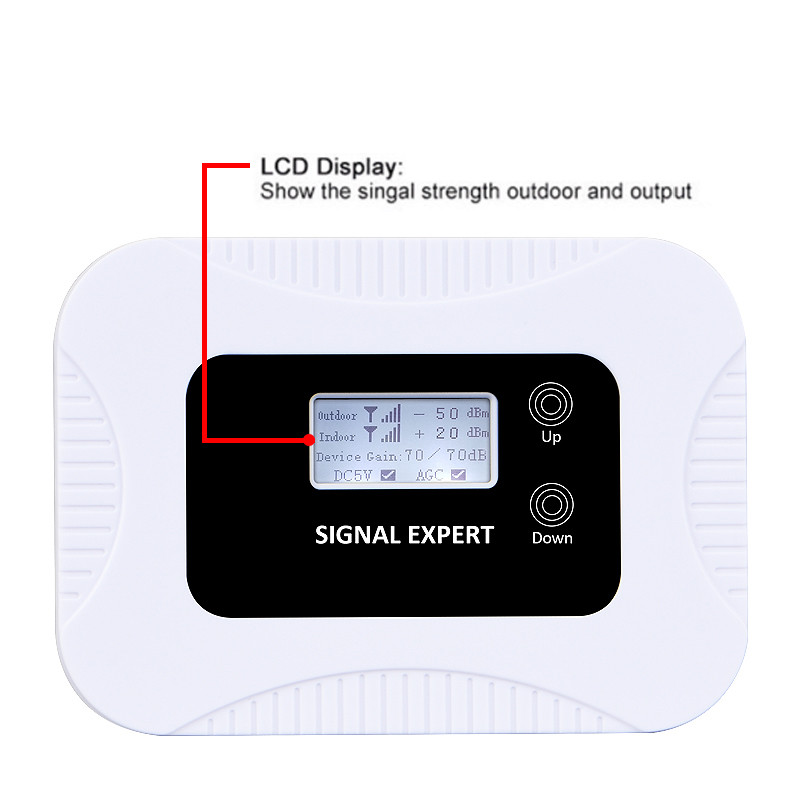

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Dimensions |
165*130*40 (mm) |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
WCDMA 2100MHz B07 Signal Repeater.pdf
Product Description
GlobaL application ATNJ factory 2100MHz 3G signal repeater for your selection:
WCDMA 2100MHz 3G Pico repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The repeater output power level is less than 20dBm.
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.
Product Images
FAQ
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3.How to check precise signal level in dB?
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if there are any other questions.
