Home > products > Signal Booster Coaxial Cable > Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector

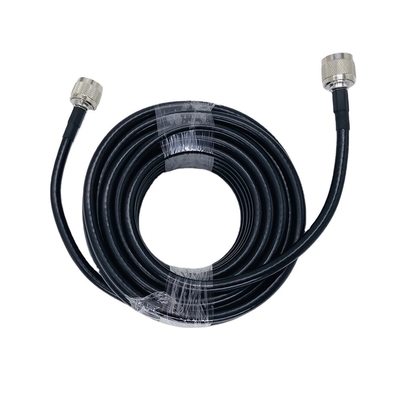

Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: 5D-FB 5M cable

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+7--10+kit

Packaging Details: Standard neutral packing10*10*5cm(1pcs),

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

5m Signal Booster Coaxial Cable

,

50OHm Signal Booster Coaxial Cable

,

5D FB Low Loss Coaxial Cable

Impedance:
50OHm
Length:
5 M
Cable:
5D-FB
RF Connector:

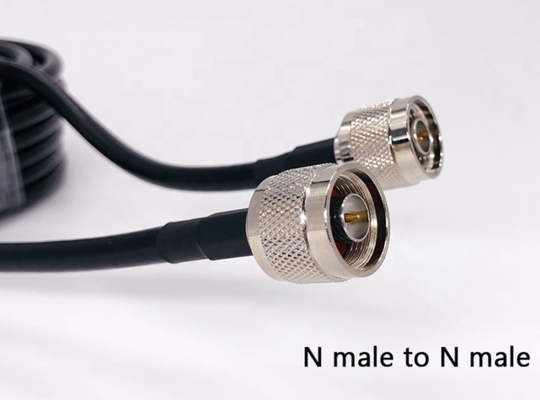

N Male To N Male
Inner Conductor:
BC/CCA
Outer Conductor:
Dual Al Foil (20*0.05)mm
Warranty:
12 Months
Pruducts Name:
Cellular Amplifier
Impedance:
50OHm
Length:
5 M
Cable:
5D-FB
RF Connector:
N Male To N Male
Inner Conductor:
BC/CCA
Outer Conductor:
Dual Al Foil (20*0.05)mm
Warranty:
12 Months
Pruducts Name:
Cellular Amplifier
Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector



Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector




  The low loss coaxial cable offers similar performance compared to corrugated copper cables but provides high flexibility and simplified connectorization. This 50 Ohm coax cable has a bare copper center conductor and stranded outer conductor. Low loss is achieved through use of the 90 percent braided shield. A foam pvc serves as insulation.

Product Paramenters
 5D-FB 5M Coaxial Cable
Mechanical Characteristics and Electrical Performance Parameters
 Inner Conductor
BC/CCA Ф1.8±0.02mm
Dielectric
Foam Polyethylene (FPE) Ф5.0±0.1mm
Outer Conductor
Dual Al Foil(20*0.05)Ф5.2±0.1mm
Braid
AL/TC 128*0.12AA Ф5.6±0.1mm
Jacket
polyvinyl chloride(PVC) Ф7.5±0.1mm

Further detail pls click here for downloading the products specification:

ATNJ Mobile Signal Repeater.pdf



Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector 0

Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector 1

Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector 2Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector 3Low Loss 5m Signal Booster Coaxial Cable N Male To N Male Connector 4

Product packaging and transportation

We have 10 years of experience packing and shipping abroad.

We would make sure the goods arrive safely.
We would help you choose the shipping option that makes the most sense for you.

Provide the destination of your shipment, sort your results by time or cost to find the most cost-effective shipping service.


FAQ :
Q1 : Are you trading company or manufacturer ? Could I use our own logo and label?

A1 : We are factory, with trading service. We provide OEM/OEM service.

Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

Q3 : Is it easy to set up your items?
A3 : Yes. We have a user manual and support technical support 24/7.

Q4 : What is your warranty time?
A4 : We promise 1-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.



Q5 : Do you accept OEM order and how long will you shipping after place an order?
A5 : We can manufacture according to customer's request and usually we can deliver goods 15-20 days after we receive your deposit.

Q6 : What is your payment terms?
A6 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
