Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: 3D-FB
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+18--115+kit
Packaging Details: Standard neutral packing10*10*5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
Length: |
50M,100M,300M |
Cable: |
3D-FB RG58 |
Weight: |
1.3Kg--8.2Kg |
Color: |
White |
Insulation: |
Foam PE |
Shield: |
Al Foil+braiding |
Products Type: |
Signal Amplifier 4g |
Impedance: |
50OHm |
Length: |
50M,100M,300M |
Cable: |
3D-FB RG58 |
Weight: |
1.3Kg--8.2Kg |
Color: |
White |
Insulation: |
Foam PE |
Shield: |
Al Foil+braiding |
Products Type: |
Signal Amplifier 4g |

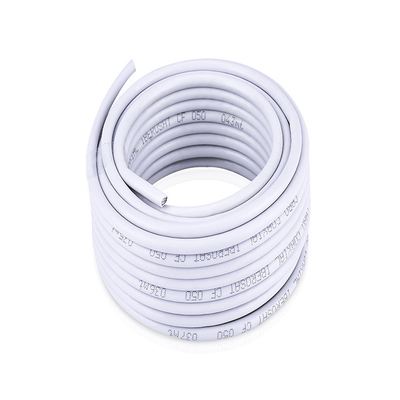

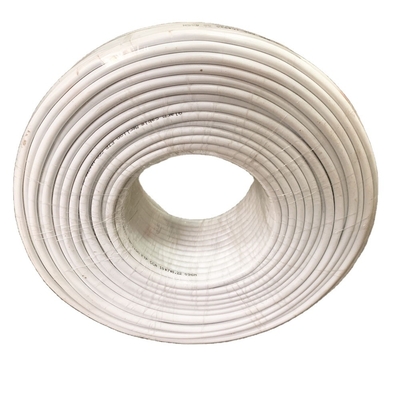

3D FB RG58 Signal Booster Coaxial Cable Customized Length 50M 100M 300M
Product Description
Electrical Properties and Mechanical Properties :
1. Characteristic impedance : 50 ohm
2. Rated capacitance : 82 pf/m
3. Velocity of propagation : 84 %
4. Operating frequency : 1- 6000 MHz
5. Operating temperature : - 25°C ~ +70°C
6. Minimum bending radius : 61 mm
7. VSWR : 1~3000 MHz≤1.15 ; 1~6000 MHz≤1.20
Cable Construction :
1. Inner conductor : Bare Copper or Copper Clad Aluminum, 1.42mm Diameter
2. Insulation Layer : Foam Polyethylene (FPE), 3.81mm Diameter
3. Outer Conductor : Single-sided Self-adhesive Aluminum Tape Tinned Copper, 4.52mm Diameter
4. Jacket : Polyvinyl Chloride(PVC ) or Polyethylene (PE), 6.10mm Diameter
|
RG58 Basic construction
|
||
|
|
RG58
|
|
|
CONDUCTOR |
MATERIAL
|
BC/CCS
|
|
Nom.Dia.
|
7*0.16mm(0.48mm)
|
|
|
DIELECTRIC |
MATERIAL
|
PE
|
|
Nom.Dia.
|
1.60mm
|
|
|
SHIELD |
MATERIAL
|
TC Braiding
|
|
COVERAGE
|
90%
|
|
|
JACKET |
MATERIAL
|
PVC
|
|
Nom.Thick.
|
0.5mm
|
|
|
Nom.Dia.
|
2.7±0.10mm
|
|
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
FAQ :
Q1 : Are you trading company or manufacturer ? Could I use our own logo and label?
A1 : We are factory, with trading service. We provide OEM/OEM service.
Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q3 : Can I get samples to test before I place an order?
A3 : Yes ,samples are available,and the samples are refundable after you place an order.
Q4 : How do you factory think about quality control?
A4 : Quality is the most important,and that's why the raw material we choose are of high quality.
Q5 : Do you accept OEM order and how long will you shipping after place an order?
A5 : We can manufacture according to customer's request and usually we can deliver goods 15-20 days after we receive your deposit.
Q6 : What is your payment terms?
A6 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
