2G 3G 1900MHz Cell Phone Signal Repeater Mobile Network Booster Device
| Frequency Range: | 1850-1910MHz/1930-1990MHz | Gain: | 70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
| Output power: | 17-20dBm | Color: | White,Blue,Customized |
| AGC Intelligent function: | Done,31dB @ 1dB/ Step | RF Connect Type: | SMA/Female |
| Network: | CDMA/GSM/DCS/WCDMA/LTE/IMT-E | Products type: | Signal Booster, Cell Phone Booster |
| High Light: | 1900MHz Cell Phone Signal Repeater,2G 3G Cell Phone Signal Repeater,1900MHz Mobile Network Booster Device |
||
2G 3G 1900MHz Cell Phone Signal Repeater Mobile Network Booster Device
2G 3G 1900MHz Mobile Signal Booster Amplifier Cell Telephone Signal Repeater Blue
The 1900MHz PCS Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1850-1910MHz |
|
Downlink |
1930-1990MHz |
|
|
Frequency Bandwidth |
60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Trademark |
ATNJ |
|
Further detail pls click here for downloading the products specification:
Single band PCS 1900MHz RF Repeater.pdf

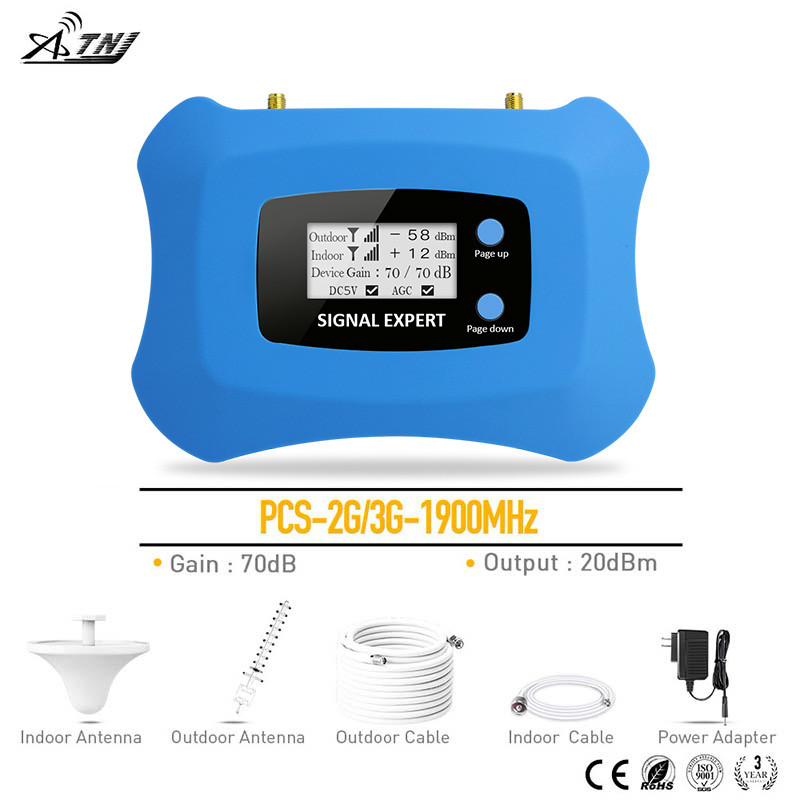

Model No :AS-P
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 2) 1900MHz -- Uplink frequency: 1850-1910MHz/Downlink frequency : 1930-1990MHz
Network support : 2G 3G
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
-
HAll ATNJ products are very well made at a reasonable price. Our clients are delighted with their products and their service and attention is phenomenal. Really recommend them
-
SI have bought these products before, and I have had no problems, they are of very good quality.
-
PGood quality item and great customer service to help resolve issues
