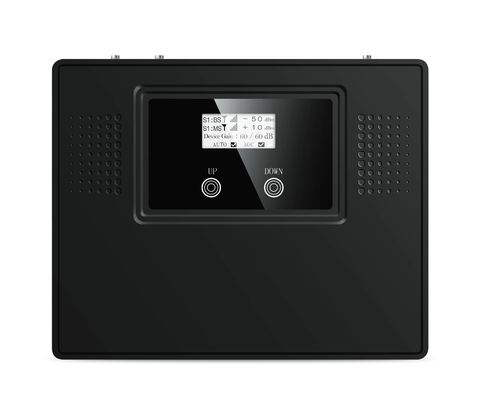

Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster

Product Details

Place of Origin: China

Brand Name: Nikrans

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: LCD-500GDW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+240---260+kit

Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

5μs 2G 3G 4G Tri Band Repeater

,

ROHS 70dB Tri Band Repeater

,

70dB Mobile Signal Booster 2G 3G 4G

900MHz Frequency Range:
890-915MHz / 935-960MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range:
1920-1980MHz / 2110-2170MHz
Products Type:
Cell Phone Booster
Device Gain:
68±2dB
Output Power:
17±3dBm
Color:
Black
900MHz Frequency Range:
890-915MHz / 935-960MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range:
1920-1980MHz / 2110-2170MHz
Products Type:
Cell Phone Booster
Device Gain:
68±2dB
Output Power:
17±3dBm
Color:
Black
Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster

2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster



Full intelligent 2G 3G 4G Mobile Signal Booster Tri Band Repeater



General


The 900/1800/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Specification:

Frequency

Uplink

Downlink

GSM 900MHz

890-915MHz

935-960MHz

4G 1800MHz

1710-1785MHz

1805-1880MHz

3G 2100MHz

1920-1980MHz

2110-2170MHz

Max. Gain

68dB±2dB

65dB±2dB

Max. Output Power

17dB±2dB

20dB±2dB

Bandwidth

Wide Band

Ripple in Band

≤ 8dB

Noise Figure

≤ 6dB

VSWR

≤ 2.0

Spurious Emission

9KHz~1GHz

≤ -36dBm

1~12.75GHz

≤ -30dBm

Time Delay

≤ 1.5 μs

MTBF

> 50000 hours

Impedance

50 ohm

Power Supply

AC 90-240V,DC 5V/3A

Power LCD

Power indicator

Alarm LCD

Red

Strong input signal

Green

Normal

Mechanical Specification

RF Connector

SMA-Female

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40

Installation Type

Wall Installation

Size

20.4*16.4*4.4cm

Gross Weight

0.8Kg

Further detail pls click here for downloading the products specification:

900+1800+2100MHz A033 RF Repeater.pdf



HOW IT WORKS ?



1. Received a good outdoor signal from signal tower.

2. Cable transmits good signal to repeater.

3. Signal Booster enhance the received signal.

4. Improve indoor's cellphone signal.

Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 0Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 1

Selling Point



⭐ Intelligent to guide the installation with LCD .

⭐ Real time display the signal strength .

⭐ Automatic dormancy when no user make the calling .

⭐ Automatic alarm when installation mistake and provide the according solution .

⭐ Automatic adjust the system gain to avoid the repeater self-excitation .

⭐ Initiative reminding when the device was damaged .

⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

⭐ A variety of appearance customization.



Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 2

Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 3Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 4



Specification:

[1] Gain : 65dB (DL) ;

[2] Output power : 20dBm

[3] GSM : Up Link 890 - 915MHz ; Down Link 935 - 960MHz

     DCS : Up Link 1710 - 1785MHz ; Down Link 1805-1880MHz

     WCDMA : Up Link 1920 - 1980MHz ; Down Link 2110-2170MHz

[4] Connector Type : N female connector



Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 5Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 6Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 7

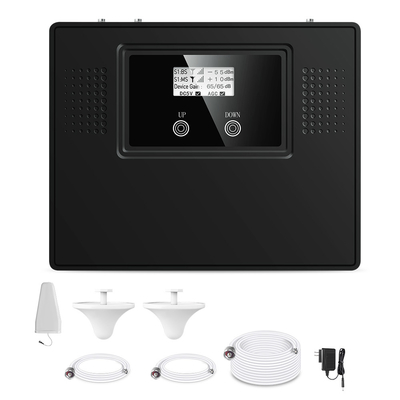

Packaging Including:



[1] Tri Band Booster Base Unit

[2] AC Power Cord

[3] Outdoor Panel Antenna

[4] Indoor Panel Antenna

[5] 15+5 Meters White Coax. Cable



Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 8Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 9

Nikrans LCD-500GDW 2G 3G 4G Tri Band Repeater Full Intelligent Mobile Signal Booster 10



We are manufacturer, and have our own factory.

Signal problem & installation technique supporting



1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70dBM.



2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.



FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
