Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-DB900/2600
Document: 900+2600 A009 Repeater.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+240---260+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Range: |
890-915MHz/935-960MHz |
2600MHz Range: |
2496-2690MHz/2496-2690MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
SMA/Female |
Size: |
48x46x18cm,5KG |
900MHz Range: |
890-915MHz/935-960MHz |
2600MHz Range: |
2496-2690MHz/2496-2690MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
SMA/Female |
Size: |
48x46x18cm,5KG |

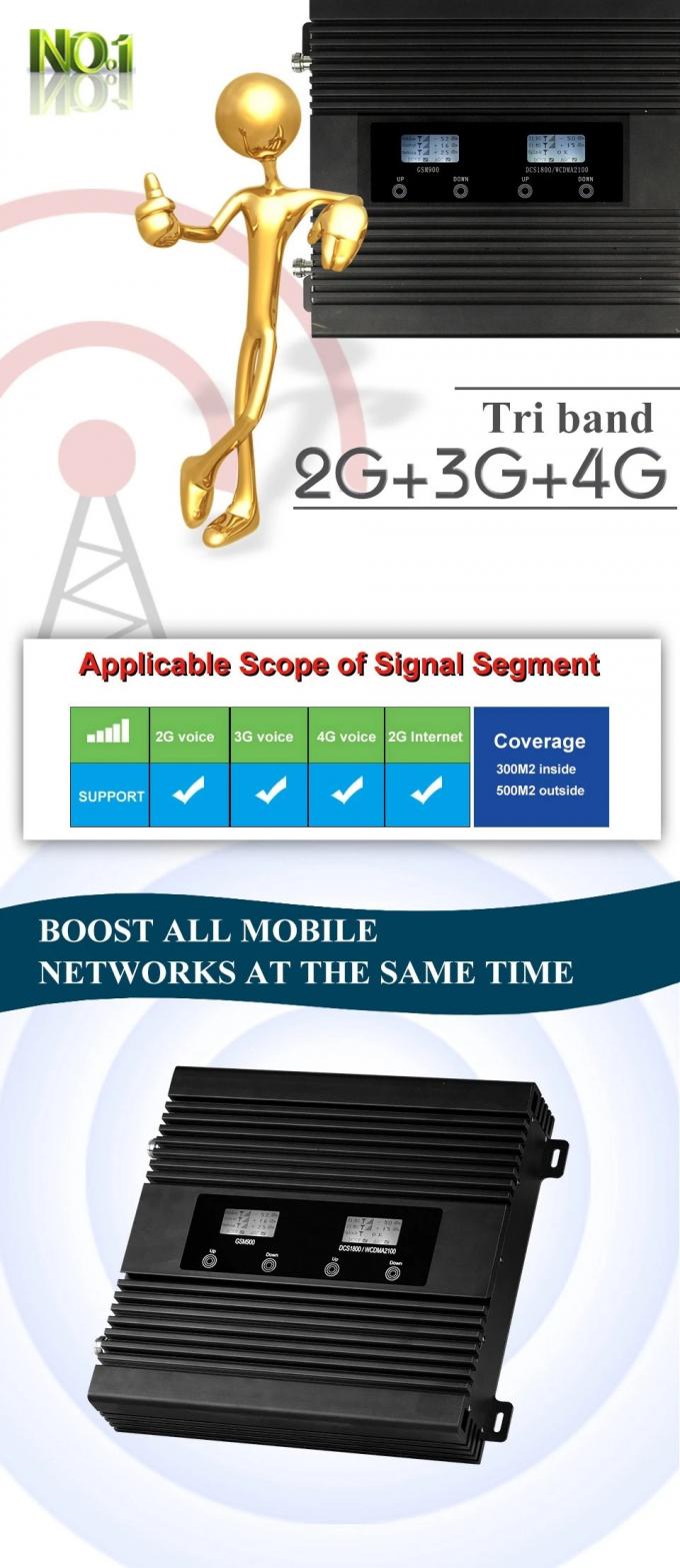

80dB Smart Dual Band Signal Booster Coverage 350 To 800 Square Meters
Metal Dual Band 900/2600MHz Mobile Signal Repeater Cell Phone Booster Ampilifier
You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz,2496-2690MHz |
|
Downlink |
935-960MHz, 2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Antenna |
Log Periodic Antenna +Ceiling Antenna |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
Selling Point
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, Initiative reminding when the device was damaged.
Product Description
Boost: 2G Voice and 4G Network
Coverage: 350-800 Square Meters
Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc
Warranty: 3 Years!

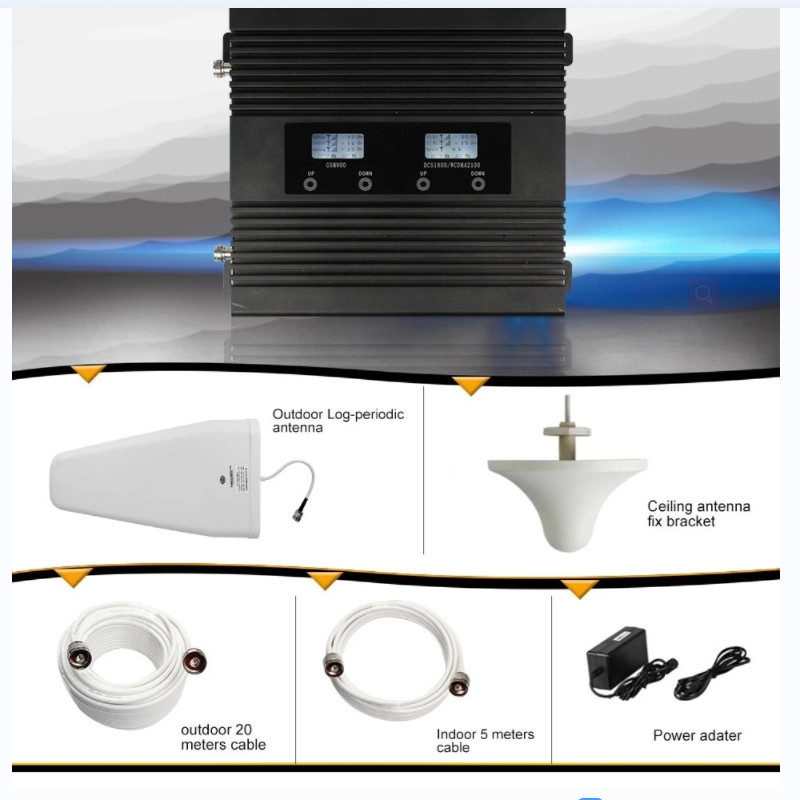

Packaging Including:
[1] Tri Band Booster Base Unit
[2] AC Power Cord
[3] Outdoor Panel Antenna
[4] Indoor Panel Antenna
[5] 35 Meters White Coax. Cable
We are manufacturer, and have our own factory.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
