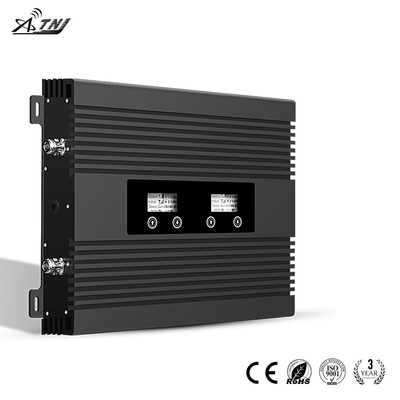

ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: AS-DB800/1800

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+240---260+kit

Packaging Details: Standard neutral packing,48x46x18cm(1 kit)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

AGC Cell Phone Mobile Signal Booster

,

MGC Cell Phone Mobile Signal Booster

,

AGC MGC Cell Phone Booster

800MHz Range:
832-863MHz/ 791-821MHz
1800MHz Range:
1710-1785MHz/1805-1880MHz
Gain:
80dB
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female
Weight:
5kg
Packing Size:
48x46x18cm
Material:
Metal
800MHz Range:
832-863MHz/ 791-821MHz
1800MHz Range:
1710-1785MHz/1805-1880MHz
Gain:
80dB
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female
Weight:
5kg
Packing Size:
48x46x18cm
Material:
Metal
ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function

800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function



2G/4G Dual Band 800/1800MHz Cell Phone Booster Ampilifier Mobile Signal Repeater



A cell phone booster is a device that gathers the signal from the air, usually through an outdoor unit (such as an antenna), and “conveys” this signal to an indoor unit that is supposed to boost the signal. This conveying is done through a wired connection between the outdoor antenna and the indoor unit. The indoor cell phone booster, in turn, is provided with external power through a power outlet and has a complex circuitry that allows it to amplify the weak signal that has been received by the outdoor antenna. The indoor unit then sends the electrical signal to the indoor antenna that is directly connected to the unit, and the antenna converts the electrical signal to waves of the same frequency as were received by the outdoor unit. This, the frequency range of the waves does not change, and the cell phones do not notice any difference, except for a dramatic increase in the signal power that they are receiving.



Thus, as we can see, cell phone signal boosters are devices that literally boost the cell phone signal that you are receiving. This is done through some complex circuitry that works through the use of external power and boosts the signal to usable levels.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

832-862MHz,1710-1785MHz

Downlink

791-821MHz, 1805-1880MHz

Frequency Bandwidth (3dB Bandwidth)

30MHz&75MHz

Gain

80dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

27dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Coverage

100-500 Square Meters

Further detail pls click here for downloading the products specification:

800+1800 A009 Repeater.pdf



Product Description

HOW IT WORK?

The outdoor antenna installed on the roof receives mobile phone’s signal and transmits it to the amplifier host through coaxial jumpers. The host amplifies the mobile signal and transmits it to the indoor space through the indoor antenna.

No inter-linkage between coaxial cable and mobile phone is needed, and mobile phones inside the house can get better mobile signals.




Packaging Including:

[1]  Tri Band Booster Base Unit

[2]  AC Power Cord

[3]  Outdoor Panel Antenna

[4]  Indoor Panel Antenna

[5]  35 Meters White Coax. Cable



ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 0

ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 1ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 2ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 3ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 4

ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 5

ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 6

ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 7ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 8

ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater

ATNJ GSM+4G 800MHz 1800MHz Cell Phone Mobile Signal Booster AGC MGC Function 10

ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater



We are manufacturer, and have our own factory.

Signal problem & installation technique supporting



1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
