Product Details:
|
Frequency Range: | According To Customer's Need,(Band 3) 1800MHz -- Uplink Frequency: 1710-1785MHz/Downlink Frequency : 1805-1880MHz (Band 1) 2100MHz -- Uplink Frequency: 1920-1980MHz/Downlink Frequency : 2110-2170MHz | Gain: | 80dB |
---|---|---|---|
Output Power: | 27dBm | Color: | Black ,Cuztomized |
AGC Intelligent Function: | Done,31dB @ 1dB/ Step | ALC Intelligent Function: | Done |
MGC: | Done | Bandwidth: | 60&75 |
RF Connect Type: | SMA/Female | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Weight: | 5kg | Packing Size: | 48x46x18cm |
High Light: | 27dBm Dual Band Signal Booster,80dB Dual Band Signal Booster,27dBm Mobile Signal Booster Repeater |

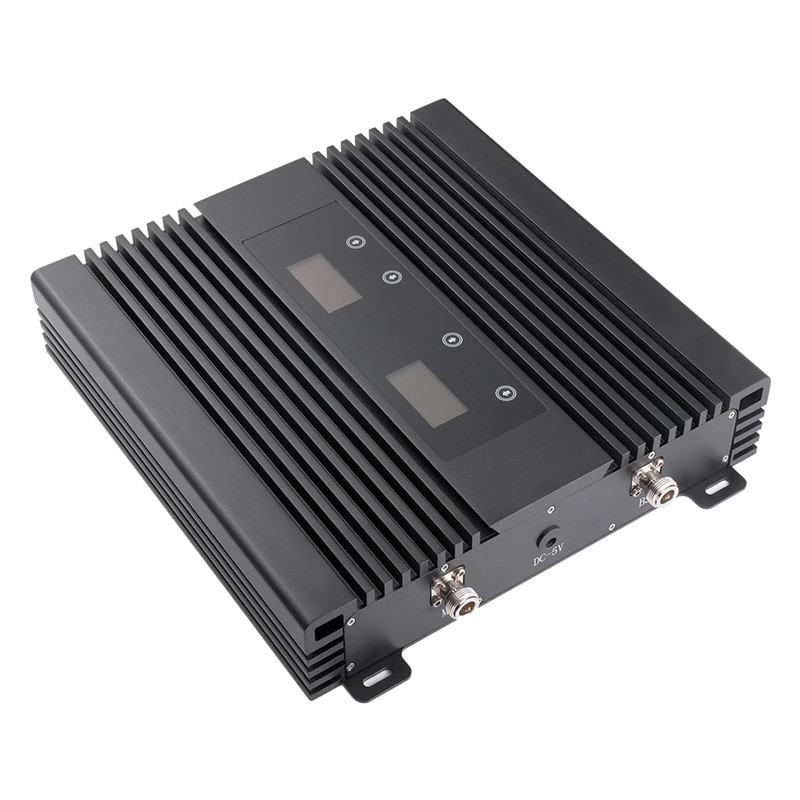

Output Power 27dBm Dual Band Signal Booster Cell Phone Repeater
Dual Band 1800/2100MHz Mobile Signal Booster Repeater Cell Phone Signal Ampilifier
Technical Specifications
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz,1920-1980MHz |
Downlink |
1805-1880MHz, 2110-2170MHz |
|
Frequency Bandwidth (3dB Bandwidth) |
60MHz&75MHz |
|
Gain |
80±5dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Output Power(Customers to Choose) |
27dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
AGC |
20-30dB |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
System Delay |
≤ 5μs |
|
RF Connector(Customers to Choose) |
N(Female) |
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
Specification |
Size: 165*115*35mm, Weight: 1.3kg |
|
Production Capacity |
10000/Per Month |
|
Antenna |
Log Periodic Antenna +Ceiling Antenna |
Product Description
Brand: ATNJ
Frequency : DCS 1800 / WCDMA 2100
Up Link: 1710-1785MHz / 1920-1980MHz
Down Link: 1805-1880MHz / 2110-2170MHz
Gain:82dB
Output Power: 27dBm
Bandwidth:25M/75M/60M
Noise Figure:<=6
VSWR:<=3
Connector Type:N Female
LCD Display: Done
Sleeping Mode: Done
AGC Function (Automatical Gain Control): Done
We are manufacturer, and have our own factory.
Signal problem & installation technique supporting
1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
