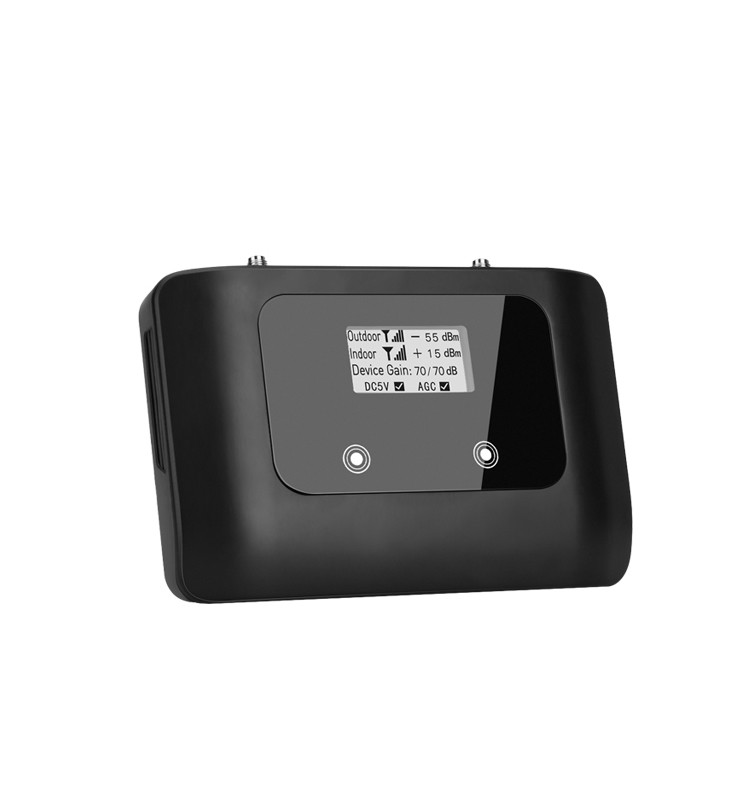

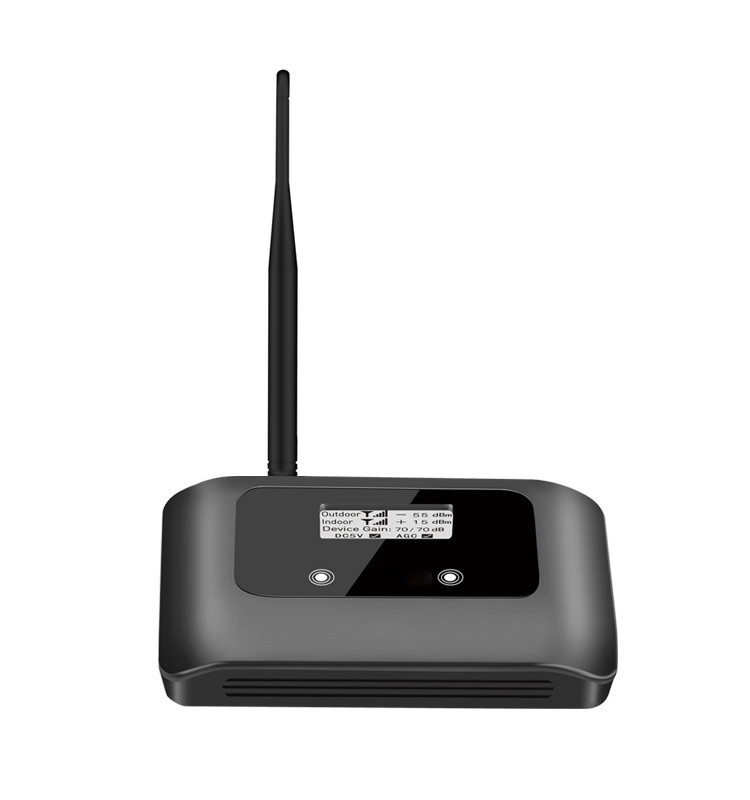

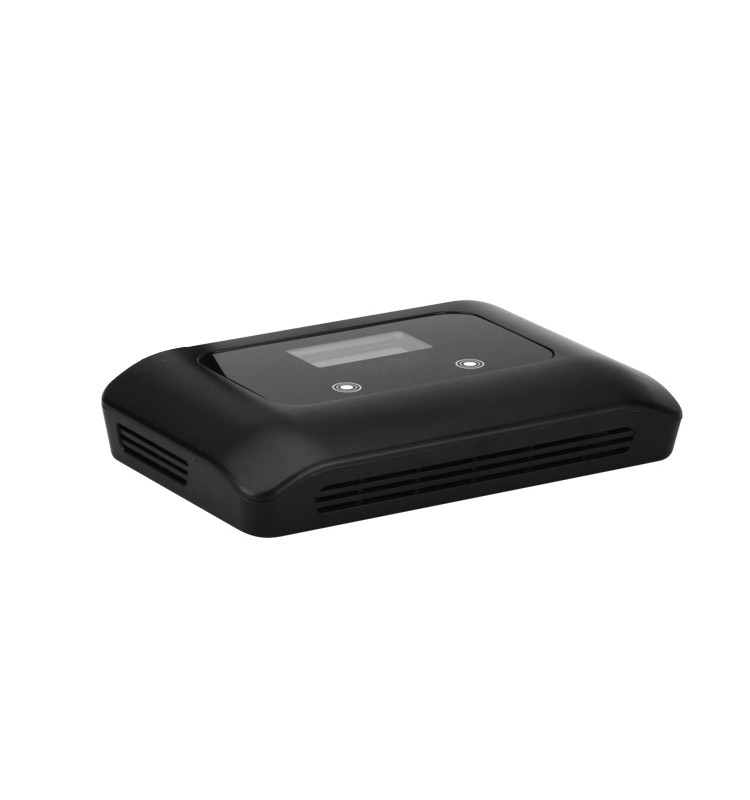

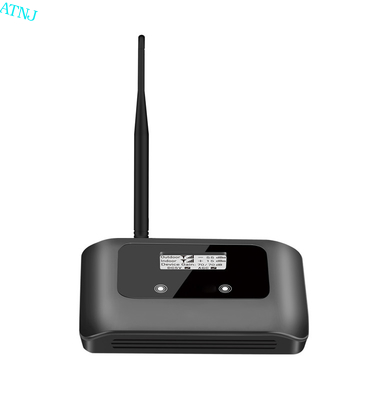

70dB Mobile Signal Repeater

5Pcs
MOQ
USD+120--130+kit
Price
70dB Mobile Signal Repeater
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency Range: Uplink:890-915MHz,Downlink:935-960MHz
Gain: 70dB
Output Power: 17-20dBm
AGC Intelligent Function: Done,31dB @ 1dB/ Step
ALC Intelligent Function: Done
WIFI Control: Done
Bandwidth: Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted
RF Connect Type: SMA/Female
Highlight:

70dB Mobile Signal Repeater

,

915MHz Mobile Signal Repeater

,

70dB 2G 3G 4G Repeater
Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-BS-G
Document: GSM 900MHz B08 RF Repeater....cx.pdf
Payment & Shipping Terms
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

70dB Mobile Signal Repeater​



WIFI Digital 2G 3G 4G Band Selected Mobile Signal booster Cellular amplifier repeater





Technical Specifications



Digital Selected Band 900MHz specially for mobile provider need.



Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

890-915MHz

Downlink

935-960MHz

Frequency Bandwidth (Adjustable)

10MHz from 0.2 to 10MHz bandwidth adjusted

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA (Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

GSM 900MHz B08 RF Repeater.docx.pdf



70dB Mobile Signal Repeater 0

Selling Point

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.

7, Supports 10MHz from 0.2 to 10MHz bandwidth adjusted by WIFI control



Product Description



70dB Mobile Signal Repeater 170dB Mobile Signal Repeater 2



Easy to Install In 6 steps!

[1] Install the outdoor antenna on the roof, Face to signal tower.

[2] Connects one end of 15 meters coaxial cable with outdoor antenna.

[3] The other end of 15 meters coaxial cable connects "BS" port.

[4] 5m Cable connect indoor antenna and "MS" port.

[5] Find an appropriate position to place the inside antenna.

[6] Power up and it is done. Cell phone signal would be full bars in moment.

70dB Mobile Signal Repeater 370dB Mobile Signal Repeater 4



70dB Mobile Signal Repeater 5



We are manufacturer, and have our own factory.

FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
