Brand Name: | ATNJ |
Model Number: | AS-DB800/900/2600 |
MOQ: | 5Pcs |
Price: | USD+350---380+kit |
Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

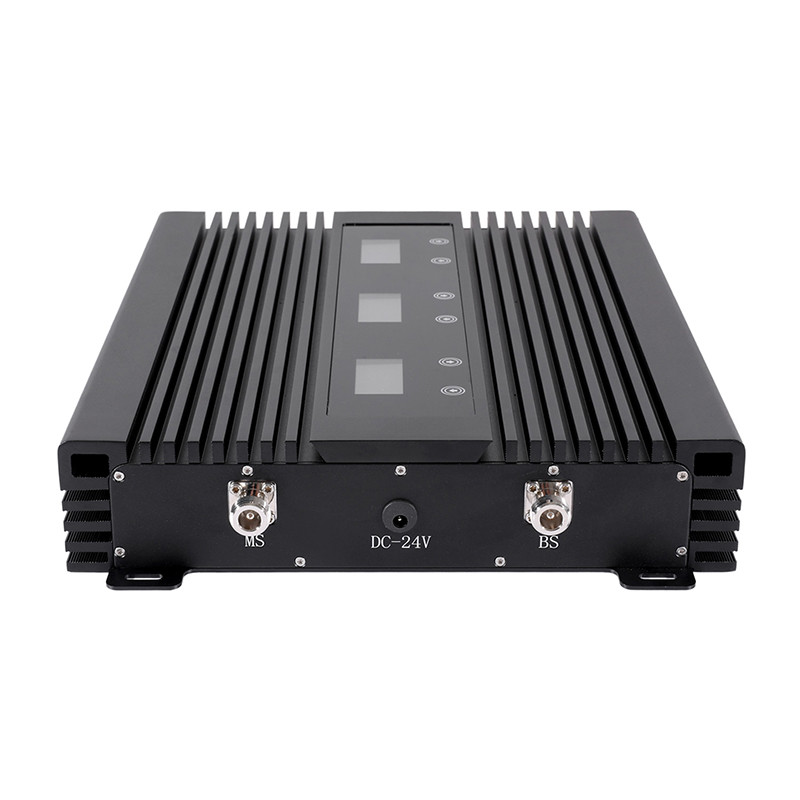

800MHz 900MHz 2600MHz Multi Band Repeater Automatic Gain Control
800/900/2600MHz Tri-band 2G 4G Mobile Signal Booster Amplifier Repeater
Technical Specifications
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz,890-915MHz,2496-2690MHz |
Downlink |
791-821MHz, 935-960MHz,2496-2690MHz |
|
Frequency Bandwidth (3dB Bandwidth) |
25MHz&75MHz&60MHz |
|
Gain |
80dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Auto Gain Control |
20dB Min. |
|
Output Power(Customers to Choose) |
27dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
VSWR |
<=2 |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
RF Connector(Customers to Choose) |
N(Female) |
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
Further detail pls click here for downloading the products specification:
800+900+2600 A013 Signal Repeater.pdf
Selling Point
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
Product Description
OUR Cellphone SIGNAL BOOSTER
1. Smart LCD, show the real-time signal strength.
2. Sleeping Mode: When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control): Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5.MGC (Manual Gain Control): In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.

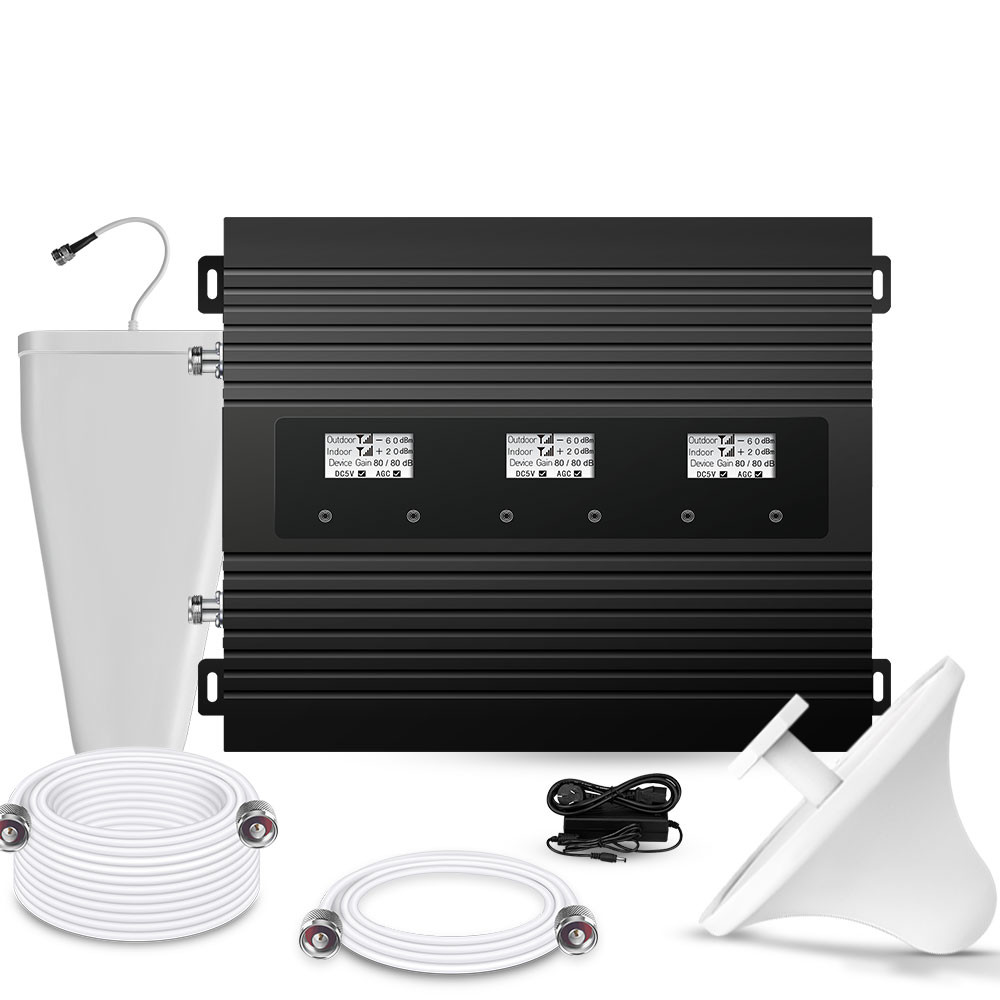

What is Included
[1] 900+1800+2100 mhz Tri Band Booster Base Unit [2] AC Power Cord [3] Outdoor Panel Antenna [4] Indoor Panel Antenna [5] 15 +5 Meters White Coax. Cable
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
|
