Product Details:
|
| Certification: | RoHS And REACH Compliant By Exemption | Frequency Range: | According To Customer's Need,Uplink:2496-2690MHz,Downlink:2496-2690MHz |
|---|---|---|---|
| Gain: | 80±5dB | Output Power: | 20-27dBm |
| Color: | Grey | AGC Intelligent Function: | Done,31dB @ 1dB/ Step |
| ALC Intelligent Function: | Done | MGC: | Done |
| In-band Ripple: | ≤ 3dB | System Delay: | ≤ 5μs |
| RF Connect Type: | N/Female | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/6A Power Adapter) |
| Packing Size: | 52x21x16cm | ||
| Highlight: | 2600MHz Cell Phone Signal Amplifier,TUV Cell Phone Signal Amplifier,2600MHz Cell Phone Repeater |
||

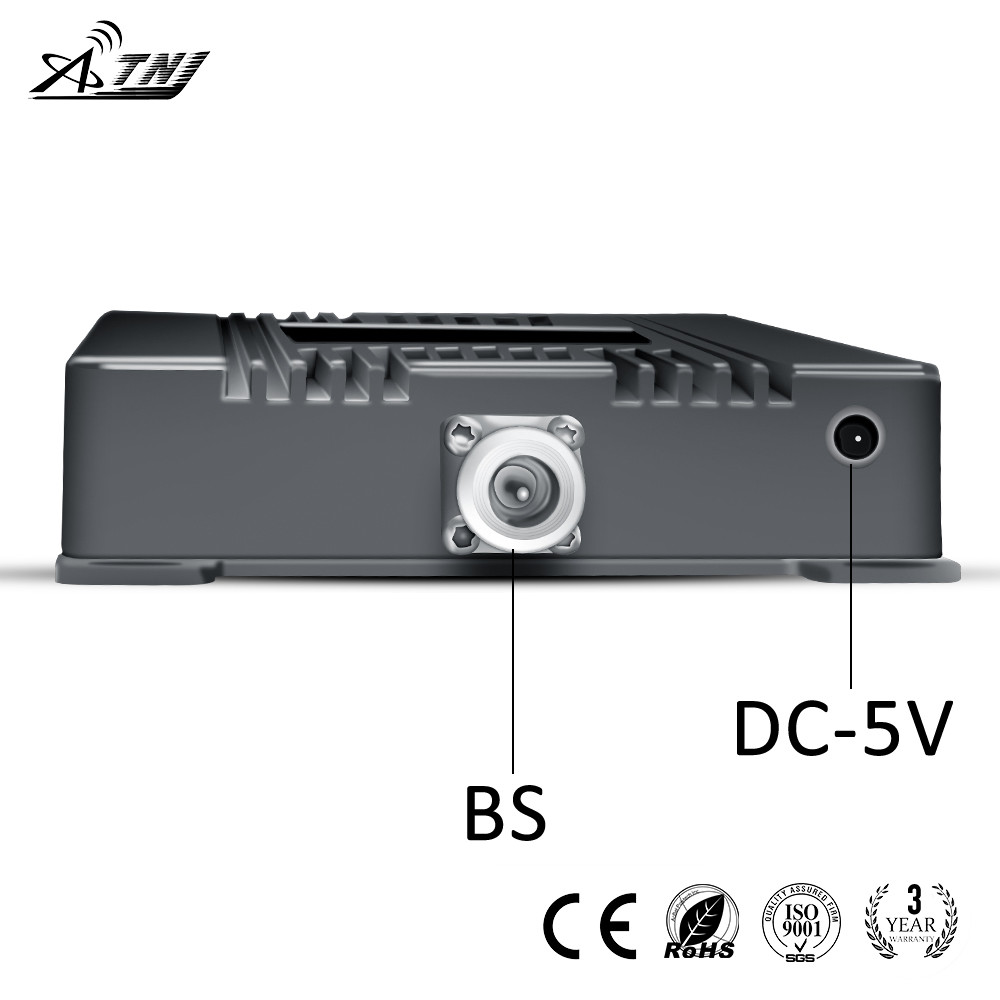

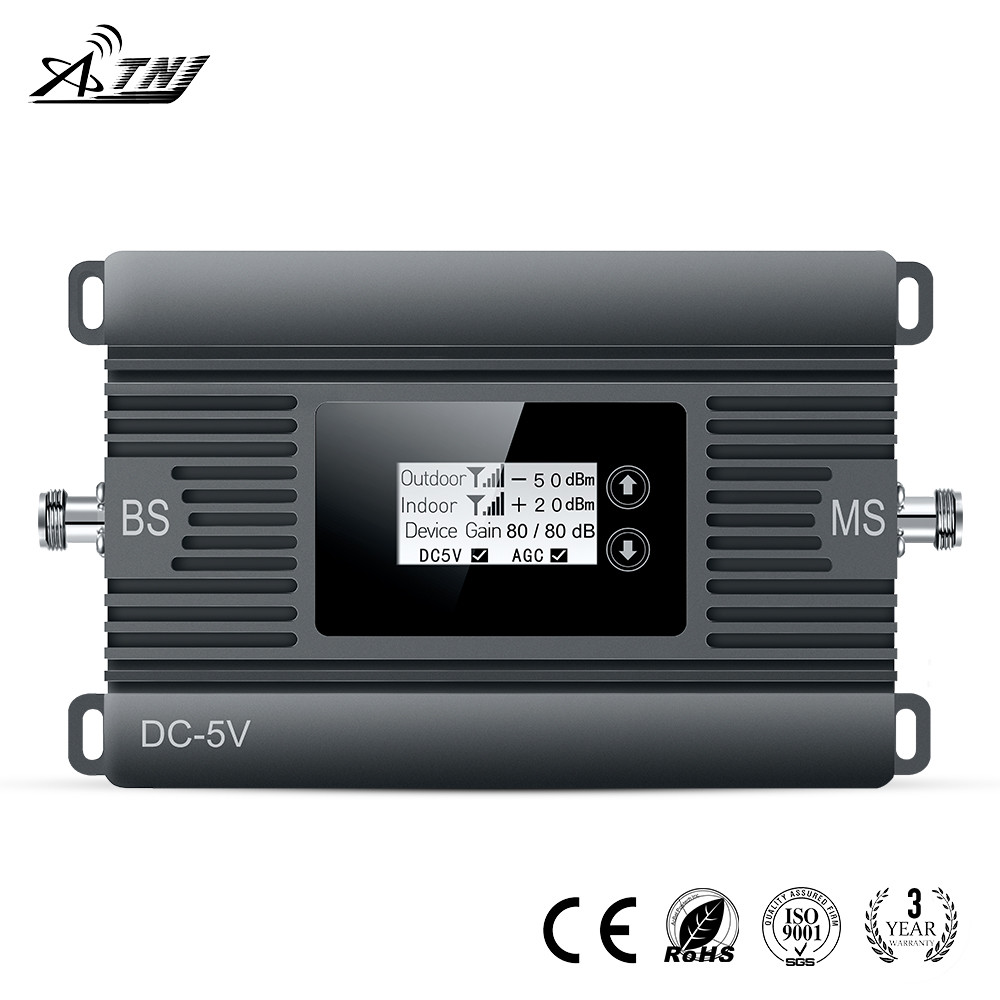

2600MHz Cell Phone Signal Amplifier
Mobile Signal Booster Single Band LTE2600MHz Cell Phone Ampilifier Repeater
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
2496-2690MHz |
|
Downlink |
2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
HS Code |
8543709200 |
|
|
Origin |
Shenzhen |
|
Further detail pls click here for downloading the products specification:
LTE 2600MHz B011A Signal Repeater.pdf
Packing list:
1 x Signal booster
1 x Power adapter (please specify the type of adapter when order)
1 x User Manual
1 x LPDA antenna
1 x Ceiling antenna
1 x 20M cable
1 x 5M cable
Product Description
We are manufacturer, and have our own factory.
Signal problem & installation technique supporting
1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
