Dual Band Signal Booster
>
2G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier

2G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier

Brand Name: ATNJ
Model Number: JS-DB850/2100
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
824-849MHz / 869-894MHz
2100MHz Frequency Range:
1920-1980MHz / 2110-2170MHz
Gain:
70dB
Output Power:
20dBm
Color:
Gold, Black, White Or Customized
Products Type:
3G Signal Booster, Baby Delight Go With Me Cirrus Portable Booster
Supply Ability:
1000+unit+per day.
High Light:

2100MHz Dual Band Booster

,

850MHz Dual Band Booster

,

850MHz Dual Band Wifi Amplifier

Product Description

2G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier



Dual Band Signal Booster 2G 3G 4G 850MHz 2100MHz Aluminum Profile Amplifier



General


The 850/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1920-1980MHz

Downlink

869-894MHz, 2110-2170MHz

Frequency Bandwidth

25MHz&60MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+2100MHz A032 mobile signal repeater.pdf



Selling Point



1. Intelligent to guide the installation with LCD


2. Real time display the signal strength.


3. Automatic dormancy when no user make the calling


4. Automatic alarm when installation mistake and provide the according solution


5. Automatic adjust the system gain to avoid the repeater self-excitation


6. Initiative reminding when the device was damaged.







Product Description



DUAL BAND Pico signal repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico signal repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico signal repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The signal repeater output power level is less than 20dBm.



Pico signal repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.



Pico signal repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The signal repeater output power is up to 20dBm per carrier.



Meanwhile, it can also boost the speed of GPRS.

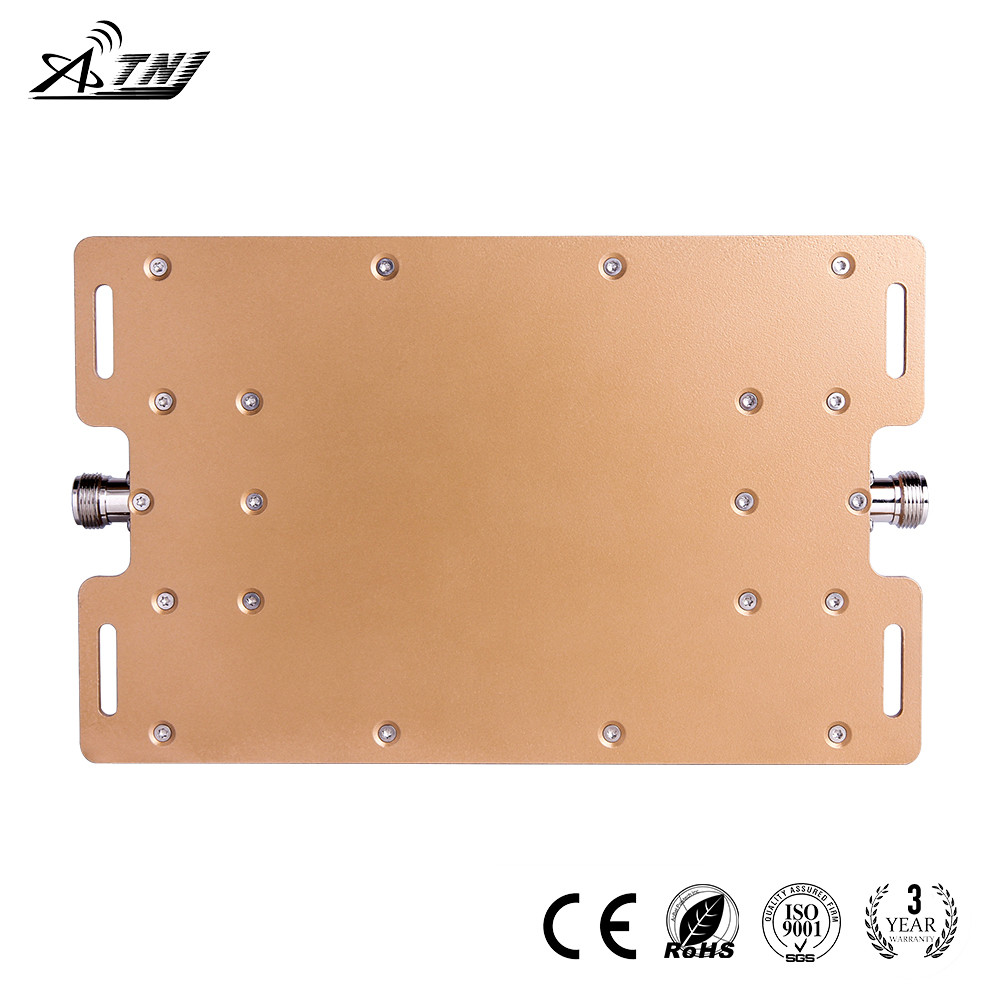

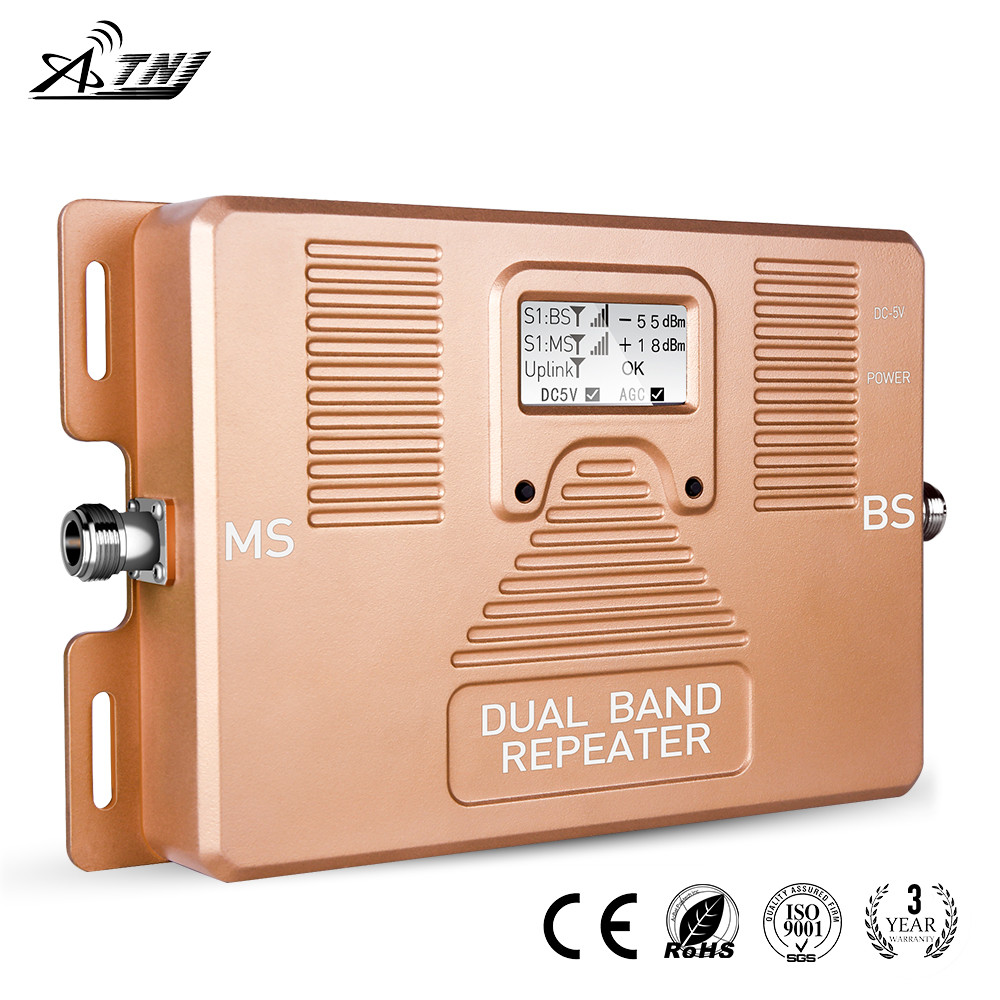

2G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 02G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 12G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 22G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 32G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 42G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 52G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 62G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 72G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 82G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 9

2G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 102G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 112G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 12

2G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 132G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 142G 3G 4G 850MHz 2100MHz Dual Band Booster Aluminum Profile Amplifier 15



We are manufacturer, and have our own factory.



FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
