Cell Phone Signal Repeater
>

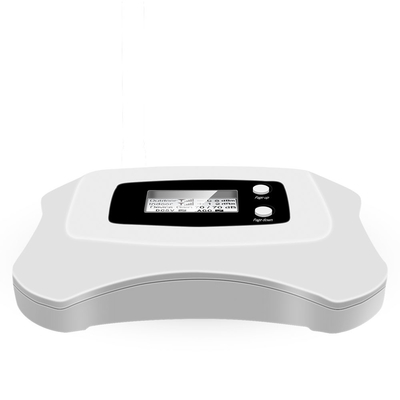

Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage

Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage

Brand Name: ATNJ
Model Number: AS-AWS4
MOQ: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Features:
AGC, ALC, MCG
Band4 Frequency Range:
1710-1755MHz/2110-2155MHz
Color:
White,Blue,Customized
RF Connect Type:
SMA/Female
Products Type:
Atnj, 4g Signal Booster
Products Type:
Signal Repeater 4G
Country Of Origin:
Shenzhen, China
Supply Ability:
1000+unit+per day.
High Light:

AWS1700MHz Mobile Phone Signal Booster

,

5dB Mobile Phone Signal Booster

,

AWS1700MHz Cellular Signal Booster

Product Description

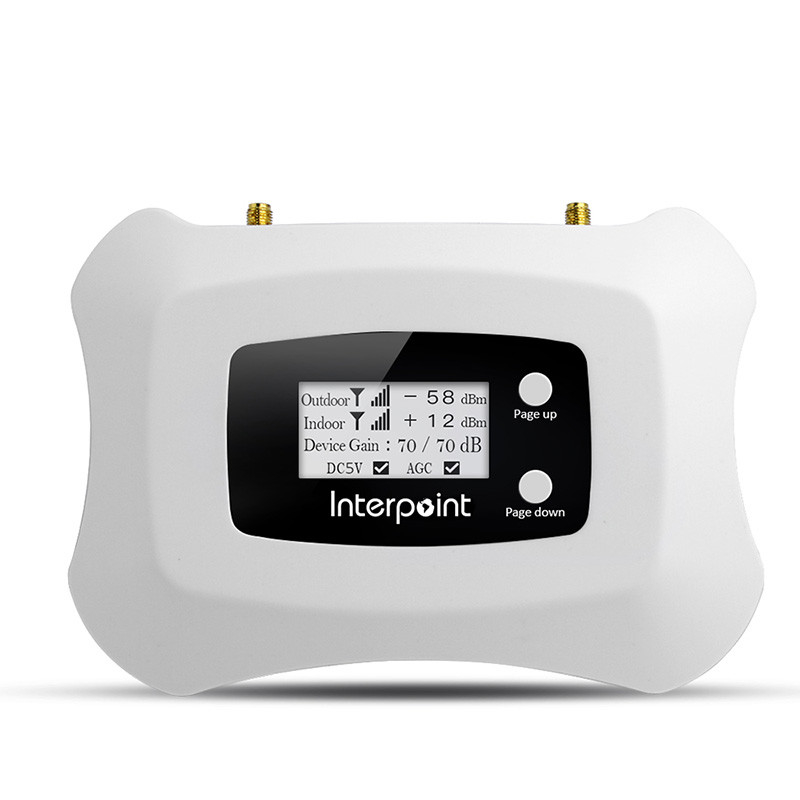

Band4 AWS1700MHz Mobile Phone Signal Booster Repeater Output Power 20dBm



Band4 AWS1700MHz Mobile Phone Signal Booster for North South America



The 1700MHz AWS Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

1710-1755MHz

Downlink

2110-2155MHz

Frequency Bandwidth

45MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA (Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Specification

Size: 165*115*35mm, Weight: 1.3kg

Further detail pls click here for downloading the products specification:

Single band AWS 1700MHz RF Repeater.pdf



Selling Point



2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.





Product Description

ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater

Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage 8Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage 9

We will send the correct plug adapter which is suitable for you according with the shipping address.

Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage 10

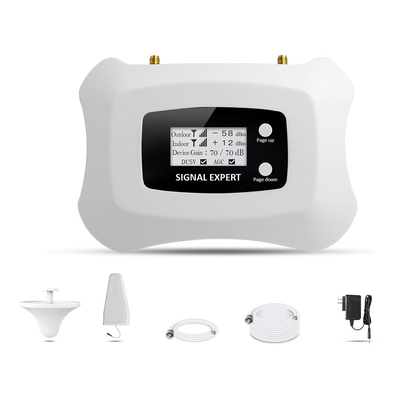

Easy to Install In 6 steps!

[1] Install the outdoor antenna on the roof, Face to signal tower.

[2] Connects one end of 15 meters coaxial cable with outdoor antenna.

[3] The other end of 15 meters coaxial cable connects "BS" port.

[4] 5m Cable connect indoor antenna and "MS" port.

[5] Find an appropriate position to place the inside antenna.

[6] Power up and it is done. Cell phone signal would be full bars in moment

Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage 11

ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater

Easy Installation and Maintenance 1700MHz AWS Repeater for Indoor Signal Coverage 14ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater



We are manufacturer, and have our own factory.

Warranty


● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
●Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.





FAQ:


Does this need installation? Can I set this up myself?



Installing our boosters is easy - in fact, 98% of our customers do it themselves. The device is plug-and-play, so all you need to do is attach the units with cables and mount the antennas. We provide simple installation guides and videos to help you along the way.

Moreover, we offer technical aftersales support after the delivery of your device, so you can have peace of mind knowing we're here to help.
