Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB800/1800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+110---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency 800MHz Range: |
832-862MHz/791-821MHz |
Frequency 1800MHz Range: |
1710-1785MHz/1805-1880MHz |
Gain: |
≥70dB |
Output Power: |
17dBm±3 |
Color: |
Gold,Black,White Or Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
MGC、ALC Intelligent Function: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5μs |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Products Type: |
Gnrateurs De Signaux, Mobile Signal Booster Lte |
Frequency 800MHz Range: |
832-862MHz/791-821MHz |
Frequency 1800MHz Range: |
1710-1785MHz/1805-1880MHz |
Gain: |
≥70dB |
Output Power: |
17dBm±3 |
Color: |
Gold,Black,White Or Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
MGC、ALC Intelligent Function: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5μs |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Products Type: |
Gnrateurs De Signaux, Mobile Signal Booster Lte |

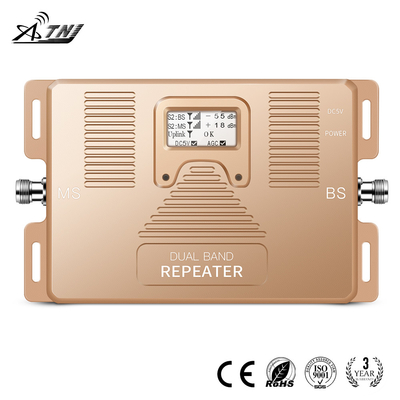

70dB Gain 2G 4G LTE Repeater Amplifier Dual Band 800MHz 1800MHz
Dual Band Signal Booster 800 / 1800MHz Cellular 2G 4G LTE Repeater Amplifier
This amplifier is equipped with an LCD screen that displays the main device parameters, error messages and installation manual.
Dual band signal booster is supplied as a complete set, which, in addition to the amplifier, contains internal and external antennas, cable, brackets and a power supply. Installation usually takes about 15-20 minutes and does not require any special technical knowledge. Only after you have installed the amplifier and antennas and connected them with cables, you can turn on the system. Please note, however, that cables longer than those included in the kit may adversely affect the repeater's amplification capability. Within seconds. Once switched on, the repeater will provide the entire area with a reliable GSM, EDGE and GPRS signal.
Mobile signal booster has no harmful effect on human health. On the contrary, it reduces mobile phone emissions up to 60 times from 0.6 to 0.01 W. Obviously, when the signal strength is low, the mobile phone will automatically search for a stronger signal from the mobile base station. By amplifying the signal, the mobile repeater reduces the radiation power of the mobile phone to a normal level.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
791-821MHz, 1710-1785MHz |
|
Downlink |
832-862MHz, 1805-1880MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+1800MHz A032 mobile signal repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Product Description
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
