4G Signal Repeater
>

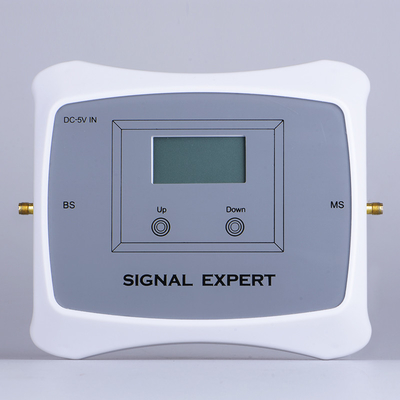

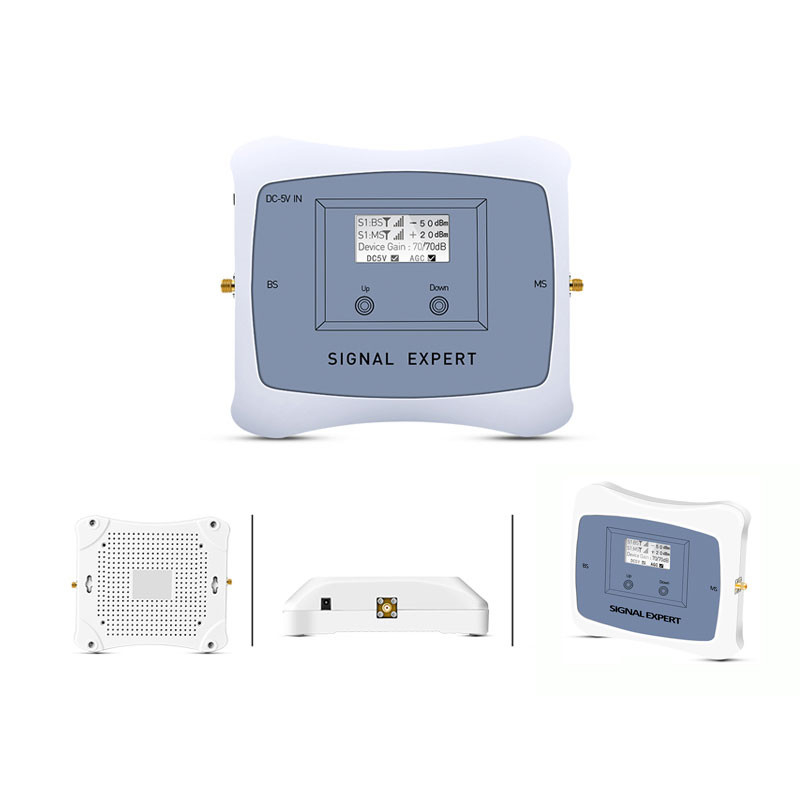

Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular

Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular

Brand Name: ATNJ
Model Number: JS-DB2300/P
MOQ: 5Pcs
Price: USD+110---130+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
2300MHz Frequency Range:
2300-2400MHz/ 2300-2400MHz
Products Type:
4G Signal Booster
Gain:
70dB
Output Power:
20dBm
Color:
Grey & Cuztomized
RF Connect Type:
SMA/Female
Weight:
4kg
Products Type:
Anteena, Booster Repeater Lte Amplifier Dual Connector
Supply Ability:
1000+unit+per day.
High Light:

TDD 4G Signal Extender

,

70dB Gain 4G Signal Extender

,

2300MHz Repeater Booster 4G

Product Description

Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular







General
  The 2300MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

2300-2400MHz

Downlink

2300-2400MHz

Frequency Bandwidth

100MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

900+2300MHz 006 mobile signal repeater.pdf



Selling Point



1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.





Product Description





Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 0Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 1Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 2Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 3Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 4Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 5Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 6Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 7

Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 8





The booster is fixed onto the wall through expansion bolts.



A. Drill holes on the targeted place and install expansion bolts.



B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.



C. Place the booster on and fasten it.



D. Connect cables and power cables to the booster respectively.



E. After installing the booster as described above, power on the booster to check the operation status.





Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 9Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 10





1) The outside antenna receives the signal from the nearest mobile base station.



2) The outside antenna sends the received signal through the coax cable to the installed Repeater.



3) The repeater accepts the low signal and improves it.



4) The improved signal goes to the inside antenna through the connection coax cable.



5) The inside antenna send the improved good signal to your mobile phone.







Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 11





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.







Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 12

Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 13Customized 70dB Gain TDD 4G Signal Extender Band 40 2300MHz LTE Cellular 14





FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.



5. Can I install a signal repeater myself?

Absolutely. There is no technical expertise required to install your mobile signal repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your repeater.



6. Can this mobile signal repeater create a signal where there is no cell signal before?

The mobile signal repeater cannot produce a signal, only amplify a weak one.
