Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-D3
Document: Single band DCS 1800MHz RF ...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Features: |
High Gain,dual Band,long Range |
1800MHz Frequency Range: |
1710-1785MHz/1805-1880MHz |
Gain: |
70dB |
Output Power: |
17dBm |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
SMA/Female |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Products Type: |
Repeater Gsm, 4g Gsm |
Origin: |
Shenzhen, China |
Features: |
High Gain,dual Band,long Range |
1800MHz Frequency Range: |
1710-1785MHz/1805-1880MHz |
Gain: |
70dB |
Output Power: |
17dBm |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
SMA/Female |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Products Type: |
Repeater Gsm, 4g Gsm |
Origin: |
Shenzhen, China |

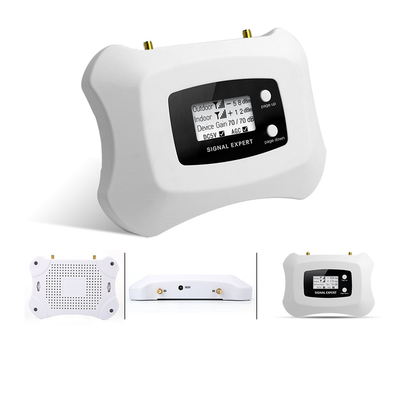

2G 4G 1800MHz Cell Phone Signal Repeater Customized White Blue Color
1800MHz Cell Signal Repeater 2G/4G Mobile Signal Booster mobile Signal Amplifier
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785Mhz |
|
Downlink |
1805-1880Mhz |
|
|
Frequency Bandwidth |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
Single band DCS 1800MHz RF Repeater.pdf
Selling Point

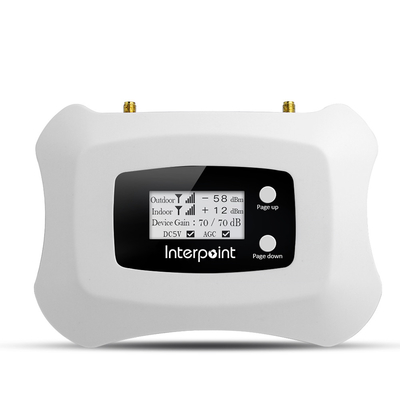

1, Intelligent to guide the installation with LCD

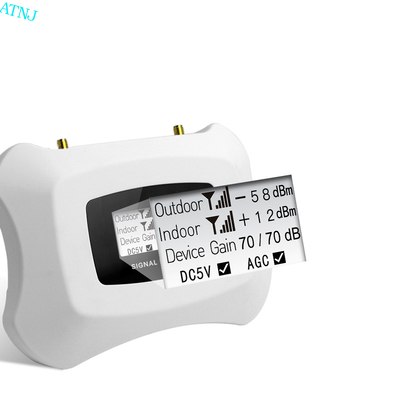

2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, Initiative reminding when the device was damaged.
Product Description
We will send the correct plug adapter which is suitable for you according with the shipping address.
Easy to Install In 6 steps!
[1] Install the outdoor antenna on the roof, Face to signal tower.
[2] Connects one end of 15 meters coaxial cable with outdoor antenna.

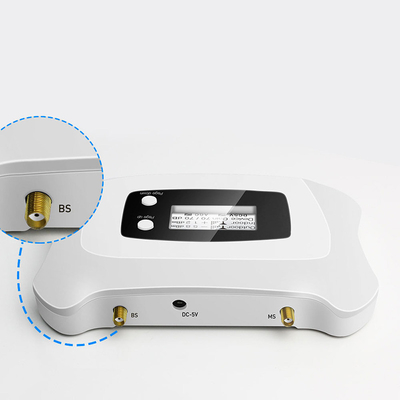

[3] The other end of 15 meters coaxial cable connects "BS" port.
[4] 5m Cable connect indoor antenna and "MS" port.
[5] Find an appropriate position to place the inside antenna.
[6] Power up and it is done. Cell phone signal would be full bars in moment.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5.Why do I buy at your online store?
ATNJ offers you only time-tested and completely safe devices that can be used by multiple mobile phones simultaneously. As well as assisting you to choose the most appropriate cell phone repeater for your needs, you can rest assured that you will receive excellent client service from our professional team and a 3-year warranty*. We also offer you a unique possibility to change or return your repeater if, for any reason, it doesn’t fulfil your requirements.
