| Brand Name: | ATNJ |
| Model Number: | JS-DB900/1800/P |
| MOQ: | 5Pcs |
| Price: | USD+70---85+kit |
| Packaging Details: | Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
2G 4G 900MHz 1800MHz Dual Band Repeater GSM LTE Cellular Amplifier
2G 4G 900 / 1800MHz Dual Band Repeater Signal Booster GSM LTE Cellular Amplifier
Selling Point
Latest generation LCD amplifier is used to amplify weak GSM signals on two different frequencies. The LCD screen displays signal strength, setup advice, error messages, power and ALC data. In addition, the signal booster has another port for additional internal antenna, allowing the user to evenly redistribute the amplified signal.
This model guarantees effective reinforcement in medium-sized homes and offices, shops and other properties up to 300 m² (3200 ft²).
The device amplifies GSM signals simultaneously on 900 and 1800 MHz. 900 MHz is the most common GSM signal transmission frequency in the European Union and around the world. 1800 MHz is mainly used as a complementary frequency to 900 MHz, and in some regions as the main frequency. Therefore, the dual-band amplifier is suitable for users of mobile operators operating on different frequencies.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1710-1785MHz |
|
Downlink |
935-960MHz, 1805-1880MHz |
|
|
Frequency Bandwidth |
25MHz&75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+1800MHz C03 Mobile Signal Repeater.pdf
Product Description
2G 4G signal booster (B3+B8)
Gain : 70db
Max power : 20dbm
Get faster 4G Internet, enjoy fast upload and downlaod at your home or office Clear voice, no more missing call, reduce radiation of cell phone.
This signal amplifier can boost 2G GSM 900 and 4g LTE 1800 in Europe, Africa,Assia.
GSM 900 and LTE 1800 are widely operated in France, Italy, Spain, Portugal, Gemany, Poland, etc.
ALC functon
The ALC function can prevent excessive signal output and cause interference.

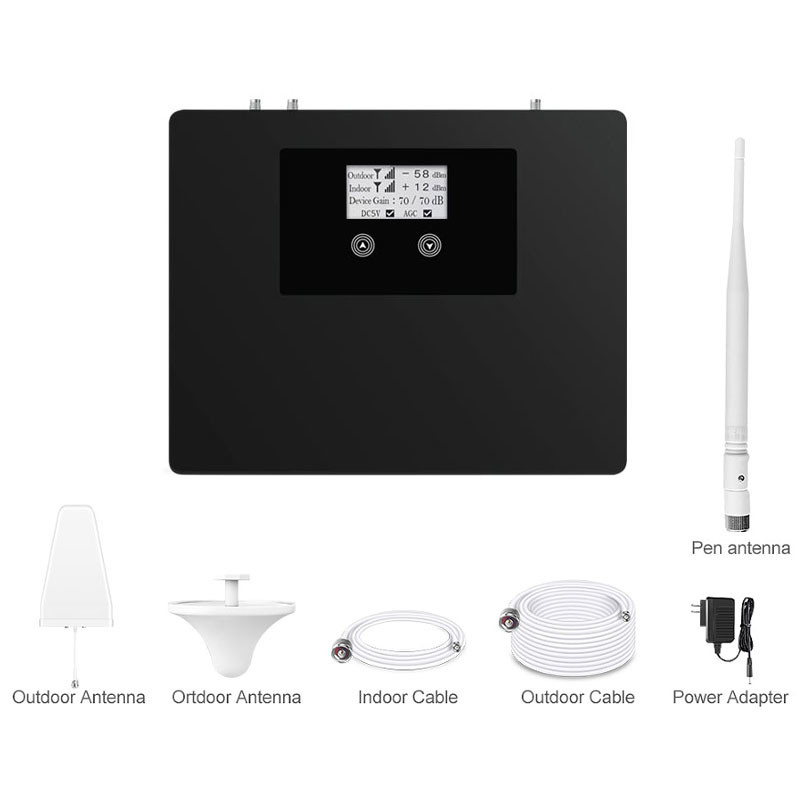

Packaging Including:
1. GSM 900MHz DCS 1800MHz Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Omni antenna and Ceiling antenna
5. 5 meters cable
6. 20 meters cable
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
|
