Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: MS-D3
Document: DCS 1800MHz B011A Signal Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1710-1785/1805-1880MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Grey ,Customized |
ALC Intelligent Function: |
Done |
Connector: |
N-Female Connector |
Warranty: |
3 Years |
Products Type: |
Repeater Gsm Lte, Gsm Signal Booster 4g |
Frequency Range: |
1710-1785/1805-1880MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Grey ,Customized |
ALC Intelligent Function: |
Done |
Connector: |
N-Female Connector |
Warranty: |
3 Years |
Products Type: |
Repeater Gsm Lte, Gsm Signal Booster 4g |

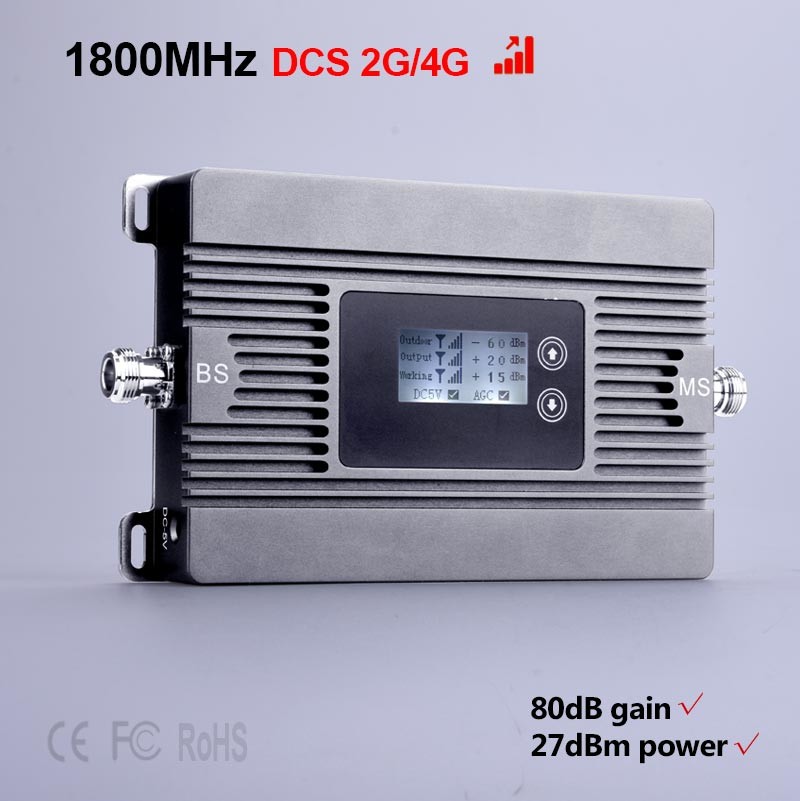

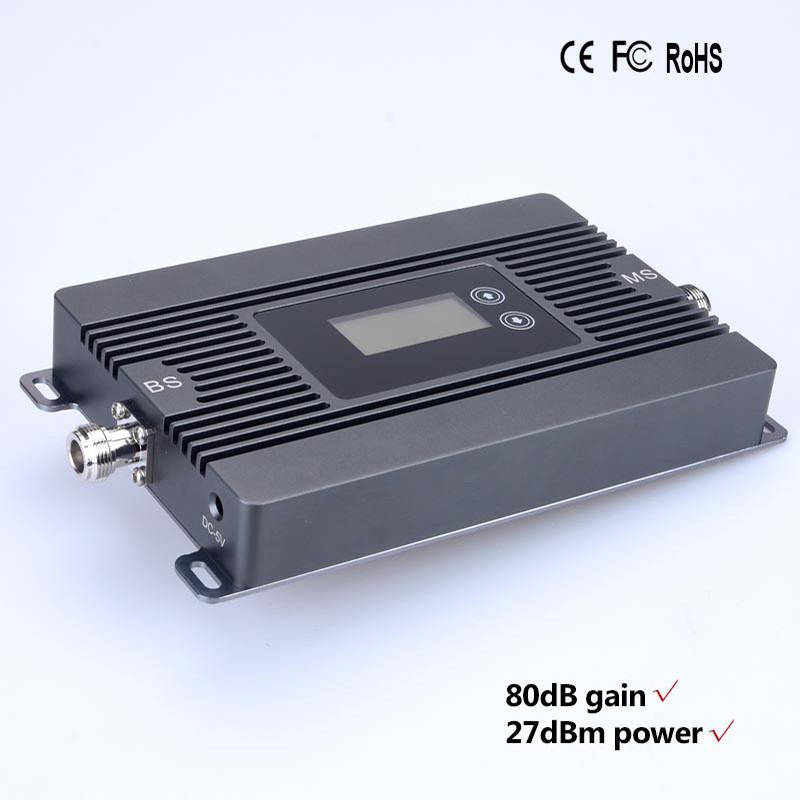

2G 4G Cell Phone Signal Amplifier Single Band GSM Signal Booster
1800MHz Cell Phone Booster Ampilifier Single Band 2G/4G Mobile Signal Repeater

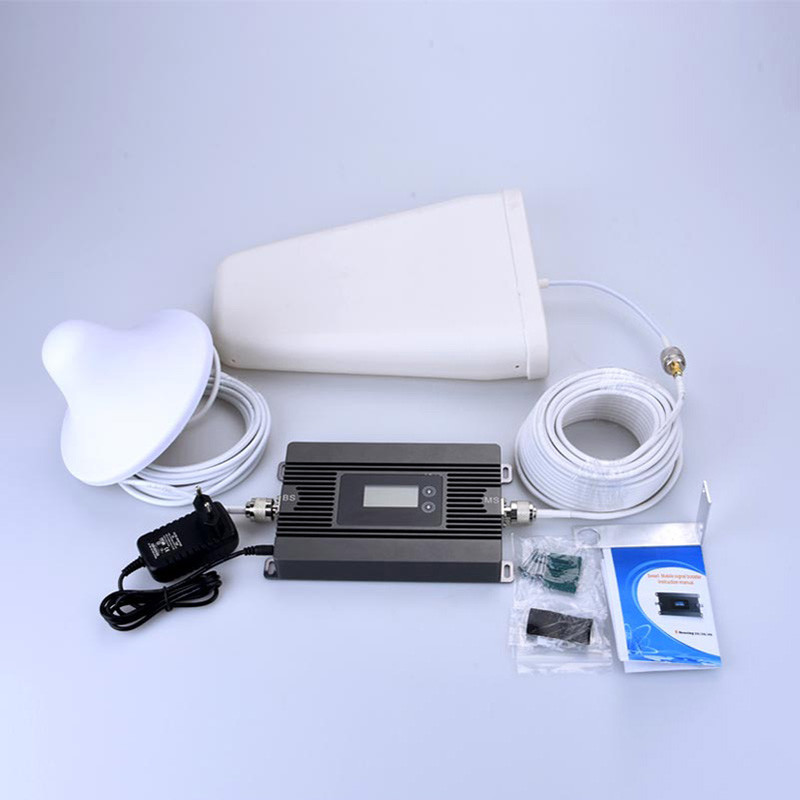

The 1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz |
|
Downlink |
1805-1880MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) Connector |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Key words: |
mobile signal booster |
|
|
Place of Origin: |
Guangdong, China |
|
Further detail pls click here for downloading the products specification:
DCS 1800MHz B011A Signal Repeater.pdf
Model No :MS-D
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 3) 1800MHz -- Uplink frequency: 1710-1785MHz/Downlink frequency : 1805-1880MHz
Network support : DCS 4G data
Gain :80±2dB
Power Supply :AC110V～220V;DC+5V/2A
Connector Type: N-female connector.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
Product Description
We are manufacturer, and have our own factory.
Customer Notification
Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
