Product Details:
|
| Frequency Range: | According To Customer's Need,Uplink:791-821MHz,Downlink:832-862MHz | Gain: | 70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
|---|---|---|---|
| Output Power: | 17-20dBm | Color: | White,Blue,Cuztomized |
| AGC Intelligent Function: | Done,31dB @ 1dB/ Step | ALC Intelligent Function: | Done |
| MGC: | Done | In-band Ripple: | ≤ 3dB |
| RF Connect Type: | SMA/Female | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
| Inter-Modulation Attenuation ACPR: | ≤ -40dBc / 30kHz (measured Under Rated Output Power) | Weight: | 1.85kg |
| Packing Size: | 54x19x16cm | Warranty: | Two Years |
| Highlight: | ROHS 4G Cell Phone Signal Repeater,800MHz Cell Phone Signal Repeater,800MHz Signal Booster |
||

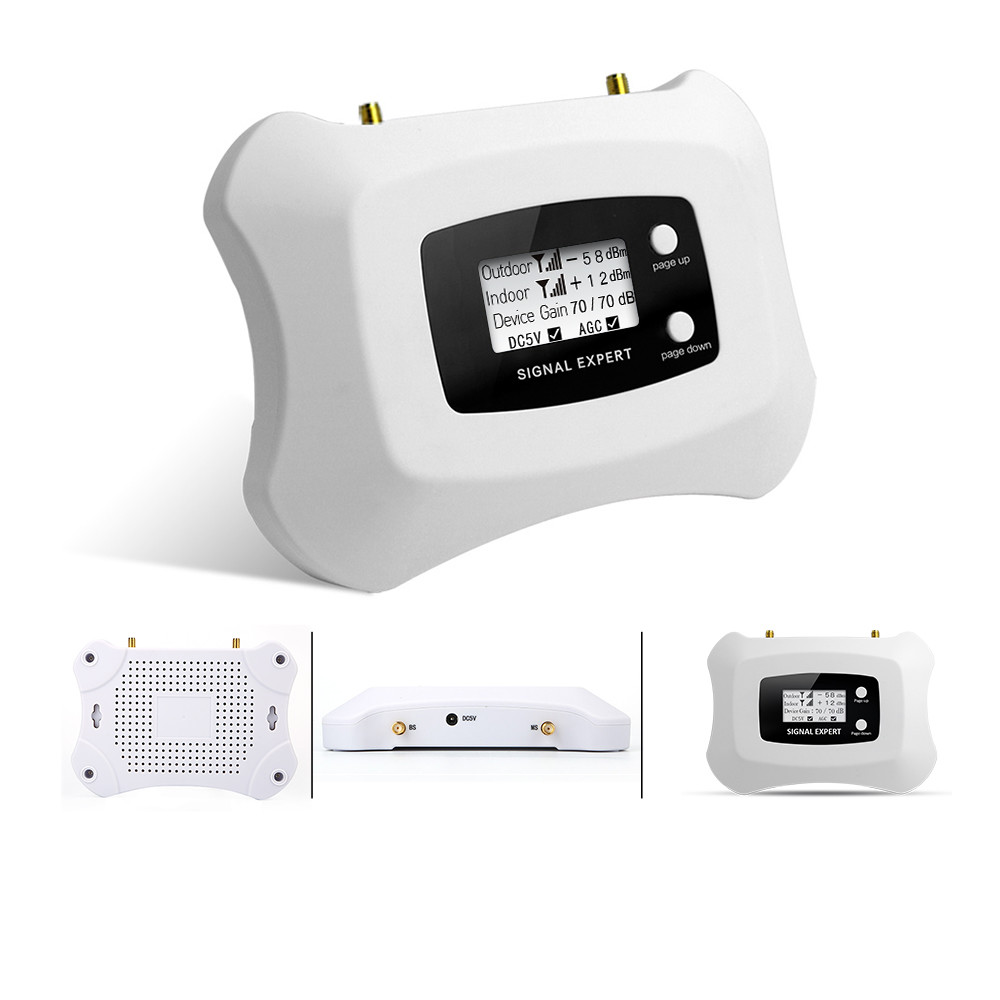

4G Cell Phone Signal Repeater
4G 800MHz Mobile Signal Booster Amplifier Cell Telephone Signal Repeater
Technical Specifications
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 791-821MHz |
| Downlink | 832-862MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 30MHz | |
| Gain | 70dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 20dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |

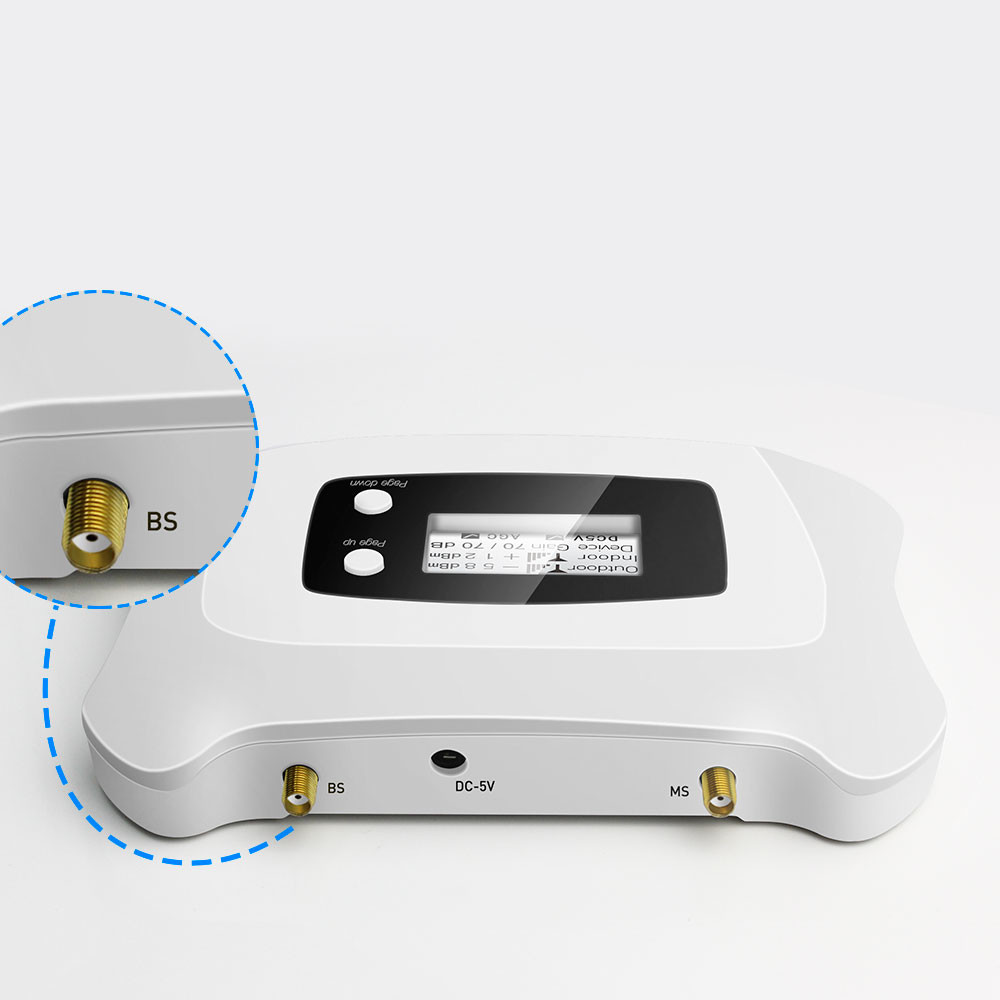

| RF Connector(Customers to Choose) | SMA (Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Dimensions | 165*130*40 (mm) | |
| Weight | ≤0.8 kg(Net) | |
| Production Capacity | 10000/Per Month | |
Further detail pls click here for downloading the products specification:
Single band LTE 800MHz RF Repeater.pdf
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
