OEM ODM 5G Signal Booster For Home
| Support Frequency Range: | Customized | Device Gain: | 80-90dB |
| Device Output: | Uplink: 23±3dBm,Downlink:33±3dBm | Color For Choice: | White Cuztomized |
| AGC Intelligent function: | Done,31dB @ 1dB/ Step | ALC Intelligent function: | Done |
| MGC Function: | Done | System Delay: | ≤ 5μs |
| RF Connect Type: | N/Female | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
| Inter-Modulation Attenuation ACPR: | ≤ -40dBc / 30kHz (measured Under Rated Output Power) | Device DWeight: | 12kg |
| High Light: | ODM 5G Signal Booster,ROHS 5G Signal Booster,ODM 5G Cell Booster |
||
OEM ODM 5G Signal Booster For Home
Customized High power all network 2G 3G 4G 5G signal booster- 2U chassis - Worldwide
Products Description
Signal Booster Frequency Range
|
CDMA800M Uplink:825~835MHz Downlink:870-880MHz |
|
GSM900M Uplink:904~915MHz Downlink:949-960MHz |
|
GSM900M Uplink:889~904MHz Downlink:934-949MHz |
mobile signal booster technical parameter
|
mobile signal booster |
Uplink |
Downlink |
|
Max Gain |
80 |
90 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥20 |
≥20 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
23±3 |
33±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
Further detail pls click here for downloading the products specification:
Signal Booster Parameter index
|
Working Voltage |
DC24V |
|
Working Current |
<5A |
|
Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
N-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
480X378X88mm |
|
2U Weight |
8.5kg |
Signal Booster Products Feature

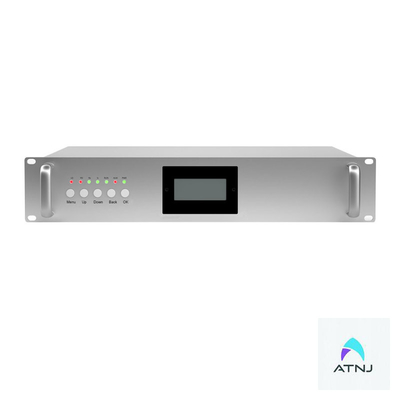

⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
⭐ A variety of appearance customization.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
-
AIt works great, the frequency can be adjusted to Vodafone correctly,and LTE speed goes fast.
-
Ac’est une bonne qualité
-
ALivraison dans un délai acceptable par voie aérienne. Qualité : j'attends d'installer totalement l'appareil.
