850MHz 1800MHz 2100MHz Tri Band Repeater Automatic Gain Control

850MHz 1800MHz 2100MHz Tri Band Repeater Automatic Gain Control

Brand Name:	ATNJ
Model Number:	AT-D-CDW
MOQ:	5Pcs
Price:	USD+480---600+kit
Payment Terms:	T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Document:

AT011-Digital Tril band 850...00.pdf

850MHz Frequency Range:

824-849MHz / 869-894MHz

1800MHz Frequency Range:

1710-1785MHz / 1805-1880MHz

2100MHz Frequency Range:

1920-1980MHz / 2110-2170MHz

Products Type:

4G Signal Repeater

Power Supply:

100---265V

Color For Choice:

Black, White Or Customized

Packing Weight:

5kg

Packaging Details:

Standard neutral packing,48x46x18cm(1 kit),

Supply Ability:

1000+unit+per day.

Highlight:

2100MHz Tri Band Repeater

850MHz Tri Band Repeater

850MHz Tri Band Amplifier

Product Description

850MHz 1800MHz 2100MHz Tri Band Repeater Automatic Gain Control

Digital Tri Band 850 1800 2100MHz Band Selected Cellular Signal Repeater Amplifier

General :

The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Specification

SPECIFICATIONS		PARAMETERS
Frequency Range		CDMA850	824MHz - 849MHz/ 869MHz - 894MHz
		LTE1800	1710MHz - 1785MHz/ 1805MHz - 1880MHz
		UMTS2100<E2100	1920MHz - 1980MHz/ 2110MHz - 2170MHz
Band Width		CDMA850	Supports 2*20MHz from 0.2 to 20MHz
		LTE1800	Supports 2*20MHz from 0.2 to 20MHz
		UMTS2100<E2100	Supports 2*20MHz from 0.2 to 20MHz
Gain		Uplink 65dB
		Downlink 70dB
Automatic Gain Control		31dB
MGC (Step Attenuation)		31dB@ 1dB /Step
Output Power		Uplink 13dBm
		Downlink 20dBm
Spurious Emission	9 kHz -150 kHz/1kHz	≤ - 36dBm
	150 kHz - 30 MHz/10kHz	≤ - 36dBm
	30 MHz - 1 GHz/100kHz	≤ - 36dBm
	1 GHz- 12.75 GHz/1MHz	≤ - 30dBm
ACPR		Uplink Fully comply with 3GPP 36.106
		Downlink Fully comply with 3GPP 36.106
Unwanted emissions		Fully comply with 3GPP 36.106
VSWR		≤ 2
Ripple	CDMA	≤ 3dB
	L1800	≤ 2dB / 3.84MHz
	UMTS	≤ 3dB @ BW Config
Noise Figure		≤ 8dB
Delay		≤ 3.5 us
I/O Impedance		50Q
RF Connector(Customers to Choose)		N - Type (Female)
Operating Temperature		-10°~+55°
Power Supply		100 - 265V
Power consumption		300W
Environment Conditions		IP55
Humidity		≤ 90%
Weight		5kg
Size		416x268x71 mm

Further detail pls click here for downloading the products specification:

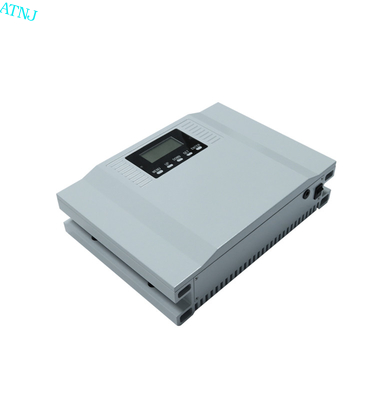

850MHz 1800MHz 2100MHz Tri Band Repeater Automatic Gain Control 0

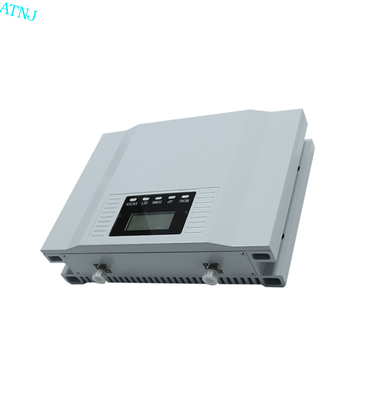

850MHz 1800MHz 2100MHz Tri Band Repeater Automatic Gain Control 1

FAQ

Q1 Could you send us antenna sample for qulification?
A : Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.

Q2 What's the minimum order of your company?
A : Our company didn't define the min order, we will offer any quantity demands.

Q3 May I visit your company?
A : We will be always right here waiting for you.

Q4 Are you a manufacture or a trading company?
A : We've manufactured mobile signal booster with Professional Technology for ten more years.

Q5 Do you accept customizable antenna?
A : Yes, we accept OEM & ODM.

Q6 What't your sample lead time?
A : We will ship within 15days after been paid.

Q7 What is your payment terms?

A : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
