Features of TR8165 RF Sampling Transceiver:
1. 8 differential transmitters, maximum sampling rate of 12 GS/s
2. 8 differential receivers, maximum sampling rate of 6 GS/s
3. 2 feedback receivers, maximum sampling rate of 6 GS/s
4. Input frequency: 400 MHz-8000 MHz
5. Maximum RF bandwidth: 800 MHz (1600 MHz in four-channel mode)
6. Integrated DSA function
7. Highly integrated clock synthesizer
8. Multi-chip phase synchronization
9. Support for TDD and FDD applications
10. Support for split mode 4T4R1FBx2
11. 4- 32.44 Gbps, JESD204B/JESD204C digital interface

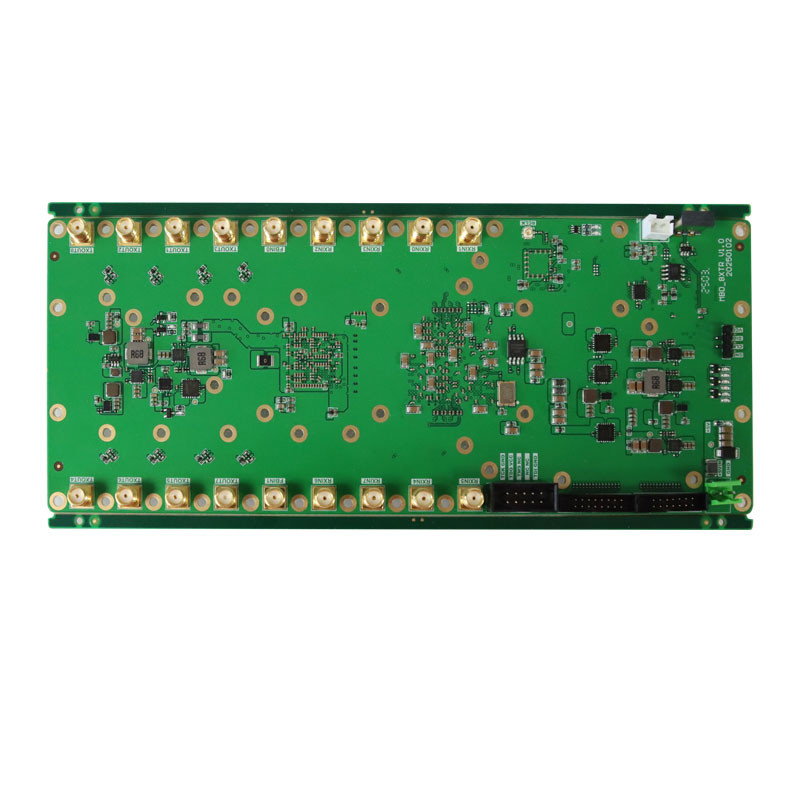

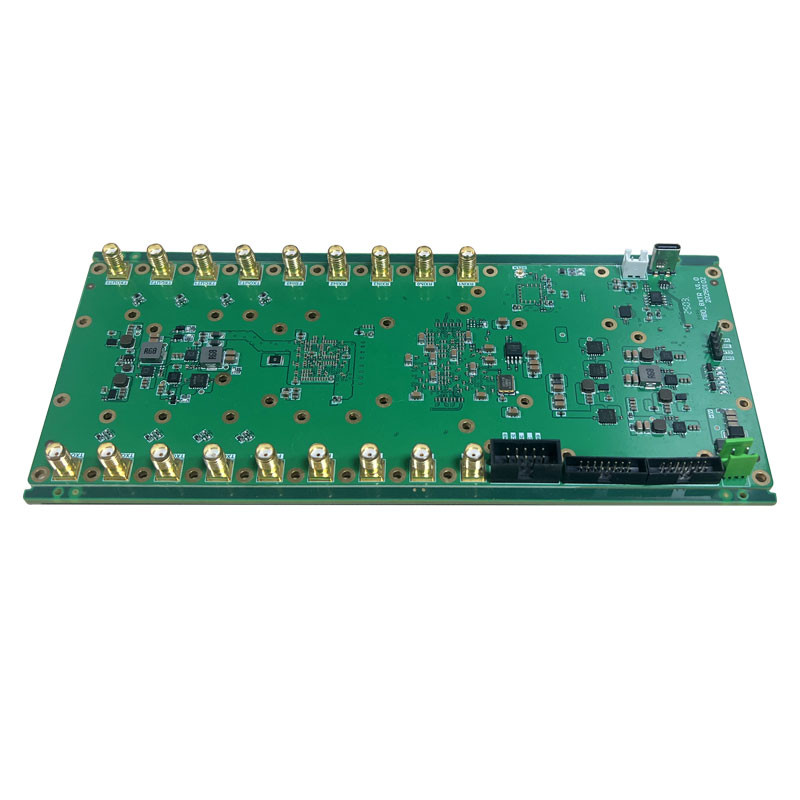

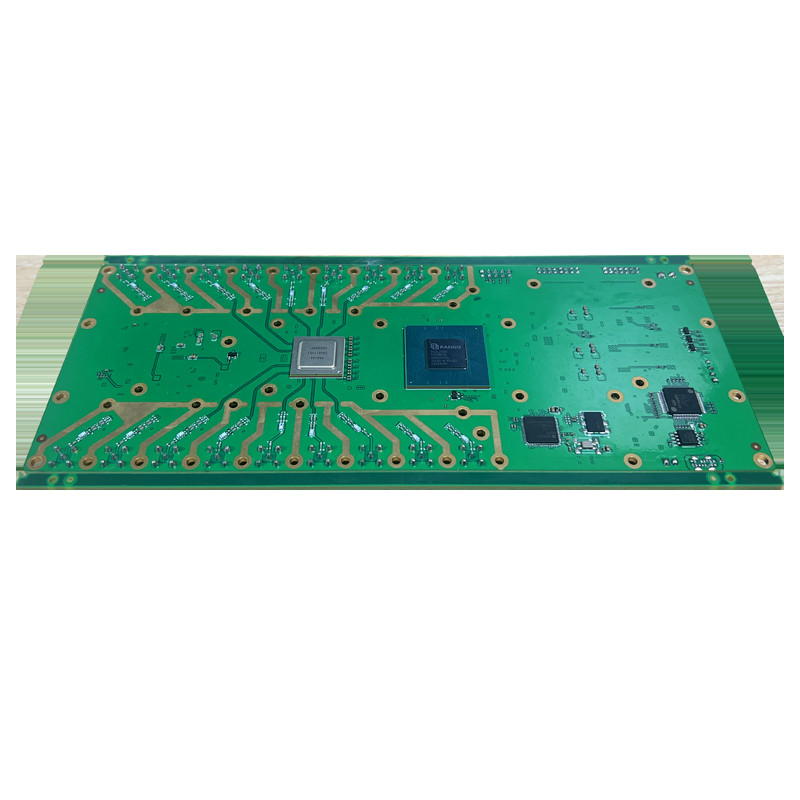

Board Characteristics:
1. RF Transceiver:8T8R, RF direct sampling, ADC sampling frequency is 2949.12 MHz. DAC sampling frequency is 5898.24 MHz. ADC sampling bandwidth is 100 MHz
2. FPGA Utilizes the domestically produced Ziguang Tongchuang PG2L200H. Offers 200K logic elements.Equipped with 740 DSP multipliers.
3. Clock Configuration Chip: Allows for configurable frequency settings based on requirements.
4. MCU: Responsible for initializing and configuring the clock chip and TR8165.
Communicates with the FPGA via serial port.
