Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: DS-33-GDW-4
Document: 2watt Digital Dual Band 900...33.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+820-900+PCS
Packaging Details: Standard neutral packing
Delivery Time: 15 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-910MHz / 935-955MHz |
1800MHz Frequency Range: |
1745-1765MHz / 1840-1860MHz |
2100MHz Frequency Range: |
1920-1935/2110-2125MHz; 1935-1950/2125-2140MHz |
Connector Type:: |
N/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G, 3G, 4G, Voice |
Cellular Networks: |
UTMS GSM LTE NR, 2G/3G/4G |
900MHz Frequency Range: |
890-910MHz / 935-955MHz |
1800MHz Frequency Range: |
1745-1765MHz / 1840-1860MHz |
2100MHz Frequency Range: |
1920-1935/2110-2125MHz; 1935-1950/2125-2140MHz |
Connector Type:: |
N/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G, 3G, 4G, Voice |
Cellular Networks: |
UTMS GSM LTE NR, 2G/3G/4G |

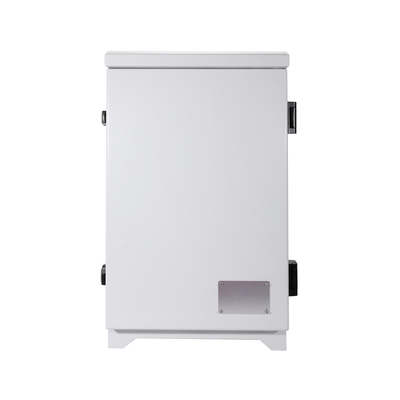

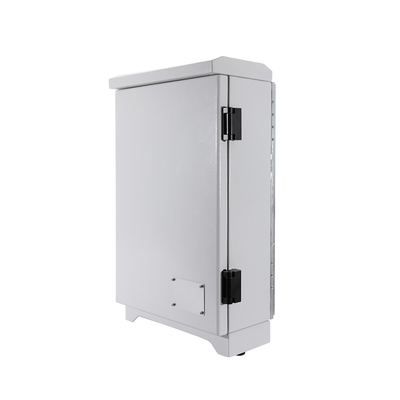

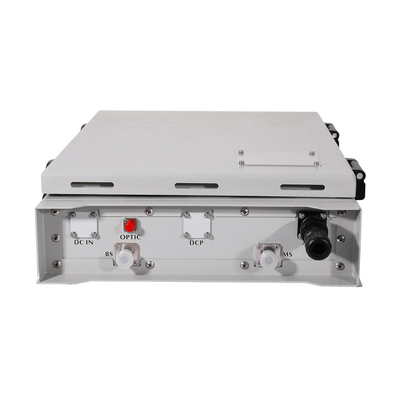

Digital selective band booster hight gain for LTE repeater 900MHz 1800MHz 2100MHz phone signal booster
Model No : DS-33-GDW-4
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency : 890-910MHz / Downlink frequency : 935-955MHz
(Band 3) 1800MHz -- Uplink frequency : 1745 - 1760MHz / Downlink frequency : 1840 - 1860MHz
(Band 1) 2100MHz -- Uplink frequency : 1920 - 1935MHz / Downlink frequency : 2110 - 2125MHz
(Band 1) 2100MHz -- Uplink frequency : 1935 - 1950MHz / Downlink frequency : 2125 - 2140MHz
Network support : 2G 3G 4G Voice
Gain : 85±3dB
Output power : 2watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
| Single Band Repeater with AGC/MGC | ||||
| Device Model | DS-33-GDW-4 | |||
| 900MHz Frequency Range | UplinK: 890-910MHz Downlink: 935-955MHz | |||
| 1800MHz Frequency Range | UplinK: 1745-1765MHz Downlink: 1840-1860MHz | |||
| 2100MHz Frequency Range | UplinK: 1920-1935MHz Downlink: 2110-2125MHz | |||
| 2100MHz Frequency Range | UplinK: 1935-1950MHz Downlink: 2125-2140MHz | |||
| Gain | UL: 75±3dB DL: 80±3dB | |||
| Device Output Power | UL: 20±2dBm DL: 33±2dBm | |||
| Bandwidth | Wide Range(Support 0.2--20MHz adjustable | |||
| Ripple in Band | ≤6dB | |||
| Noise Figure @ Max.Gain | ≤8dB | |||
| V.S.W.R | ≤1.8dB | |||
| Group Delay | ≤ 10µs | |||
| MTBF | >50000Hours | |||
| Power Supply | 195-265 VAC | |||
| Power Comsumption | ≤ 100W | |||
| Barometric pressure | 55 kPa -106 kPa | |||
| Mechanical Specification | ||||
| RF Connector | N/F | |||
| Cooling | Heatsink Convection Cooling | |||
| Dimension | 596 x 400 x 203.5 mm | |||
| Net Weight | ≤ 20 kg | |||
| Installation Type | Wall Installation or Desk | |||
| Environment Conditions | IP65 | |||
| Origin | Shenzhen | |||
| Operating Temperature | -25°C to +55°C | |||
| Storage temperature range | -40°C to +85°C | |||
| Relative humidity | 5% - 95% | |||
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater(Customized)
Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
4. Q: What's your device lifespan?
A: Normally our device can be used 5-10 years.
5. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
6. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
