Light weight Digital Band Selective Repeater Booster For WCDMA 2G 3G 2100MHz

Product Description:

Mobile Signal Repeater is a selective band repeater, designed to amplify GSM/CDMA/DCS/3G/4G signal coverage in various types of indoor environment. It can help people to improve mobile network coverage, and provide high quality signals for voice and data communication. With the output power of 17-20dBm, this repeater is made of lightgrey material, and it has a compact size of 234*230*52 (mm). It can be used in an operation temperature from -25℃~+55℃ and the weight is less than 3kg. This Band Selective Repeater is ideal for houses, offices, hotels, malls, and other places where weak signal is a common issue.

Features:

To optimize and enhance the performance of existing mobile networks, this device provides an all-in-one solution. This device consists of several innovative features to give the users a better experience.

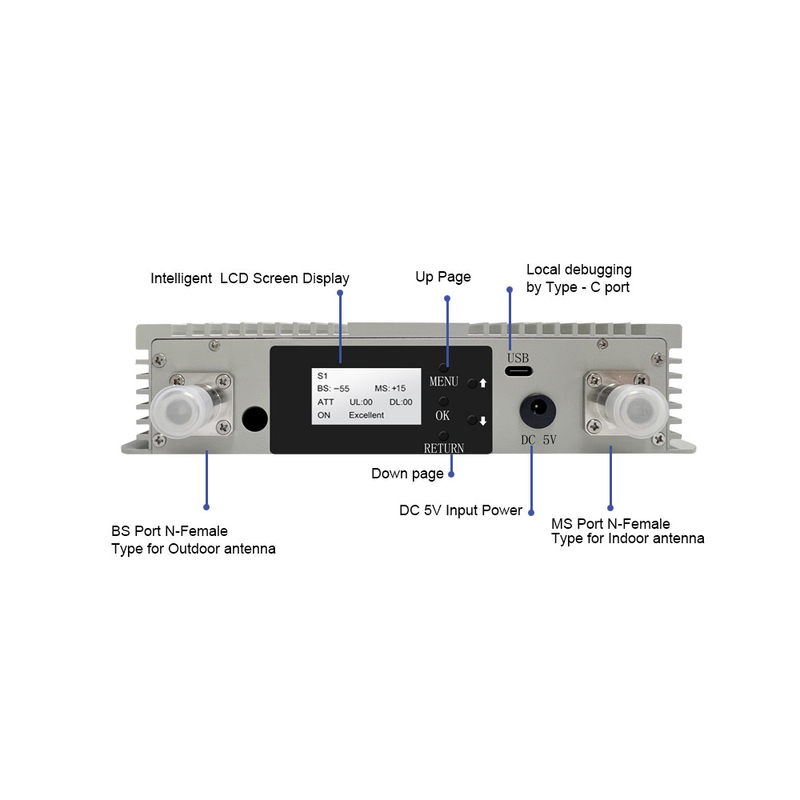

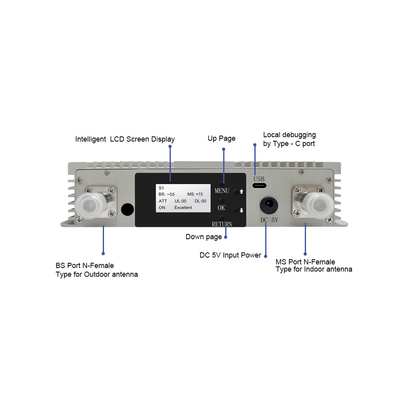

These features encompass an LCD display to indicate the signal strength in terms of input and output, auto isolation detection, auto gain control, auto level control as well as 0.2MHz to 20MHz bandwidth adjustment. Moreover, the center frequency is movable and there is a smart LCD to guide the user in installation. Lastly, the device can be controlled and monitored through a mobile application (APP).

In this way, this device offers users a one-stop solution to improve their mobile network experiences with ease and convenience.

Technical Parameters:

The frequency range of 2100MHz is UL1920–1980MHz and DL2110–2170MHz.

The bandwidth of 2100MHz is 60 MHz, which supports 2 sub-bands from 0.2 to 20 MHz.

The gain of UL is 65dB, while the gain of DL is 70dB.

The output power of UL is 17±3dBm and the output power of DL is ≥20±3dBm.

The Automatic Gain Control is 31dB.

The MGC (Step Attenuation) is 31dB@ 1dB/Step.

• 9 kHz -150 kHz/1kHz ≤-36dBm
• 150 kHz - 30 MHz/10kHz ≤-36dBm
• 30 MHz - 1 GHz/100kHz ≤-36dBm
• 1 GHz- 12.75 GHz/1MHz ≤-30dBm

ACPR is fully compliant with 3GPP 36.106.

Unwanted emissions are fully compliant with 3GPP 36.106.

The out of band gain of 2100MHz is UL≤ 30 dB and DL≤ 30 dB when 1MH≤f_offset＜5MHz.

EVM is ≤8.

VSWR is ≤2.

The ripple of 2100MHz is ≤6dB.

The noise figure is ≤5dB.

The delay is ≤3μs.

The I/O Impedance is 50Ohm.

The RF Connector is N-Type (Female).

The remote control is cloud WEB platform by SIM card.

The local control is WIFI/ Type-C port. Bandwidth adjustment can be done by Type-C only.

The operating temperature is from -25°~+55°C.

The power supply is DC 24V/5A.

The power consumption is ≤ 75W.

The environment condition is IP43.

The humidity is ≤90%.

The weight is ≤3kg.

The size is 234*230*52 (mm).

Applications:

ATNJ's DS-EGSM mobile signal repeater is a selective band repeater that can improve weak signal or no signal areas in a coverage area. This digital band selective repeater is capable of uplink and downlink signal amplification and can work in the 880-915MHz frequency range. It uses a DC 24V/5A power supply and has an output power of 17-20dBm. The product has been certified with CE, ROHS, and CCC and is available in a neutral standard package. The minimum order quantity is 5 and the price range is between USD 280-300. The delivery time is 5-10days and payment terms can be made through T/T, Paypal, or Western Union. This product has a maximum supply capacity of 10000 and a weight of ≤3kg.

Customization:

Mobile Signal Repeater

Brand Name: ATNJ

Model Number: DS-EGSM

Place of Origin: Guangdong China

Certification: CE,ROHS,CCC

Features: Selective band repeater, Digital Band selective repeater, Selective band repeater

Minimum Order Quantity: 5

Price: ＄280-300

Packaging Details: Neutral standard package

Delivery Time: 5--10days

Payment Terms: T/T,Paypal,Western Union

Supply Ability: 10000

Noise Figure: ≤5dB

Operation Temperature: -25℃~+55℃

Power Supply: DC 24V/5A

Color: Lightgrey

EVM: ≤8

Support and Services:

We are here to provide technical support and services for our Mobile Signal Repeater. Our team of engineers and technicians are highly trained and experienced in providing quality support for our products.

We offer a variety of services to ensure that your Mobile Signal Repeater is functioning properly and meets your needs. We provide installation assistance, troubleshooting, product maintenance, and warranty services.

We are also committed to providing ongoing customer service and support. We have a dedicated team of customer service representatives that are available to answer any questions or concerns you may have regarding our Mobile Signal Repeater.

If you have any questions or concerns about our Mobile Signal Repeater, please do not hesitate to contact us. We are here to ensure that you have the best experience possible with our products.
