Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-GDW
Document: 900-1800-2100MHz.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+315---330+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
Band1 2100MHz+Band8 900MHz+Band 3 1800MHz |
Device Gain: |
65±2dB |
Output Power: |
17dBm |
Color: |
Black |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5μs |
RF Connect Type: |
N/F |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Packing Weight: |
10kg |
Packing Size: |
48x46x18cm |
Frequency Range: |
Band1 2100MHz+Band8 900MHz+Band 3 1800MHz |
Device Gain: |
65±2dB |
Output Power: |
17dBm |
Color: |
Black |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5μs |
RF Connect Type: |
N/F |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Packing Weight: |
10kg |
Packing Size: |
48x46x18cm |

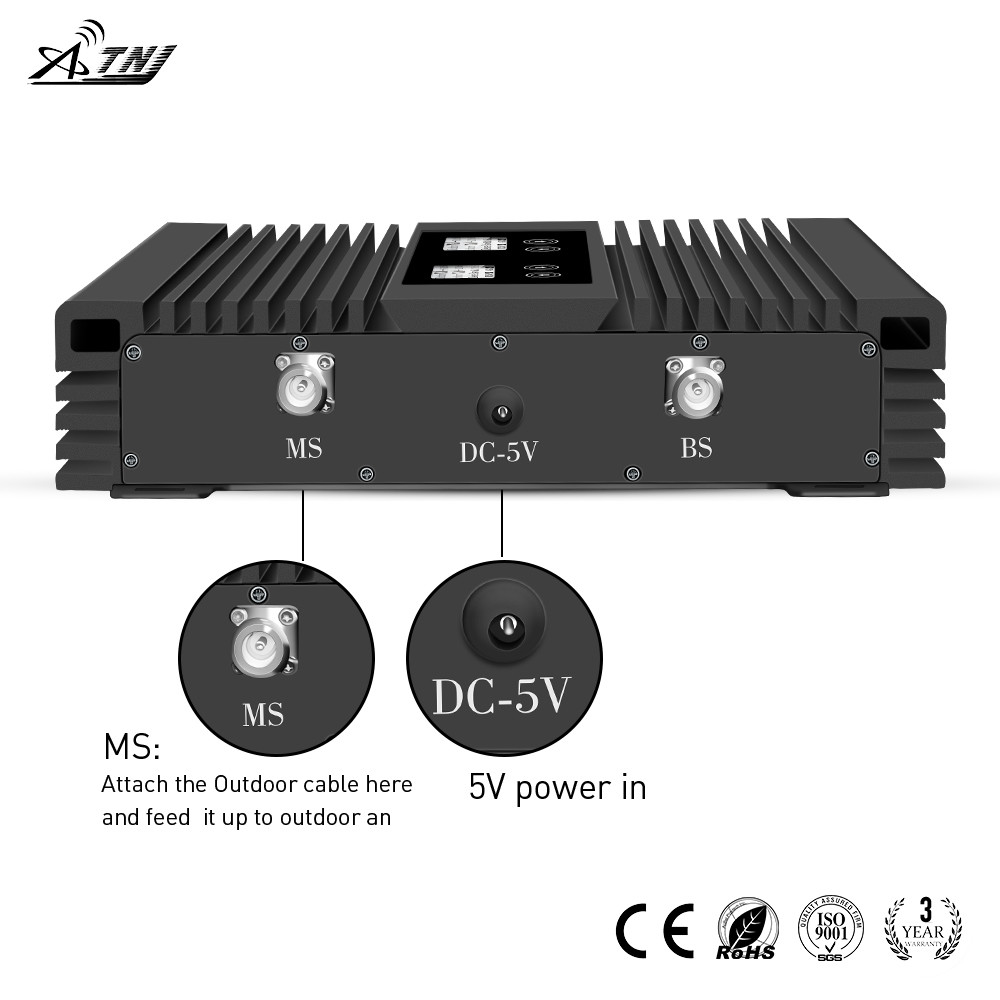

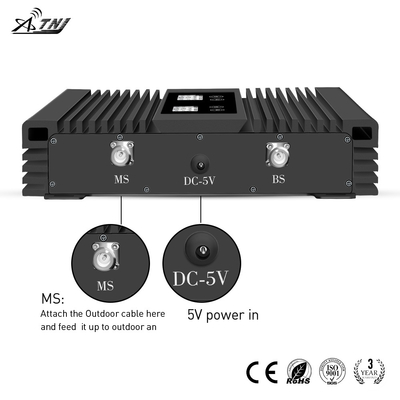

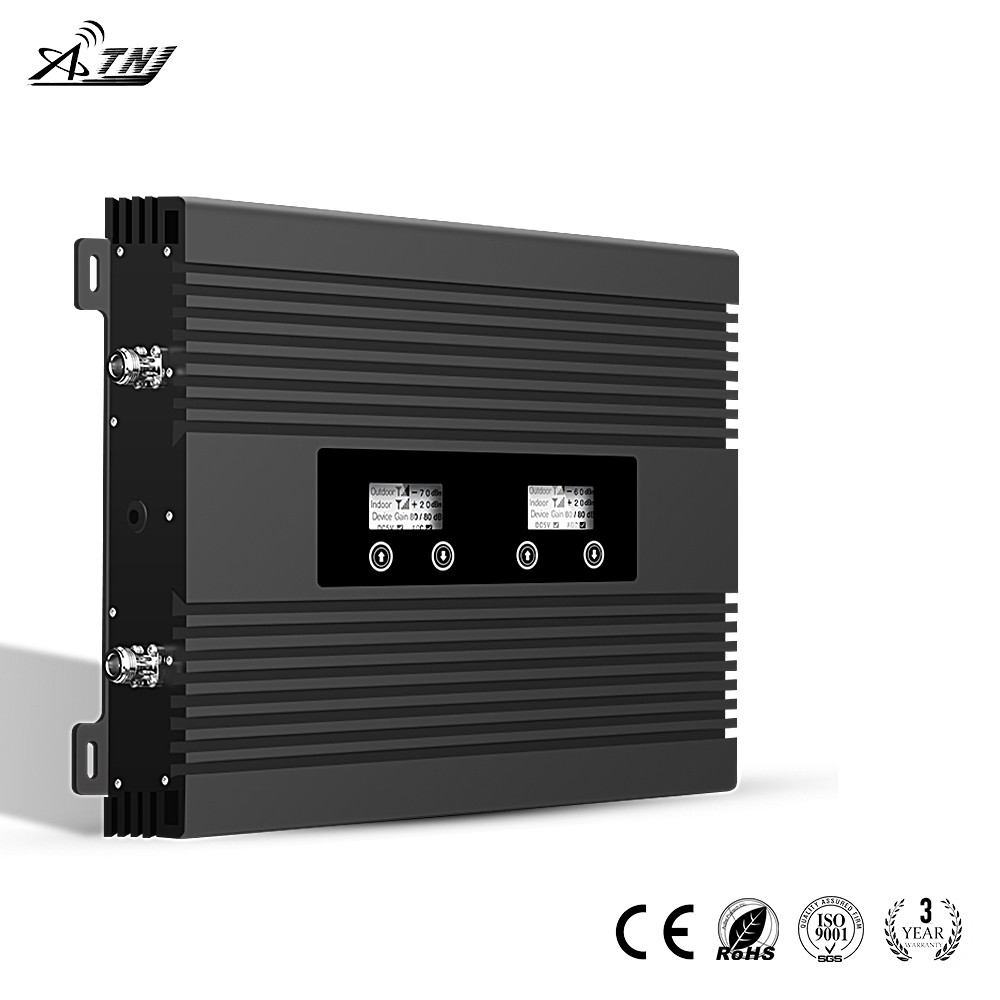

900MHz 1800MHz 2100MHz Tri Band Repeater
900/1800/2100MHz Mobile Signal Booster Tri Band 2G 3G 4G Repeater Cellular Amplifier
Specification:
|
Frequency |
Uplink |
Downlink |
|||
|
GSM 900MHz |
890-915MHz |
935-960MHz |
|||
|
4G 1800MHz |
1710-1785MHz |
1805-1880MHz |
|||
|
3G 2100MHz |
1920-1980MHz |
2110-2170MHz |
|||
|
Max. Gain |
65dB±2dB |
65dB±2dB |
|||
|
Max. Output Power |
17dB±2dB |
17dB±2dB |
|||
|
Bandwidth |
Wide Band |
||||
|
Ripple in Band |
≤ 8dB |
||||
|
Noise Figure |
≤ 6dB |
||||
|
VSWR |
≤ 2.0 |
||||
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|||
|
1~12.75GHz |
≤ -30dBm |
||||
|
Time Delay |
≤ 1.5 μs |
||||
|
MTBF |
> 50000 hours |
||||
|
Impedance |
50 ohm |
||||
|
Power Supply |
AC 90-240V,DC 5V/3A |
||||
|
Power LCD |
Power indicator |
||||
|
Alarm LCD |
Guide |
Done |
|||
|
Detection |
Done |
||||
|
Mechanical Specification |
|||||
|
RF Connector |
N-Female |
||||
|
Cooling |
Heatsink Convection cooling |
||||
|
Humidity |
< 90% |
||||
|
Operating Temperature |
-10°C ~ +55°C |
||||
|
Environment Conditions |
IP40 |
||||
|
Installation Type |
Wall Installation |
||||
|
Size |
323x269x58mm |
||||
|
Gross Weight |
2.5kg
|
||||
Further detail pls click here for downloading the products specification:
900+1800+2100 A009 Repeater.docx.pdf
FAQ
Q1:Do you have CE or any other certification?
A:Yes,we CE, ISO, ROHS and CCC certification,etc.
Q2:How about gain and output power of your device?
A:Different models, gain and output power are different,for more details, please contact us.
Q3:How long is warranty period?
A:The warranty is 12 months. And we offer 7*24 technical support
Q4:What's your device lifespan?
A:Normally our device can be used 5-10 years.
Q5:how many square meters can be covered?
A:For different models, the covered square meters are different.
Q6:Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
Q7:How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
