GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: AS-900

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+40---49+kit

Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

SMA Connector Cell Phone Signal Repeater

,

ROHS CCC Cell Phone Signal Repeater

,

20dBm Cell Phone Signal Amplifier

Frequency Range:
890-915MHz/935-960MHz
Gain:
70dB
Output Power:
17-20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female Connector
Color:
Blue And White
Coverage:
100-300㎡
Products Type:
Network Booster 4g Mobile Signal, Amplificador De Seal
Frequency Range:
890-915MHz/935-960MHz
Gain:
70dB
Output Power:
17-20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female Connector
Color:
Blue And White
Coverage:
100-300㎡
Products Type:
Network Booster 4g Mobile Signal, Amplificador De Seal
GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA

GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA



Cell Telephone Signal Amplifier Mobile Signal Booster Blue Repeater GSM

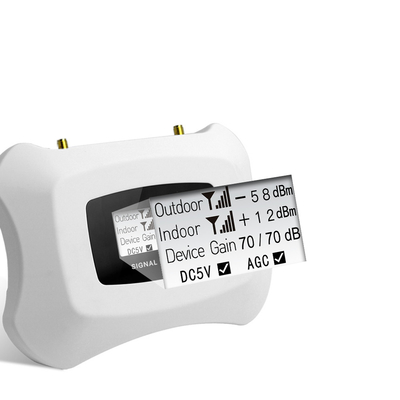

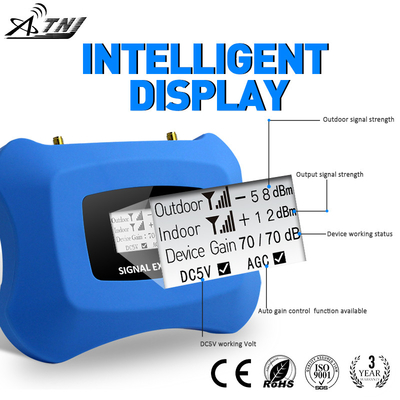

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.



Technical Specifications

Specifications Parameters
Frequency Range (Customers to Choose) Uplink 890-915MHz
Downlink 935-960MHz
Frequency Bandwidth 25MHz
Gain 70dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 20dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) SMA (Female)
Operating Temperature Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Dimensions 165*130*40 (mm)
Weight ≤0.8 kg(Net)
Production Capacity 10000/Per Month

Further detail pls click here for downloading the products specification:

Single band GSM 900MHz RF Repeater.pdf



Product Description

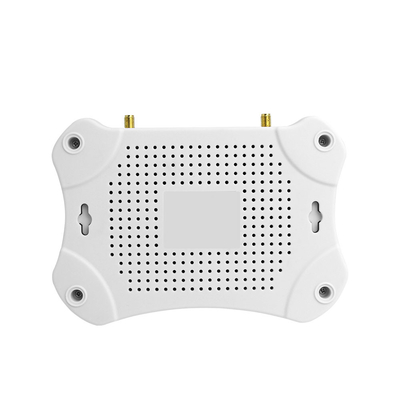

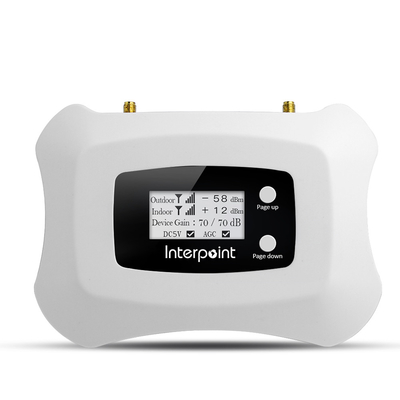

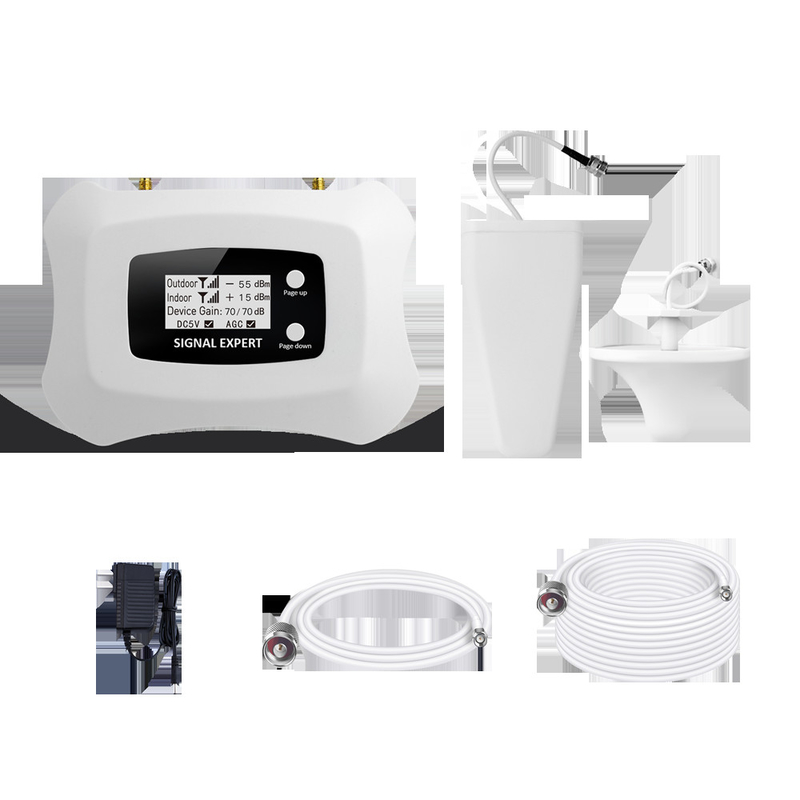

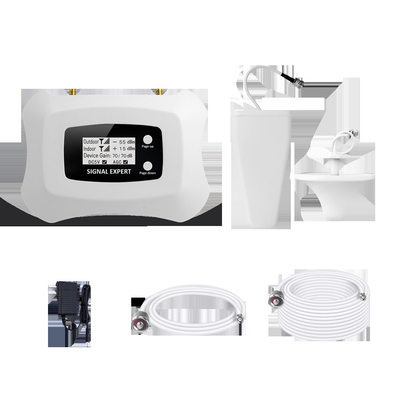

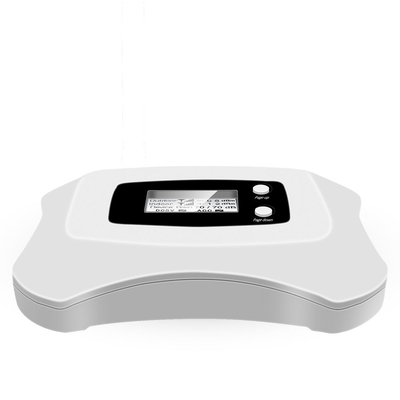

GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA 0GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA 1GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA 2

GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA 3GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA 4

GSM Cell Phone Signal Repeater Amplifier With Four Layer PCBA 5







We are manufacturer, and have our own factory.

Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
●Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
