Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-700
Document: LTE 700MHz B07 Signal Repea...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+50---58+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
According To Customer's Need,Uplink:703-748MHz,Downlink:758-803MHz |
Gain: |
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
Output Power: |
17-20dBm |
Color: |
White,Blue,Cuztomized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5μs |
RF Connect Type: |
SMA/Female Connector |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Frequency Range: |
According To Customer's Need,Uplink:703-748MHz,Downlink:758-803MHz |
Gain: |
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
Output Power: |
17-20dBm |
Color: |
White,Blue,Cuztomized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5μs |
RF Connect Type: |
SMA/Female Connector |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |

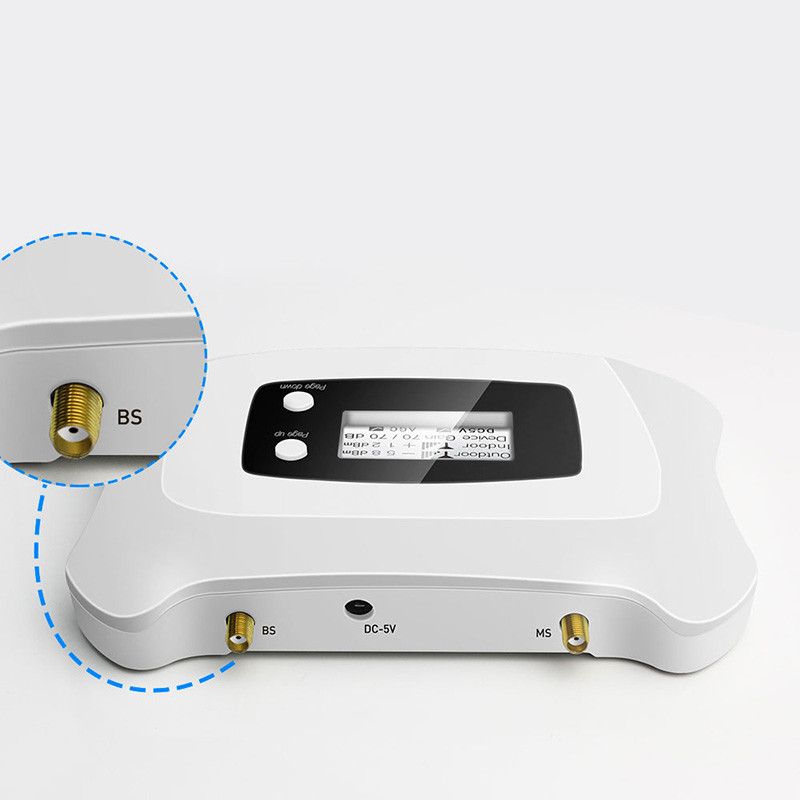

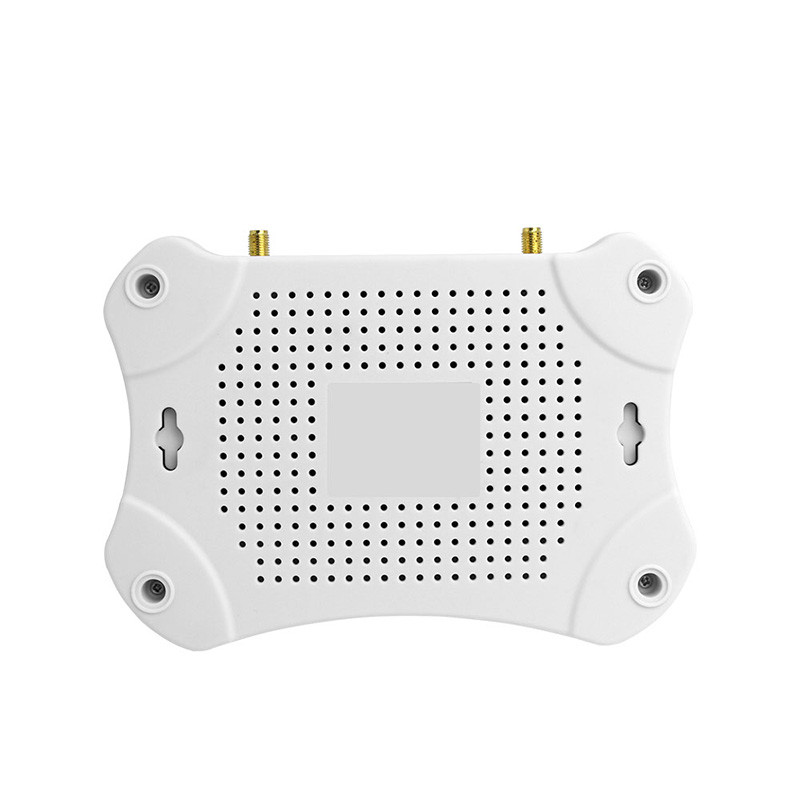

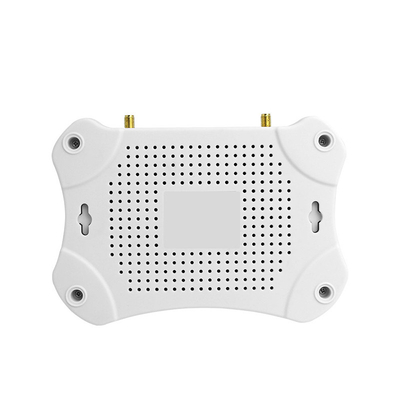

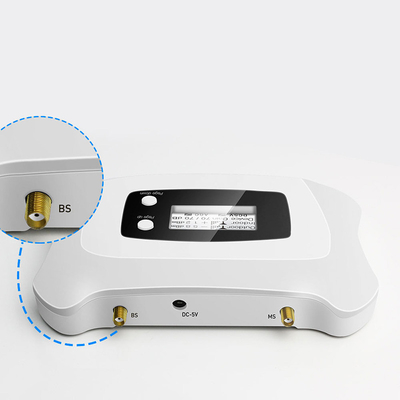

LTE 700MHz Mobile Signal Booster
Cell Telephone Signal Repeater LTE700MHz Mobile Signal Booster Amplifie
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
703-748MHz |
|
Downlink |
758-803MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Origin |
Shenzhen,CN |
|
Further detail pls click here for downloading the products specification:
Single band LTE 700MHz RF Repeater.pdf
Selling Point
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

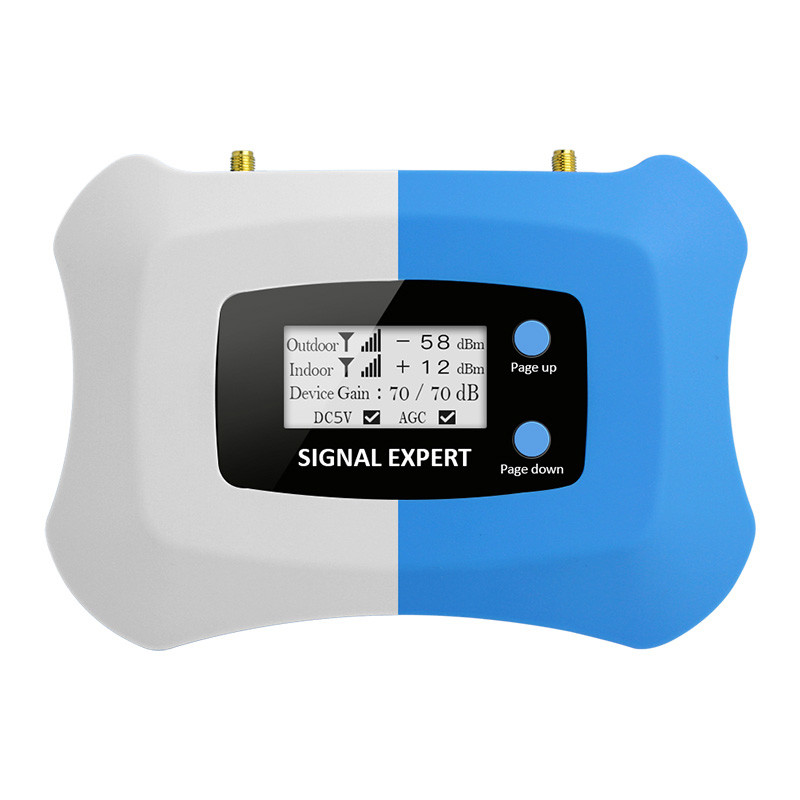

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3.How to check precise signal level in dB?
To interpret signal level with maximum precision, you’ll need to switch your smartphone into Field test mode (FTM). It’s a free application available in the App Store and Google Play Store requiring no extra setups for iOS and Android operating systems respectively. For each OS, the following steps need to be performed:
1. iOS. Type * 3001 # 12345 # * and touch Call
2. Android. Type * # * # 197328640 # * # * to activate
3. Windows. Type # # 3282 # and start.
4. Blackberry. Press TOOLS, SETTINGS, STATUS or OPTIONS, STATUS.
It is important to turn off WiFi for getting the right parameters of 2G, 3G and 4G LTE. If you are unable to search for the Field Test Mode on your smartphone, contact us to help you out with completing the Field Test mode.
