Whilte Length 33cm LP Gain 10dBi Antenna Outdoor Log Periodic

Name: Whilte Length 33cm LP Gain 10dBi Antenna Outdoor Log Periodic
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: LPDA1
Price: 8.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: LPDA1

Trading Properties

Minimum Order Quantity: 5Pcs

Price: USD+7--10+unit

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

2700MHz Signal Booster Antenna

12dBi Signal Booster Antenna

12dBi Outdoor Log Periodic Antenna

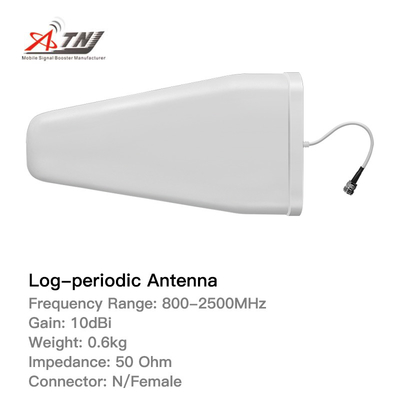

Specifications

Impedance:	50OHm	RF Connect Type:	N Female
Weight:	0.55 Kg	Material:	Zinc Alloy
Gain:	10dBi	Frequency:	700-2700MHz
Color:	Whilte	Products type:	Cell Booster
High Light:	33cm 10dBi Antena , LP 10dBi Antenna , 33cm Antena Outdoor Log Periodic

Product Description

Whilte Length 33cm LP Gain 10dBi Antenna Outdoor Log Periodic

700 - 2700MHz Outdoor Log Periodic 10dBi Antenna for Mobile Phone Signal Repeater

A log-periodic antenna (LP), also known as a log-periodic array or log-periodic aerial, is a multi-element, directional antenna designed to operate over a wide band of frequencies. It was invented by John Dunlavy in 1952.
The most common form of log-periodic antenna is the log-periodic dipole array or LPDA, The LPDA consists of a number of half-wave dipole driven elements of gradually increasing length, each consisting of a pair of metal rods. The dipoles are mounted close together in a line, connected in parallel to the feedline with alternating phase. Electrically, it simulates a series of two or three-element Yagi-Uda antennas connected together, each set tuned to a different frequency.
LPDA antennas look somewhat similar to Yagi antennas, in that they both consist of dipole rod elements mounted in a line along a support boom, but they work in very different ways. Adding elements to a Yagi increases its directionality, or gain, while adding elements to a LPDA increases its frequency response, or bandwidth.

Further detail pls click here for downloading the products specification:

ATNJ Mobile Signal Repeater.pdf

Whilte Length 33cm LP Gain 10dBi Antenna Outdoor Log Periodic 0

Whilte Length 33cm LP Gain 10dBi Antenna Outdoor Log Periodic 4

FAQ:

1 . Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2 . Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3 . Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4 . What is your warranty time?
We promise 1-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5 . Please feel free to contact us if any other questions.
