LTE 700MHz Signal Booster 70dB Gain 20dBm Output

LTE 700MHz Signal Booster 70dB Gain 20dBm Output

Brand Name:	ATNJ
Model Number:	AS-700
MOQ:	5Pcs
Price:	USD+50---58+kit
Payment Terms:	T/T,Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Document:

LTE 700MHz B07 Signal Repea...er.pdf

Frequency Range:

According To Customer's Need,Uplink:703-748MHz,Downlink:758-803MHz

Gain:

70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB,

Output Power:

17-20dBm

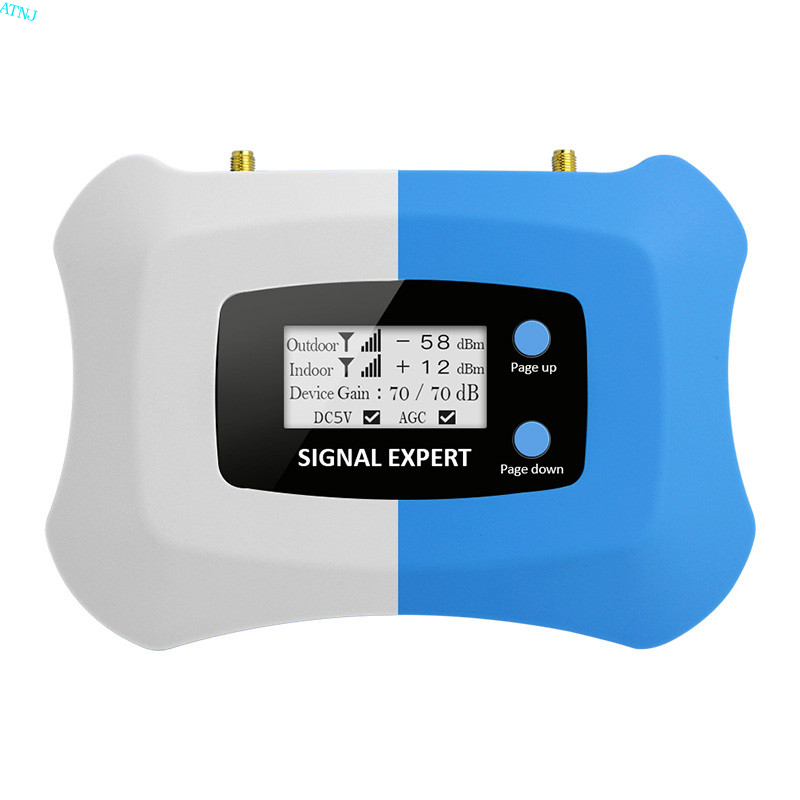

Color:

White,Blue,Cuztomized

AGC Intelligent Function:

Done,31dB @ 1dB/ Step

ALC Intelligent Function:

Done

MGC:

Done

In-band Ripple:

≤ 3dB

VSWR:

<=2

Noise Figure:

≤ 5dB

System Delay:

≤ 5μs

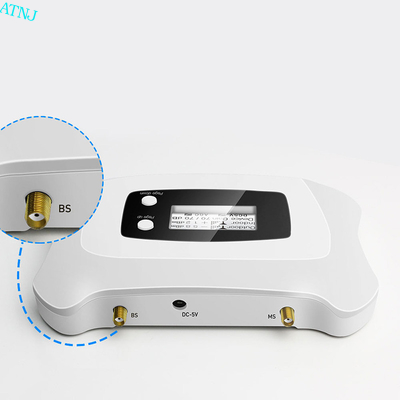

RF Connect Type:

SMA/Female Connector

Power Supply:

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)

Inter-Modulation Attenuation ACPR:

≤ -40dBc / 30kHz (measured Under Rated Output Power)

Weight:

1.85kg

Packing Size:

54x19x16cm

Packaging Details:

Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Supply Ability:

1000+unit+per day.

Highlight:

700MHz Mobile Signal Booster

ROHS LTE Mobile Signal Booster

LTE 700MHz Mobile Signal Booster

Product Description

LTE 700MHz Mobile Signal Booster

Product Specifications

Attribute	Value
Frequency Range	Uplink: 703-748MHz, Downlink: 758-803MHz
Gain	70dB, UL Gp≥68, DL Gp≥70
Output Power	17-20dBm
Color Options	White, Blue, Customized
AGC Intelligent Function	31dB @ 1dB/Step
ALC Intelligent Function	Included
MGC	Included
In-band Ripple	≤ 3dB
VSWR	≤ 2
Noise Figure	≤ 5dB
System Delay	≤ 5μs
RF Connection Type	SMA/Female Connector
Power Supply	AC 110~220V±20%, 50/60Hz (AC 220V/ DC5V/2A power adapter)
Inter-Modulation Attenuation ACPR	≤ -40dBc / 30kHz (measured under rated output power)
Weight	1.85kg
Packing Size	54×19×16cm
