850MHz CDMA Signal Repeater Booster 70dBi Gain 2G 3G Cellular

850MHz CDMA Signal Repeater Booster 70dBi Gain 2G 3G Cellular

Brand Name:	ATNJ
Model Number:	AS-C4
MOQ:	5Pcs
Price:	USD+40---49+kit
Payment Terms:	T/T,Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Document:

Single band CDMA 850MHz RF ...er.pdf

Frequency Range:

824-849MHz/869-894MHz

Booster Gain:

70dBi

Booster Output:

17-20dBm

Color For Choice:

White,Blue,Customized

AGC Intelligent Function:

Done,31dB @ 1dB/ Step

RF Connect Type:

SMA/Female Connector

Power Supply:

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)

Inter-Modulation Attenuation ACPR:

≤ -40dBc / 30kHz (measured Under Rated Output Power)

Packing Size:

54x19x16cm

Products Type:

GSM Repeater, Cellular 850mhz Booster

Packaging Details:

Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Supply Ability:

1000+unit+per day.

Highlight:

850MHz Signal Repeater Booster

CDMA Signal Repeater Booster

CE Cellular Signal Booster

Product Description

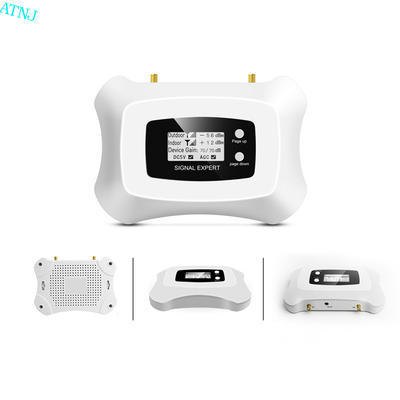

850MHz CDMA Signal Repeater Booster, 2G 3G Cellular Signal Booster

Product Attributes

Attribute	Value
Frequency Range	824-849MHz/869-894MHz
Booster Gain	70dBi
Booster Output	17-20dBm
Color For Choice	White, Blue, Customized
AGC Intelligent function	Done, 31dB @ 1dB/ Step
RF Connect Type	SMA/Female Connector
Power Supply	AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Inter-Modulation Attenuation ACPR	≤ -40dBc / 30kHz (measured under rated output power)
Packing size	54x19x16cm
Products type	GSM repeater, cellular 850mhz booster

Product Description

ATNJ RF repeater with industrial design combines multiple mobile network signals to improve mobile voice and data communication, providing a cost-effective signal solution. The repeater is easy to install and maintain, offering fast deployment for signal providers.

Key Features

Intelligent installation guidance with LCD display
Real-time signal strength display
Automatic dormancy when no calls are active
Automatic alarm for installation errors with solutions
Automatic system gain adjustment to prevent self-excitation
Damage detection with proactive alerts
Supports bandwidth adjustment from 0.2 to 20MHz (Customizable)
Supports 5G bandwidth options: 40MHz to 100MHz (Customizable)
Optional WIFI Monitor+Control and Network Management System

Technical Specifications

Parameter	Value
Frequency Range	CDMA 850MHz (824-849MHz/869-894MHz)
Bandwidth	CDMA 850MHz: 25MHz
Gain	70dB
Automatic Gain Control	31dB
MGC (Step Attenuation)	20dB @ 1dB/Step
Output Power	17±3
Spurious Emission	9 kHz -150 kHz/1kHz: ≤-36dBm 150 kHz - 30 MHz/10kHz: ≤-36dBm 30 MHz - 1 GHz/100kHz: ≤-36dBm 1 GHz- 12.75 GHz/1MHz: ≤-30dBm
ACPR	Uplink/Downlink fully comply with 3GPP 36.106
Unwanted emissions	Fully comply with 3GPP 36.106
VSWR	≤2
Ripple	CDMA 850MHz: ≤3dB
Noise Figure	≤5dB
Delay	≤1μs
I/O Impedance	50Ω
RF Connector	SMA-Type (Female)
Operating Temperature	-25°C to +55°C
Power Supply	DC 5V
Power consumption	≤0.2W
Environment Conditions	IP43
Humidity	≤90%
Weight	0.3kg
Size	17312335 (mm)

Download Full Product Specification (PDF)

ATNJ Strength & Service

Highly qualified communication technology engineers: ATNJ's team includes engineers with over ten years of experience in the communication industry, specializing in signal booster R&D, design, testing, and production to ensure compliance with international standards.

Satisfactory after-sales service: ATNJ provides a 3-year warranty for main signal repeaters and 3-month warranty for accessories. During warranty, free repair services are provided (customer pays freight only). Within one month of receipt, ATNJ covers all non-human damage faults.

Frequently Asked Questions

Q1: What are ATNJ's main products?

A1: ATNJ specializes in manufacturing communication products including repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.

Q2: Are you a trading company or manufacturer? Can we use our own logo?

A2: We are a factory with trading services, offering OEM/ODM services including custom logos and labels.

Q3: Do you accept custom orders?

A3: Yes, we welcome OEM & ODM projects.

Q4: Do you accept small orders?

A4: Yes, small orders are available.

Q5: Do you provide OEM/ODM services?

A5: Yes, we support customized products and can apply your logo.

Q6: How is my transaction protected?

A6: Transactions are secured by Alibaba Trade Assurance, covering payment, product quality, and shipping protection for 30 days after receipt.
