ATNJ Hot Sale LCD Display yagi antenna AWS 1700Mhz mobile phone signal booster

Model NO.: AS-AWS3
  • Frequency:1710-1755mhz, 2110-2155mhz
  • Gain:65-70dB
  • AGC:30
  • Max. Output power:15~27dBM
  • Coverage:300sqm
  • Weight:Approx 1.9kg
  • Size:165*115*35mm
  • Application:Home,office, apartments,basement,shopping mall, parking ...ect.
  • Material:ABS Plastic
  • Warranty:3 Years
  • Place of Origin:CN;GUA
  • Model Number:AS-AWS3
  • Type:4G mobile signal booster, signal repeater
  • Brand Name:ATNJ

ATNJ one set AWS 1700Mhz mobile cell phone signal repeater

Signal Booster Technical Specifications

SPECIFICATIONS

parameters

Frequency Range (Customers to Choose)

Uplink

1710-1755Mhz

Downlink

2110-2155Mhz

Frequency Bandwidth (3dB Bandwidth)

45Mhz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA (Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Signal Booster Product Description

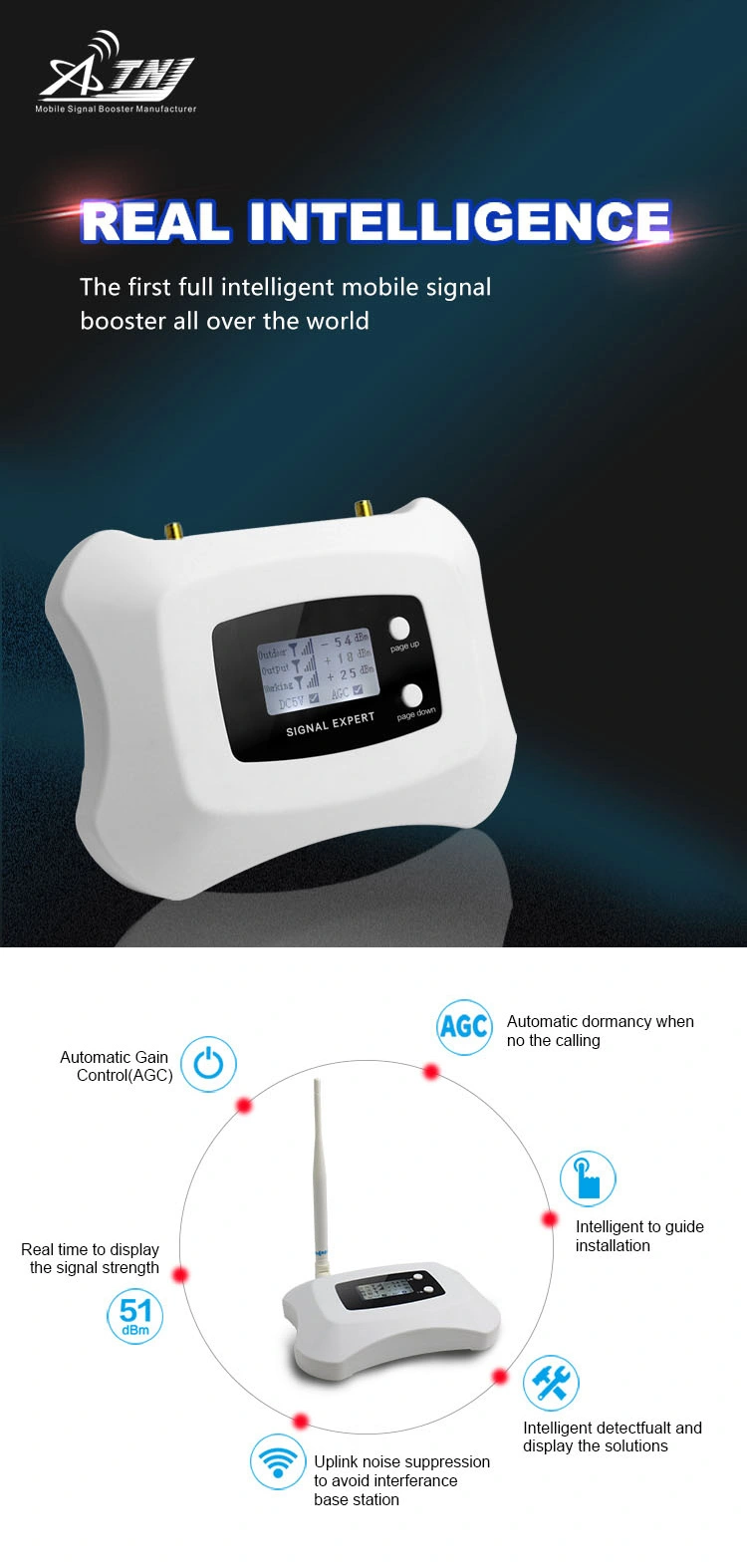

mobile signal booster Advantages

Full smart to display all the parameters of the system. Automatic to detect the faults of the device and provide the corresponding solution.

Automatic to shut down the power supply of the screen when operation on it.

Automatic detect the distance between receive antenna and relay antenna,avoide device autoexcitation.

Automatic to adjust the system gain, the adjustment range up to 55dB.

High speed digital ALC system.

LCD screen display input/output real signal strength.

Automatic dormancy when no user make the calling, once detected the user make the calling, the device will automatic switch to working status immediately.

Uplink automatic shut off when the device detected self-excitation.

Uplink noise elimination. Avoid to interference base station.

Small size,light weight, good looking. high gain, low power loss.

Intelligent to guid the installation, and provide the easiest and simplest solution.


Company Information


Signal Booster Packaging & Shipping

1. Signal Booster 1x

2.Outdoor antenna 1x

3.Indoor antenna 1x

4.Power adapter 1x

5.16 meter coxial cable 1x

6. User manual
